6000-Series Super Tugger Cable Pullers
Greenlee Tools, Inc. 27 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Inspecting the Chains and Ratchet Pawl
(every 40 hours)
1.
Remove the right outer guard (71), left outer guard (4),
and right guard (64).
2. Remove the connecting link (66) and #40 chain (65).
3. Remove the capstan retaining screws (2). Remove
the lubricating screw (5) and washers (6-9). Remove
capstan unit (10-19). Remove connecting link (21)
and #60 chain (20).
4. Clean the chains thoroughly with solvent.
5.

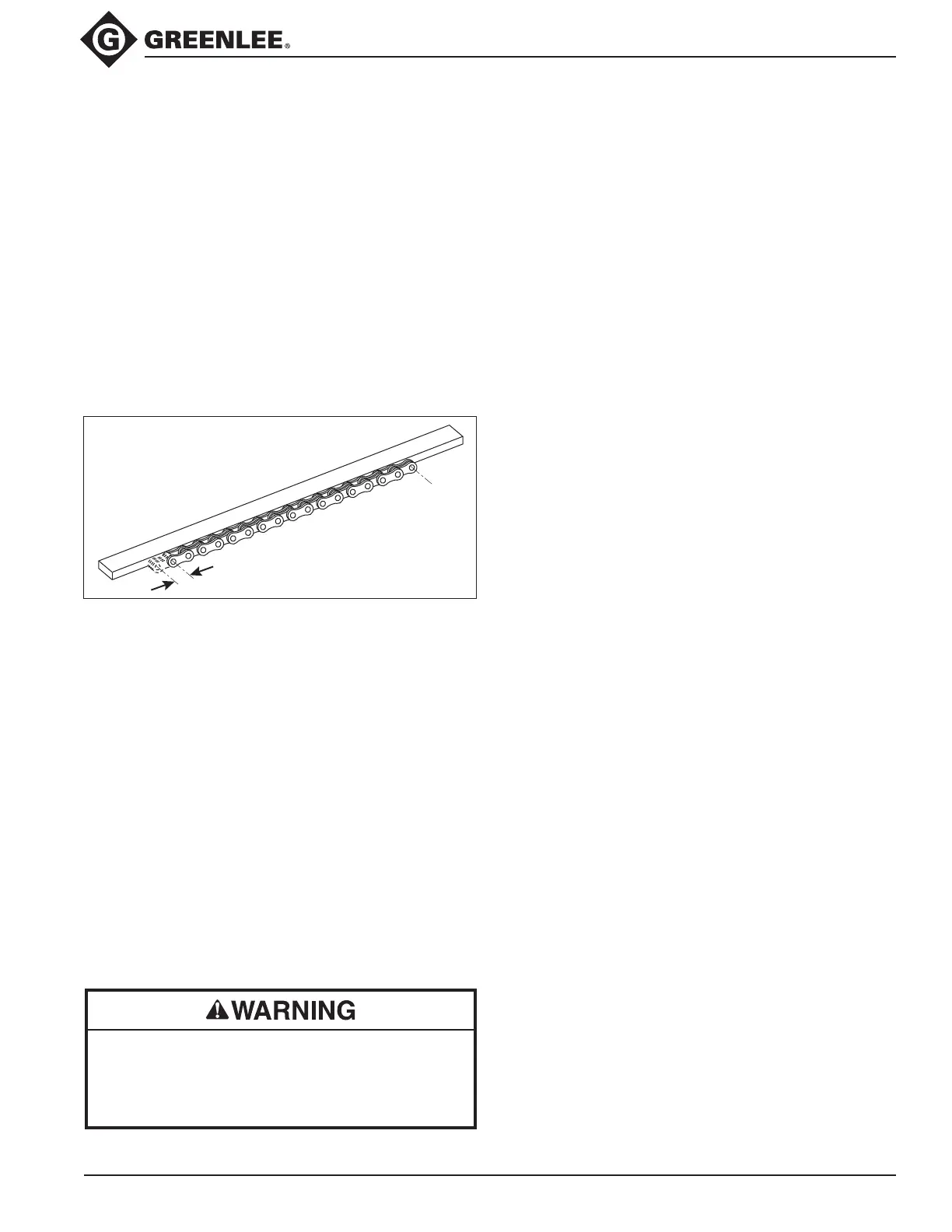

Lay the chains against a straightedge. Slide on
end of the chain back and forth to check free play.
See illustration below. If free play is more than 3/8",
replace the chain. Replace the chain if any links bind.
Maintenance (cont’d)
Inspecting the Commutator Brushes
(every 40 hours)
1. Remove two brush caps (121). Remove two brushes
(116).
2. Measure the brushes. Replace both brushes if either
brush is less than 3/8" long.
6. Lubricate the chains with 80W-90W gear oil.
7. Remove the ratchet pawl (56) and compression
spring (57). Apply multipurpose NLGI Grade
2 grease (such as Mobilgrease
®
HP or Amoco
Permalub) to all working surfaces. Replace the
spring and pawl.
8. Assemble the #40 chain (65).
Note: Install the clip of the connecting link so that
the closed end of the clip faces the direction of
chain travel, as shown in the Exploded View.
9. Loosen, but do not remove, the four nuts (54) that
secure the motor. Push the motor away from the #40
sprocket (72) to put tension on the chain. Tighten the
nuts (54) to 10.8 Newton-meters (8 ft-lb).
10. Assemble in reverse order.
11. Plug the puller in and turn the puller ON. Listen for
the clicking noise of the anti-reversing mechanism
(ratchet pawl and compression spring). If you do not
hear this clicking noise, inspect and repair the puller.
Do not operate puller if the anti-reverse mechanism
is not working.
Failure to observe this warning can result in severe
injury or death.
FREE PLAY
