6000-Series Super Tugger Cable Pullers
Greenlee Tools, Inc. 43 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

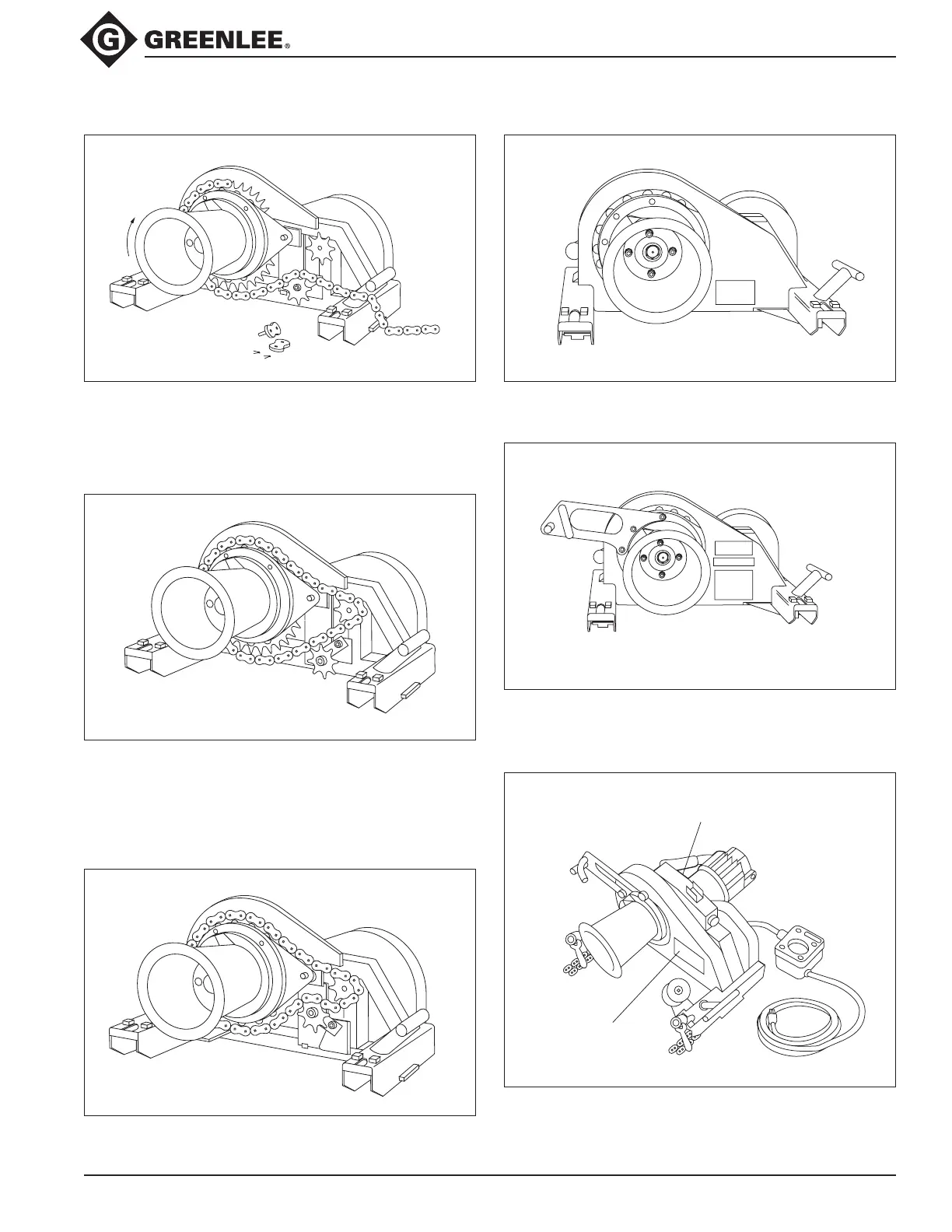

8. Replace the chain guard.
9. Attach the new capstan arm (1) to the ramp (13) with
the three cap screws (2) and washers (3).
5. Place the four ber washers onto the capstan shaft.
Install the new capstan unit (5) so that the anti-
rotation support unit engages the hole in the anti-
rotation plate. Install the capstan bolt.
6. Feed the chain onto the bottom side of the sprocket
while turning the sprocket clockwise. Install the
new connecting link (5). So that the open end of the
connecting link faces away from the direction of the
chain travel.
Installation Instructions (cont’d)
7. Slide the idler arm up until the chain is snug. Tighten
the idler arm bolt.
10. Afx the new decals to the puller.
Rope Path Decal
Mounting Decal
