Greenlee 38456 - Page 9

Hydraulic Punch Driver
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
9

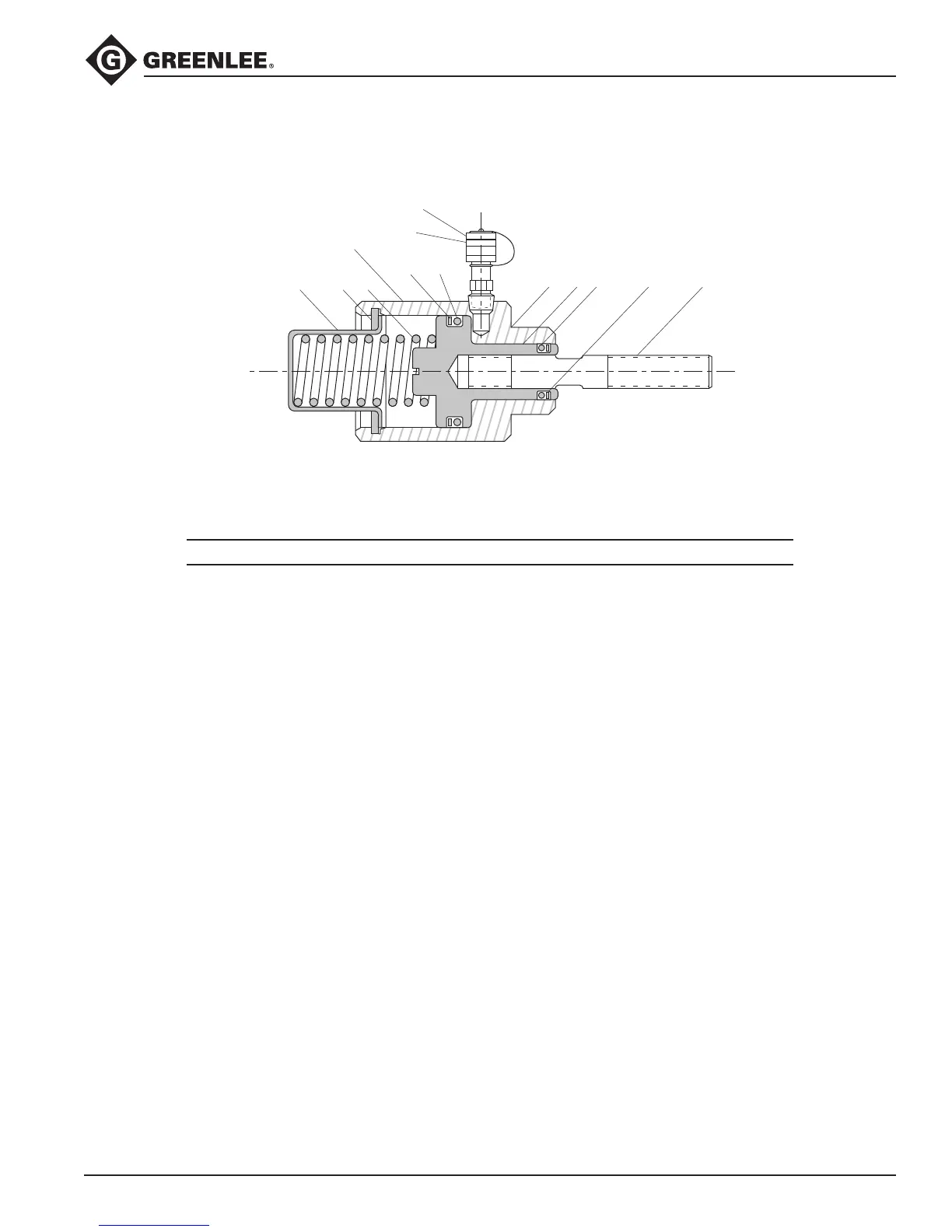

Illustration and Parts List—Ram
7
6
11
45
3 2 8 12 1
10
Serial No.
Location
9
Key Part No. Description Qty
1* 52045040 Shaft (746 M-3) ......................................................................................... 1
50294520 Shaft (746 SS) ........................................................................................... 1
2** 50170937 Piston ........................................................................................................ 1
3 50170953 Cylinder ..................................................................................................... 1
4 50112511 Spring, Compression ................................................................................ 1
5 50112538 Retainer ..................................................................................................... 1
6 90541677 Coupler, 1/4" Quick Disconnect ................................................................ 1
7 90541685 Plug, Protective ......................................................................................... 1
8 90503384 O-ring, 7/8" x 1-1/8" x 1/8" ....................................................................... 1
9 90503899 O-ring, 2" x 2-3/8" x 3/16" ........................................................................ 1
10 90503902 Ring, Retainer ........................................................................................... 2
11 90508327 Ring, 2" x 2-3/8" x 3/16" Spiral Backup ................................................... 1
12 90513398 Ring, 7/8" x 1-1/8" x 1/8" Spiral Backup .................................................. 1
50145525 Packing Repair Kit (includes items 8, 9, 11, and 12) ................................ 1
50121219 Decal, Safety (not shown) ......................................................................... 1
* 52045041 Supplied with the 746 and used with standard punches
and Slug-Buster punches
** 50294520 Supplied with the 746 SS and used with Slug-Splitter
punches and dies
