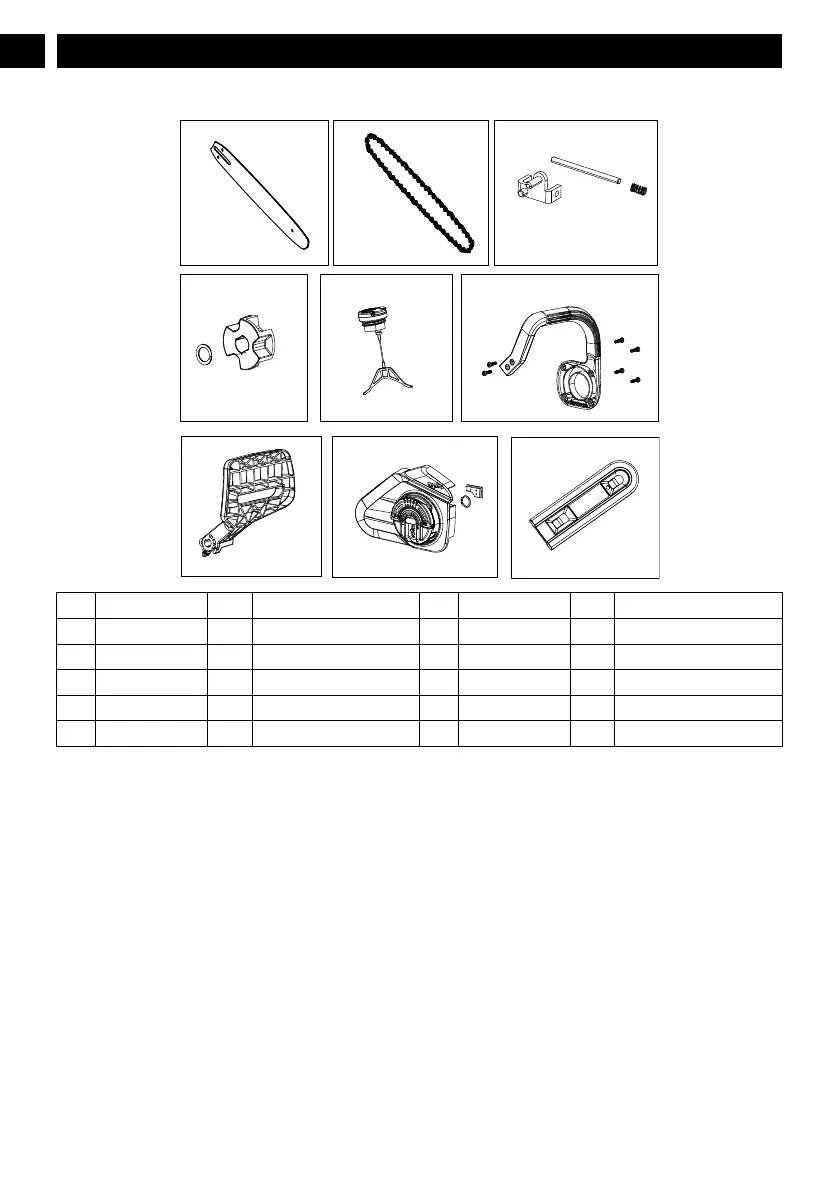

15 EXPLODED VIEW
1
3
4 5
2
6
7
9
8
No. Part No. Qty Description No. Part No. Qty Description
1 R0201901-00 1 Bar 6 R0201903-00 1 Auxiliary Handle Kit
2 R0201900-00 1 Chain 7 R0201904-00 1 Hand Guard
3 R0202276-00 1 Tensioner Kit 8 R0201905-00 1 Side Cover Assembly
4 R0200049-00 1 Sprocket Kit 9 R0200948-00 1 Scabbard
5 R0200303-00 1 Oil Cap Assembly
