GreenWorks BAF721 - Assemble as a Blower; Assemble as a Mulcher

WARNING
• If the parts have damage, do not use the machine.
• If you do not have all the parts, do not operate the
machine.
• If the parts are damaged or missing, speak to the
service center.
1. Open the package.
2. Read the documentation in the box.
3. Remove all the unassembled parts from the box.
4. Remove the machine from the box.
5. Discard the box and package in compliance with
local regulations.

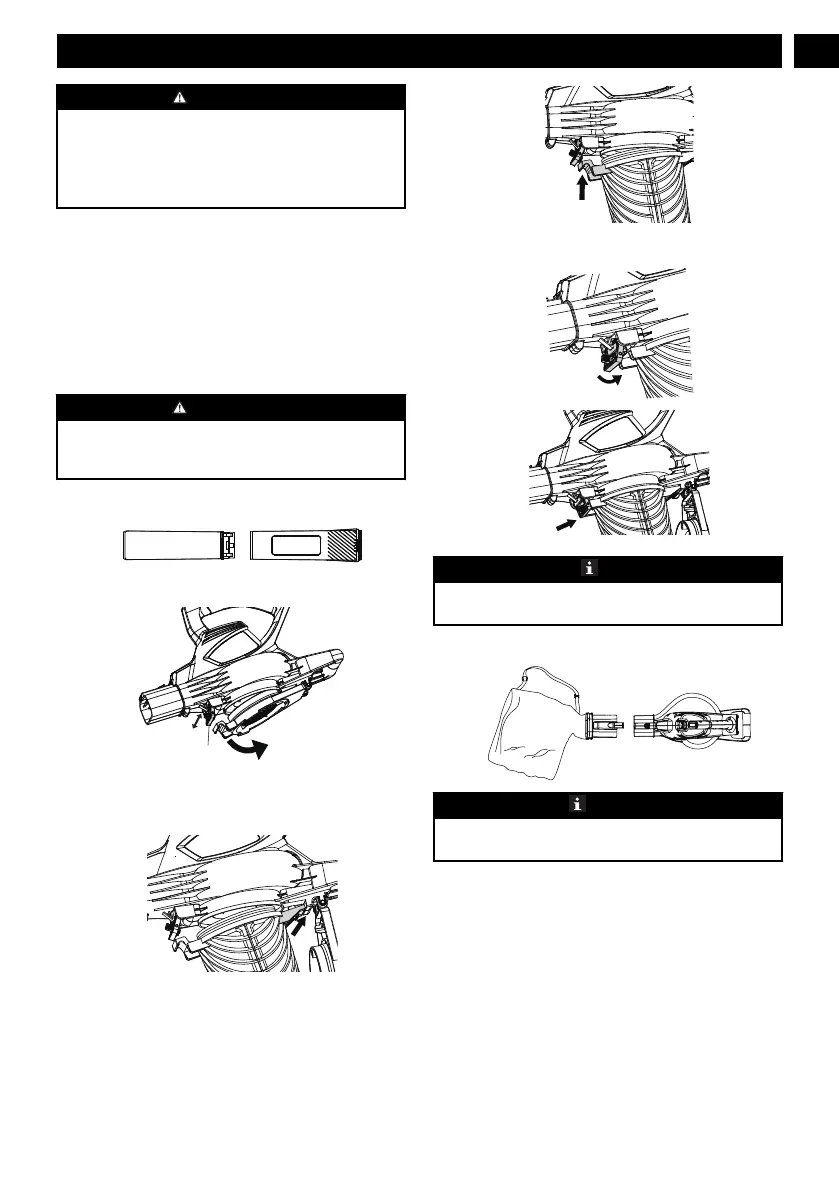

10.2 ASSEMBLE AS A MULCHER
WARNING
Make sure that the machine is in the OFF position,
and the impellers stop before you attach or remove
tubes.
1. Move the front and rear mulcher tubes together until
the lock button engages.
2. Pull the lock button (10) forward to disengage the
gate.
ķ
10
3. Hold the gate open.
4. Put the "wedged" end clip of the mulcher tube into
the rear clip.
ĸ
5. Push the "hooked" end clip of the mulcher tube into
the front clip.
Ĺ
6. Push back the lock button to engage the mulcher
tubes.
ĺ
Ļ
TIP
You can do the steps above in the opposite sequence
to remove the mulcher tubes.
7. Put the bag adaptor into the blower outlet. Lock the
bag adaptor with the lock button.
NOTE
It can be necessary to remove the blower tube or
mulcher tubes to clean a blocked tube or impeller.
10.3 ASSEMBLE AS A BLOWER
1. Move the blower tube (4) forward until the notched
area (11) clicks into the slot (12).
2. Put the concentrator nozzle (5) into the blower tube
to lock.
7
