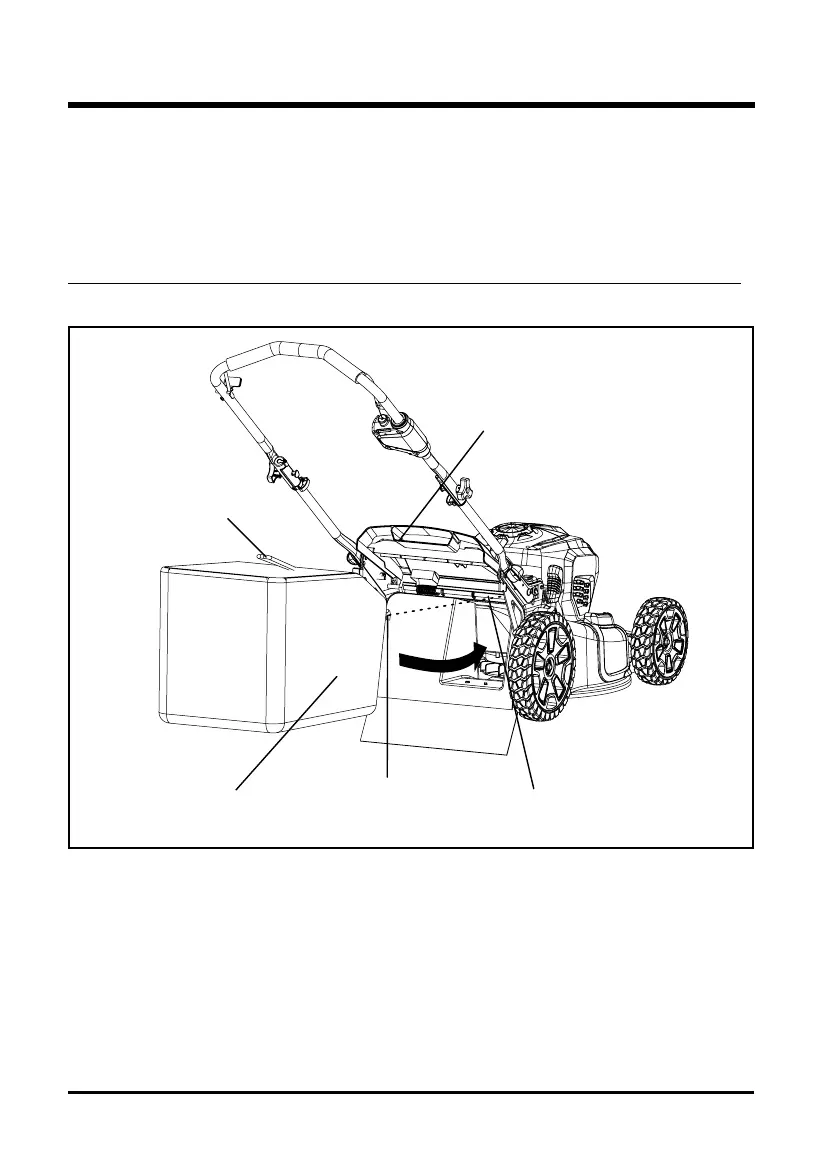

INSTALLING THE GRASS CATCHER BAG (See Figure 4)
• Lift the rear discharge door (1).
• Lift the grass catcher by its handle (2) and place under the rear discharge door so that the
hooks (3) on the grass catcher (4) are seated on the door rod (5).
• Release the rear discharge door. When installed correctly, the hooks on the grass catcher will
extend through the openings on the rear discharge door.
NOTE: When using the grass catcher, do not install either the side discharge deector or the mulching plug.
ASSEMBLY INSTRUCTIONS
Fig. 4
(1) Rear discharge door
(5) Door rod
(2) Handle
(3) Hooks
(4) Grass Catcher
