Greiff TFEB 240 - Assembly Step 2: Suction Chamber; Filter Pillar and Frame Assembly

MonteringsanvisningMB/TF/TFE/TFB/TFEB Motala2016‐09‐15
AssemblyinstructionMB/TF/TFE/TFB/TFEB
 GreiffIndustrimiljöAB
Dynamovägen17
SE‐59161Motala
 6 
Monteringsteg2
Assemblystep2

Fortsättbyggaihopsugkammaren. Skruvasedanfaststolparsamtövrigaprofilertillfilterhållarna
enligtbildernedan.Omboxenärbredareän2,4mtillkommerenstolpeförvarjeskarv.
Keepassemblingthesuctionchamber.Thenassemblethefilterpillarstothesidewallsfollowedby
therestofthefilterframe
parts.Ifthesprayboothiswiderthan2,4mthenanotherpillarinbetween
becomesnecessary.











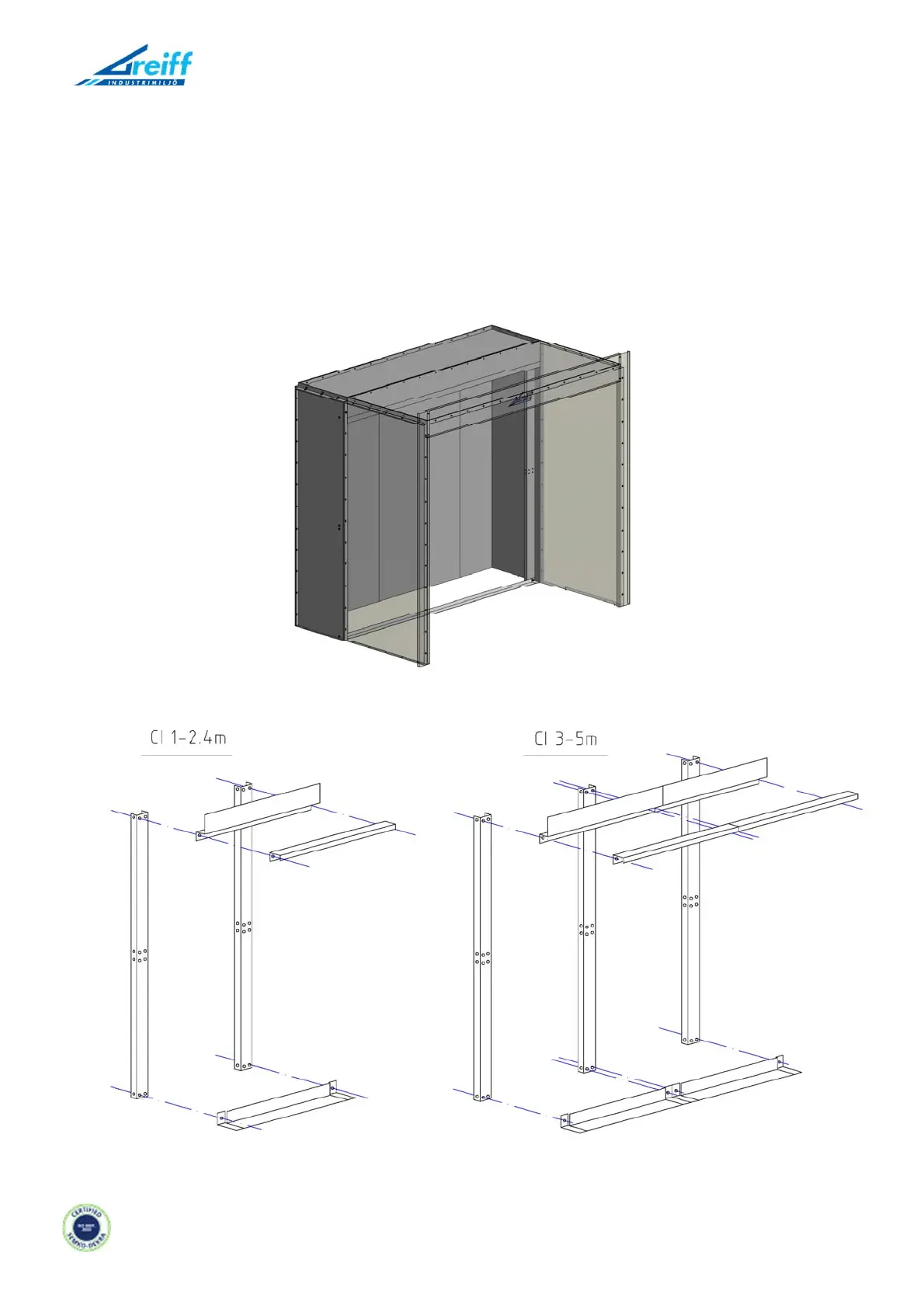

Figure17 












 Figure18   Figure19 

