Grifco eDrive +2.0 Supplementary Installation Manual

4

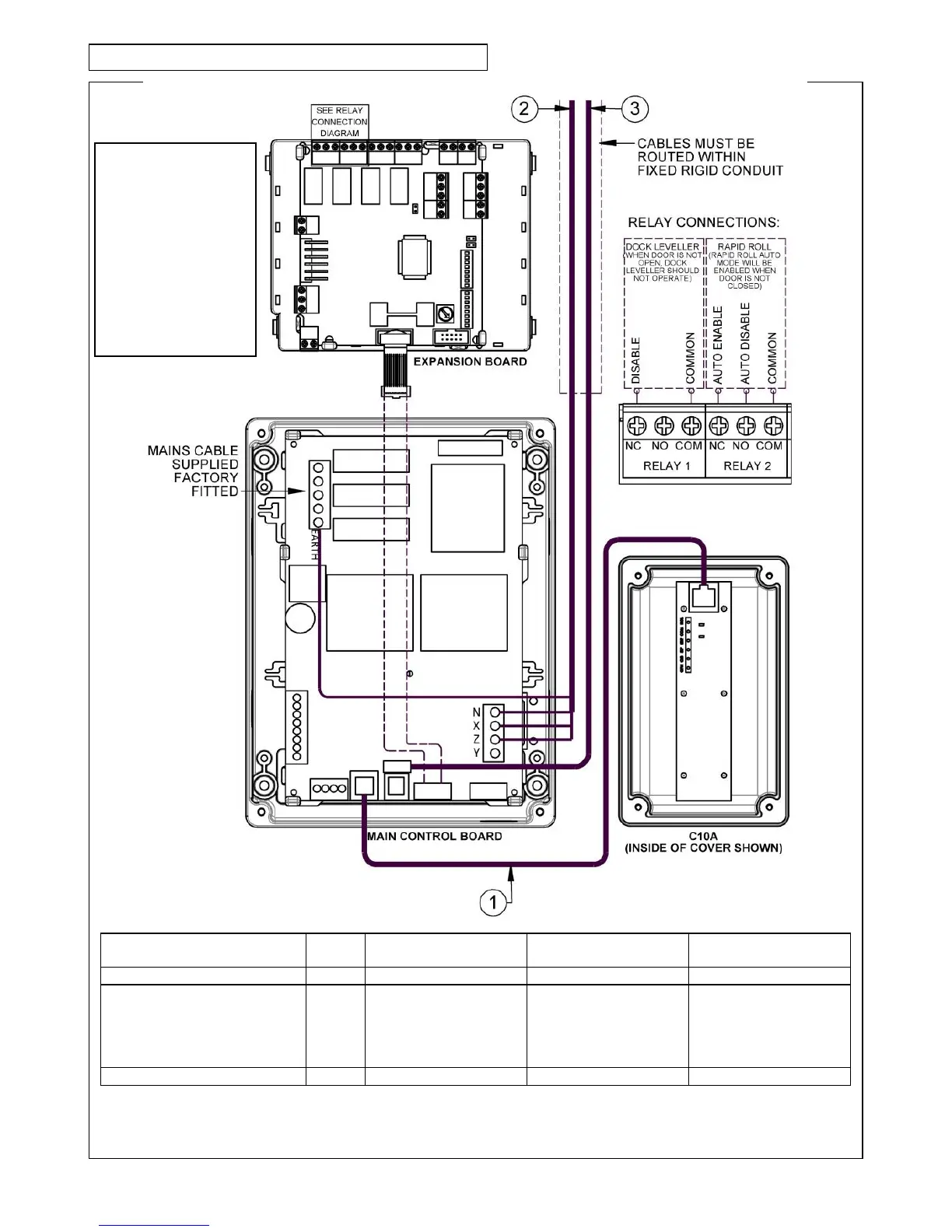

INSTALLATION – ELECTRICAL CONNECTIONS
Cable Number
Relay
Expansion Board (EB1)
Main Control Board
(MCB)
C10A
1 (RJ6 cable supplied)
-
-
Ethernet connector
Ethernet connector
2 (Motor power cable, supplied)
-
-
N: BLUE
X: BROWN
Z: WHITE
Y: NOT CONNECTED
EARTH: YELLOW/GREEN
-
3 (APE cable, supplied)
-
-
APE3
-
© 2015 The Chamberlain Group, Inc
EXPANSION BOARD
INSTALLATION:
Refer to Expansion
Board manual for
mounting instructions.
DIP SWITCH SETTINGS:
Factory setting: Dip
Switch #2 to ON, set all
others to OFF
