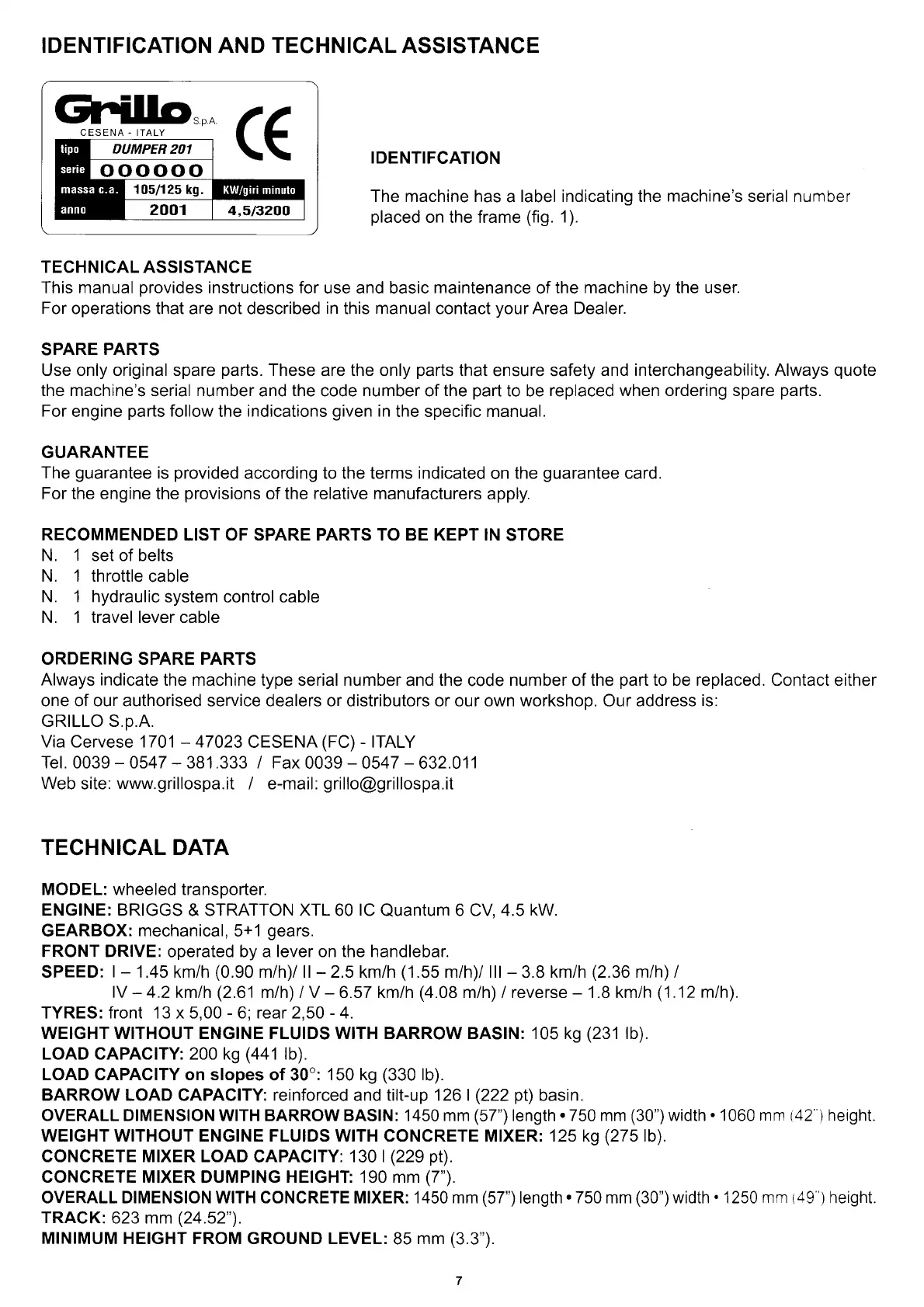

I DENTIFICATION AN D TECHN ICAL ASSISTANCE
Gl.illo,,.
((
oooooo
IDENTIFCATION
The machine has
a
label indicating the
machine's
serial number
placed
on the frame
(fig.
1).
TECHNICAL ASSISTANCE
This manual
provides
instructions for
use and basic
maintenance
of
the machine by the user.
For
operations that are
not
described
in
this manual contact
your
Area Dealer.
SPARE
PARTS
Use only original spare
parts.
These
are
the
only
parts
that
ensure safety
and interchangeability. Always
quote
the machine's
serial
number
and
the
code
number
of
the
part
to be
replaced when ordering spare
parts.
For
engine
parts
follow
the
indications
given
in
the specific manual.
GUARANTEE
The
guarantee
is
provided
according to the terms indicated
on
the
guarantee
card.
For the engine the
provisions
of
the relative manufacturers
apply.
RECOMMENDED LIST OF SPARE PARTS TO BE KEPT IN
STORE
N.
1
set of belts
N. 1 throttle
cable
N. t hydraulic
system control cable
N. I travel lever cable
ORDERING SPARE PARTS
Always indicate
the machine type serial number and the
code
number
of
the
part
to be replaced. Contact either
one of our authorised service dealers or distributors or our own workshop. Our address
is:
GRILLO S.o.A.
Via Cervese 1701
-
47023
CESENA
(FC)
-
ITALY
Tel. 0039
-
0547
-
381.333 / Fax
0039
-
0547
-
632.011
Web
site:
www.grillospa.it
/ e-mail:
grillo@grillospa.it
TECHNICAL DATA
MODEL: wheeled transporter.
ENGINE: BRIGGS
& STRATTON
XTL
60
lC
Quantum
6 CV, 4.5
kW.
GEARBOX:
mechanical,
5+1
gears.
FRONT DRIVE: operated by a lever on the handlebar.
SPEED:
|
-
1.45 km/h
(0.90
m/h)/ ll
-
2.5 km/h
(1.55
mih)/ lll
-
3.8
km/h
(2.36
m/h) /
lV
-
4.2
kmlh
(2.61
mlh) | V
-
6.57 kmih
(4.08
m/h)
/
reverse
-
1.8 km/h
(1.12
mlh).
TYRES: front 13 x 5,00
-
6; rear 2,50
-
4.
WEIGHT WITHOUT ENGINE FLUIDS WITH BARROW BASIN:
'105
kg
(231
lb).
LOAD CAPACITY: 200 kg
(441
lb).
LOAD CAPACITY on slopes
of 30o:
150 kg
(330
lb).
BARROW LOAD
CAPACITY:
reinforced
and
tilt-up 126 |
(222
pt)
basin.
OVERALL DIMENSION WITH BARROW BASIN: 1450 mm
(57")
length.750 mm
(30")width.
1060
mm
(42')
height.
WE|GHT WITHOUT ENGINE FLUIDS WITH CONCRETE MIXER: 125 kg
(275lb).
CONCRETE MIXER LOAD
CAPACITY:
130 |
(229
pt).
CONCRETE MIXER DUMPING HEIGHT:
'190
mm
(7").
OVERALL DIMENSION WITH CONCRETE MIXER:
'1450
mm
(57")length.750
mm
(30")width
.1250
mm
i49
)
height.
TRACK:
623 mm
(24.52").
MINIMUM HEIGHT FROM GROUND LEVEL:
85
mm
(3.3").
