0.4 - GUARDS

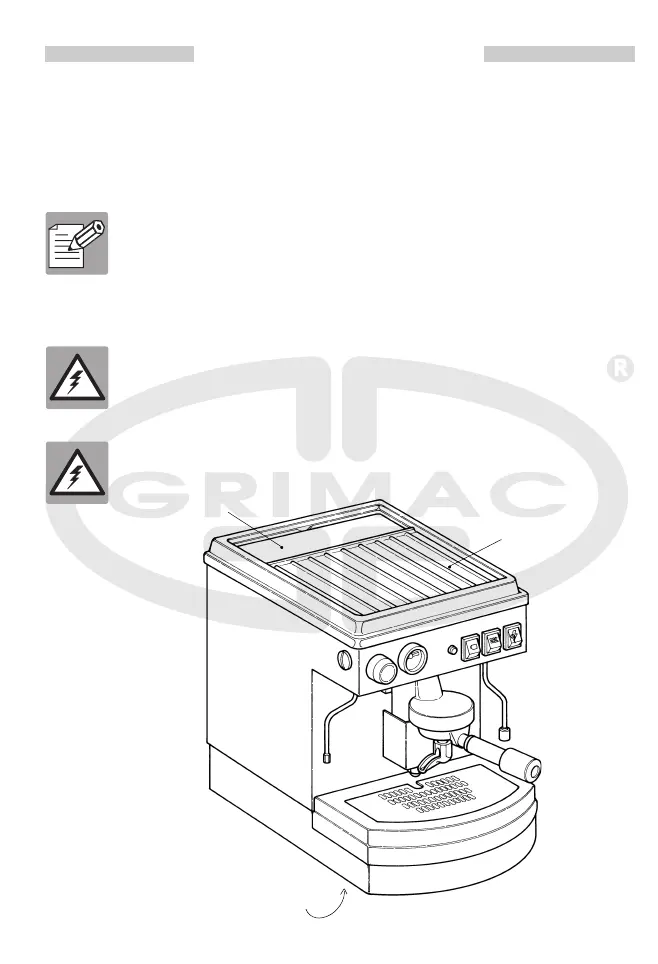

The MINIGRIMAC component parts are housed inside a series of covers
or guards that isolate them from any contact with the outside and the
person using the machine.
A - Removable top guard: protects the tank containing the water supply
(MINIGRIMAC - Tank). It is not fixed by screws and is removed in
order to supply the machine with water.
In the MINIGRIMAC - Mains Supply model there is no tank under the
guard but a pressure adjuster that has been calibrated by GRIMAC
s.r.l. during testing.
B - Fixed top guard: must be removed ONLY by competent and
authorised service staff. It contains the machine’s vital working parts.
This guard can be used as a flat service on which to place cups and
saucers.
C - Bottom guard: must never be removed (ONLY by competent and
authorised service staff).
SECTION 0 - INTRODUCTION
B
A
C
