DESCRIPTION
TOOL PARTS

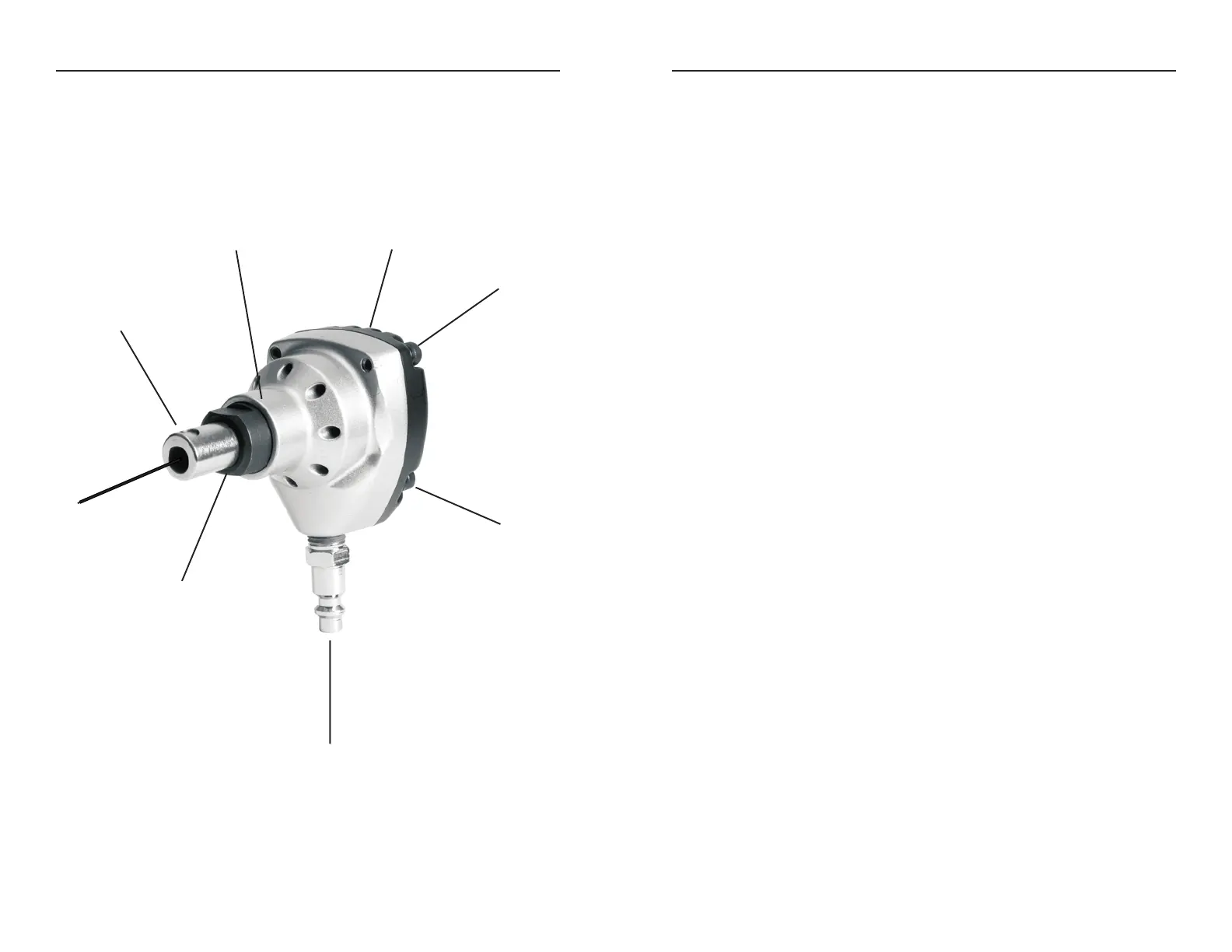

PART DESCRIPTIONS
1. Nail Guide - Narrow profile design permits accurate nail placement.
2. Tool Body - Contains nail driver parts and acts as a handgrip.
3. Tool Cap - Covers nail driver assembly.
4. Cap Screw - Secures cap to tool body
5. Air Coupling - Quick-disconnect male coupling allows quick
connection to air hose.
6. Guide Box - Secures Nail Guide.
7. Magnetic Nail Holder - Helps keep nail in place while positioning
nailer for driving.
Metric Hex Wrench - Included with tool to allow tightening of metric
screws. Keep tools in tool case for periodic tightening of screws.
Air Tool Oil - Lightweight oil formulated for use in air tools provides
proper lubrication to o-rings and internal parts.
DESCRIPTION
1
2
4
3
5
6
4
7
