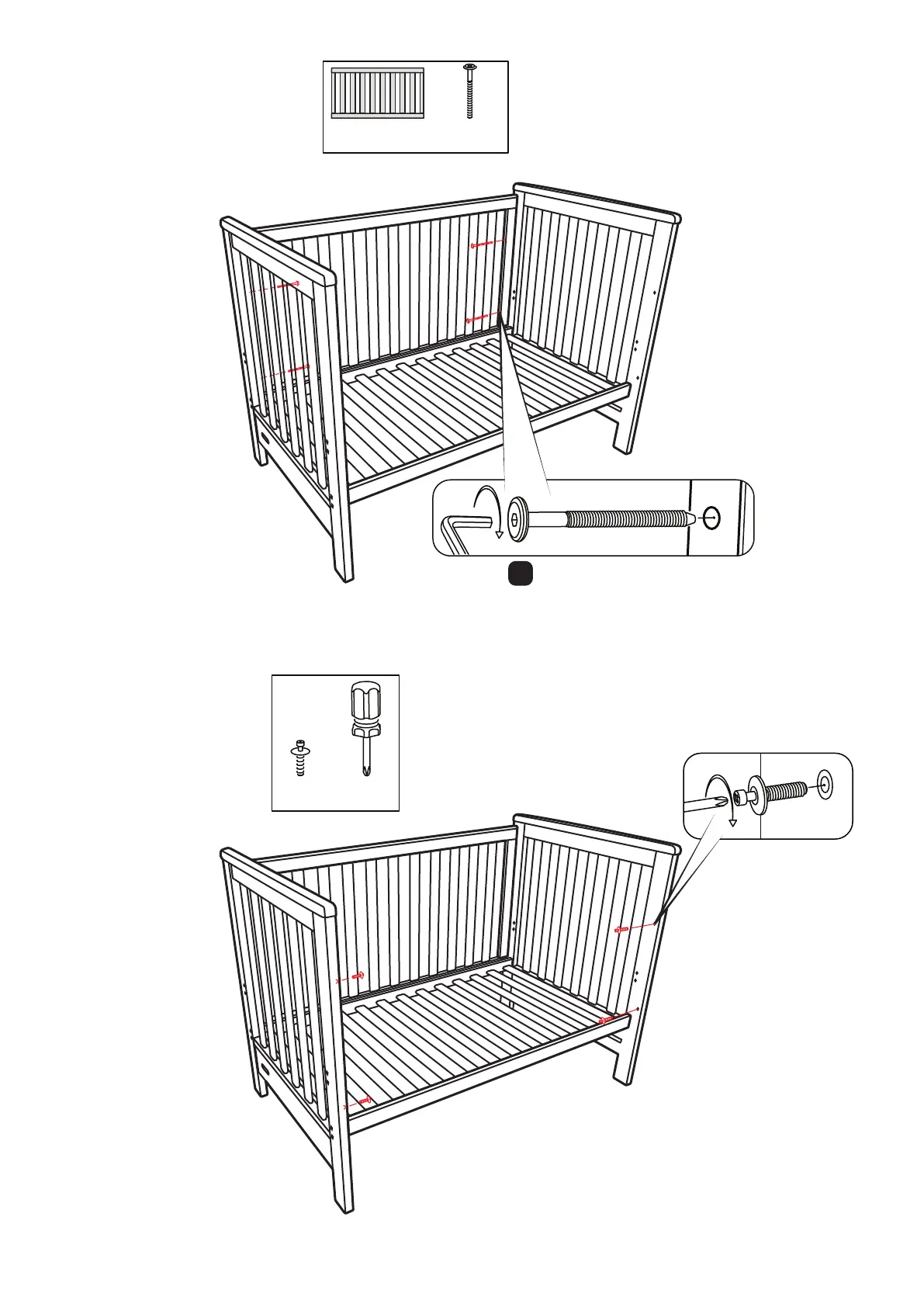

STEP 3
ASSEMBLE FIXED SIDE TO ENDS
SCREW FOUR GUIDE PINS
INTO ENDS FIRMLY
STEP 4
4
Do not tighten bolts at this stage
!
x4
Guide Pins
HC
Screw Driver
x1
Fixed Side
PA
x4
70mm Bolts
HB
