7
Turning on the amplifier
The amplifier automatically turns on a few seconds after you turn on your radio.
Note: Your amplifier temporarily shuts down if it gets too hot, then restarts automatically once it cools
(At about 80° / 176° F).
Adjusting the audio level
1. LEVEL (Min/Max): Turn fully counter- clockwise to MIN position
2. Turn the auto sound system's volume control to about two-third of its full range.
3. Adjust LEVEL to a comfortable listening level.
Connecting the speaker for trimode operation - notes
TRI MODE operation output allows a subwoofer to be operated in mono mode while the main speakers are
playing in stereo. Leave the crossover switch on “Full” position.
Use 100 volt, non-polar capacitors for a high pass crossover to filter out low frequencies and Air- core or
Ferrit- ore coils with a minimum diameter of 1 mm / 0.039” for the lowpass crossover to filter out high
frequencies.
The capacitor and inductor values as written in the below table. The front and rear channels of this amplifier get
this capability. Only the rear left and right channels are shown on the following pictures.
Values for 6dB passive crossover
Frequency Inductor Capacitor
80 Hz 7,5 mH 470 uF
100 Hz 6,5 mH 330 uF
120 Hz 5,5 mH 370 uF
150 Hz 4 mH 220 uF
8

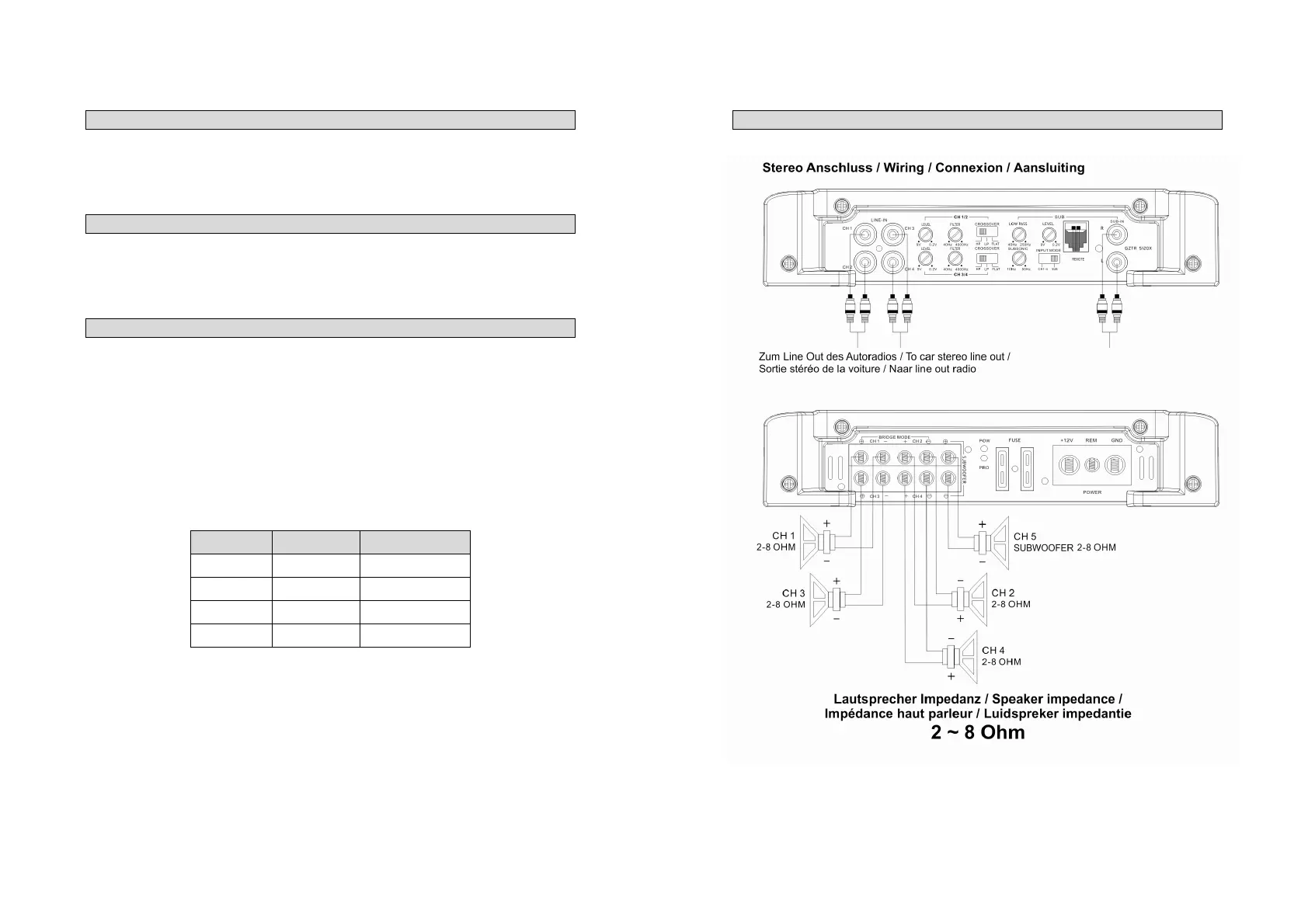

Stereo wiring – GZTA 5120X
