Grove Crane RT760 - Dimensions

RT760
2

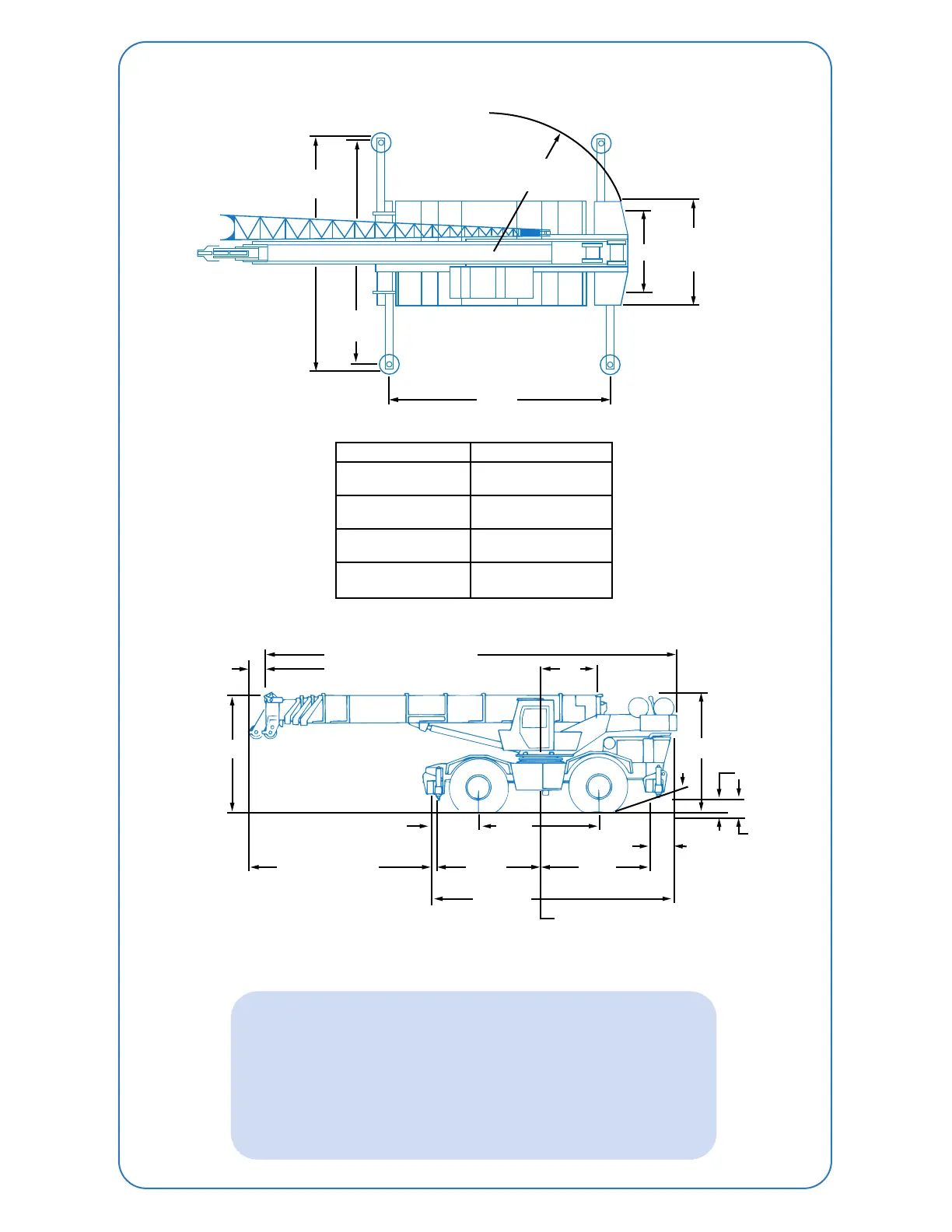

Dimensions
Turning Radius. . . . . . . . . . . . 23' 4” (7100 mm)
Front Axle Load . . . . . . . . . . . 45,805 lbs. (20 777 kg)
Rear Axle Load. . . . . . . . . . . . 45,080 lbs. (20 448 kg)
Gross Vehicle Weight . . . . . . . 90,885 lbs. (41 225 kg)
25'
(7620)
23'
(7010)
A
OAW
10' 11"
(3327)
TAILSWING
14' 1-1/2" (4305)
22' 11"
(6985)
1' 3-1/2"
(394)
1' 9"
(533)
1' 9"
(533)
11°
9°
1' 1/2"
(343)
1' 10-1/4"
(565)
C
44' 9" (13 639) 4 Sec. Boom
43' 5" (13 233) 3 Sec. Boom
5' 9"
(1753)
B
C ROTATION
L
11' 8"
(3556)
25' 9-5/8"
(7864)
11' 3"
(3429)
17' 1" (5079) 3 Sec.
18' 5" (5613) 4 Sec.
12' 6"
(3810)
A (TRACK)
C
GROUND 
CLEARANCE
29.5 x 25
8' 2-1/2"
(2502)
12' 5"
(3785)
12' 9"
(3886)
1' 6-1/2"
(470)
TIRE SIZE
B (OAH)
Note: ( ) Dimensions are in mm.
