grow 'n up HERACLES - Page 6

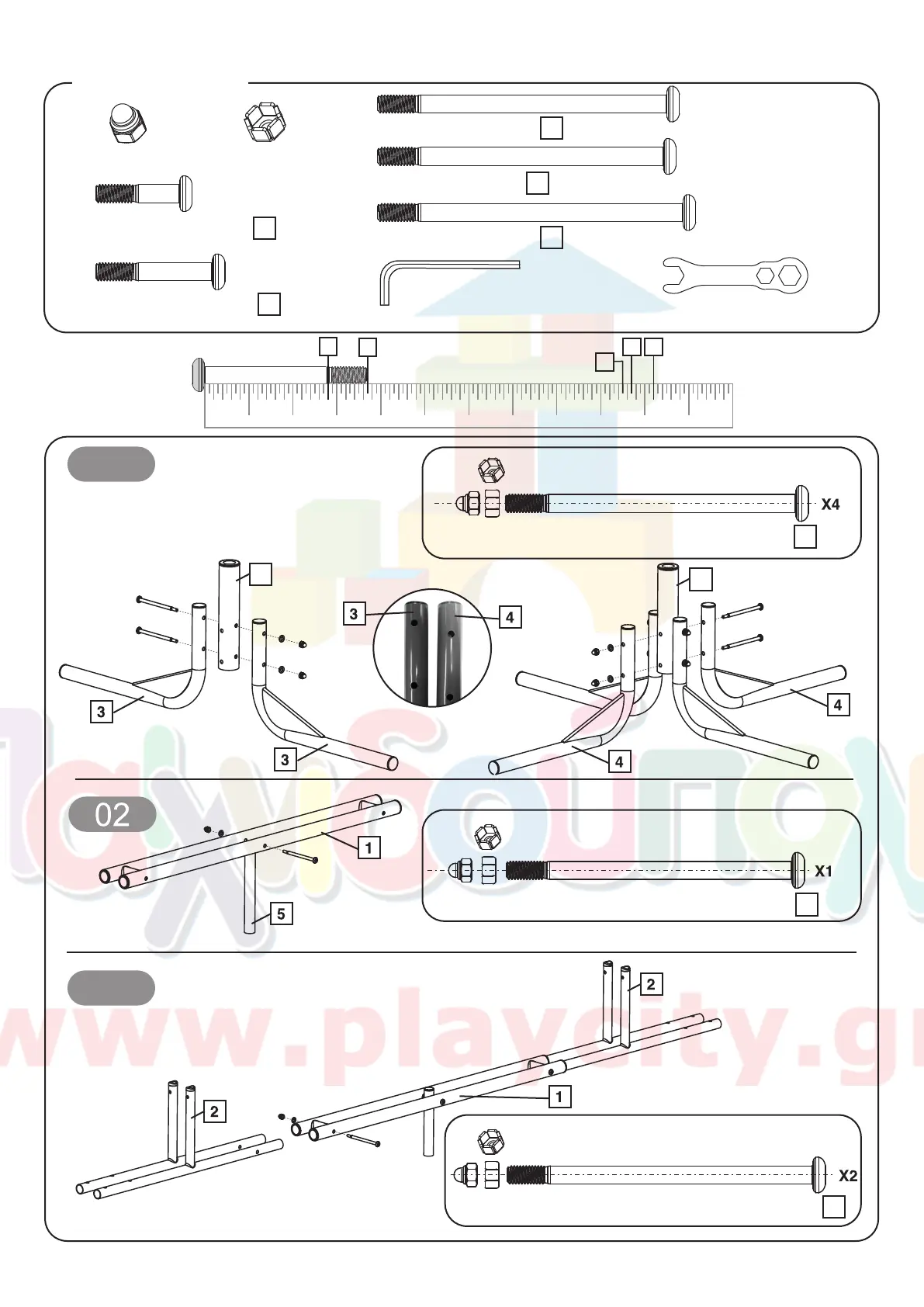

ASSEMBLY INSTRUCTIONS
www.grow-n-up.com
MODEL# 8035 HERACLES - SEESAW
01
6
6
1/4” Acorn Nut - Flower Washer - 1/4” x 3-13/16” Bolt
C
1/4” Acorn Nut - Flower Washer - 1/4” x 3-3/4” Bolt
D
FITTING PACK
1/4” Acorn Nut Flower Washer
1/4” x 1-29/64” (37mmL) Bolt
1/4” x 3-13/16” (97mmL) Bolt
1/4” x 3-3/4” (95mmL) Bolt
1/4” x 4-1/64” (102mmL) Bolt
Allen Key Spanner
1/4” x 1-7/64” (28mmL) Bolt
X19
X8
X4
X1
X1
X1
X2
X4
X19
A
B
C
D
E
Scale ( mm )
10 20 30 40 50 60 70 80 90 100 110
A
E
B
C
D
03
6
6
1/4” Acorn Nut - Flower Washer - 1/4” x 4-1/64” Bolt
E
