3 Product Description3 Product Description
The Growatt MTL series inverters are grid-tied inverters which convert DC current
generated by PV modules into AC current and feed it into the public grid. The
Growatt MTL series inverters are multi-string inverters with multi-MPP trackers,
which means that they are able to connect to different PV module arrays.
3.1. Overview

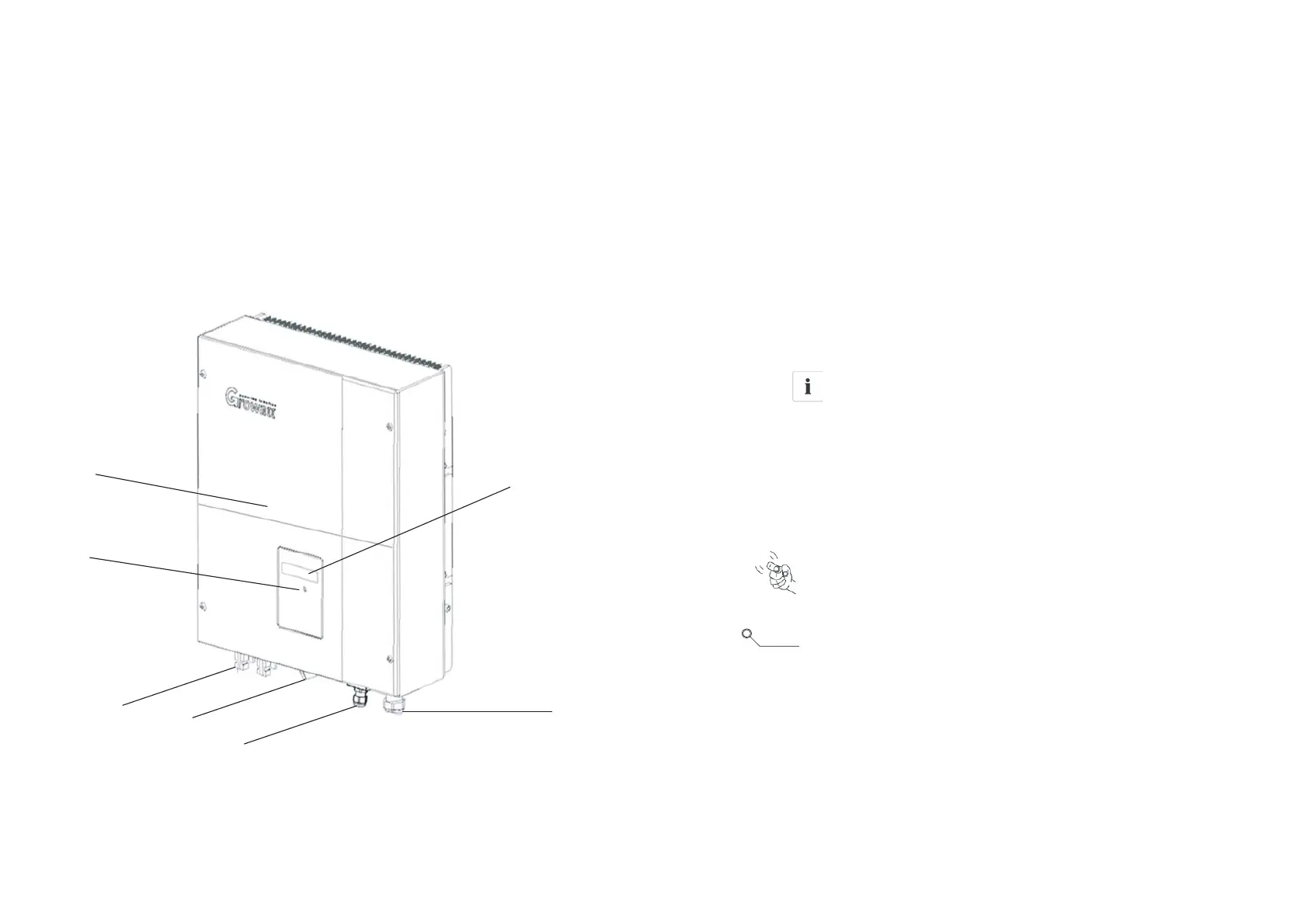

Position Description
A
The front enclosure lid
B
LCD
State LEDC
PV input terminals
D
DC switch
E
RS 485
F
AC outputG
Information
The DC switch of Growatt MTL series is optional
for different countries.
Symbol on the inverter
Position
Description Explanation
Tap symbol
Setting the display operation by tapping
the LCD (see Section 4).
NORMALL
FAULT
Inverter status symbol Indicates inverter operation status
A
C
D
E
F
G
B
