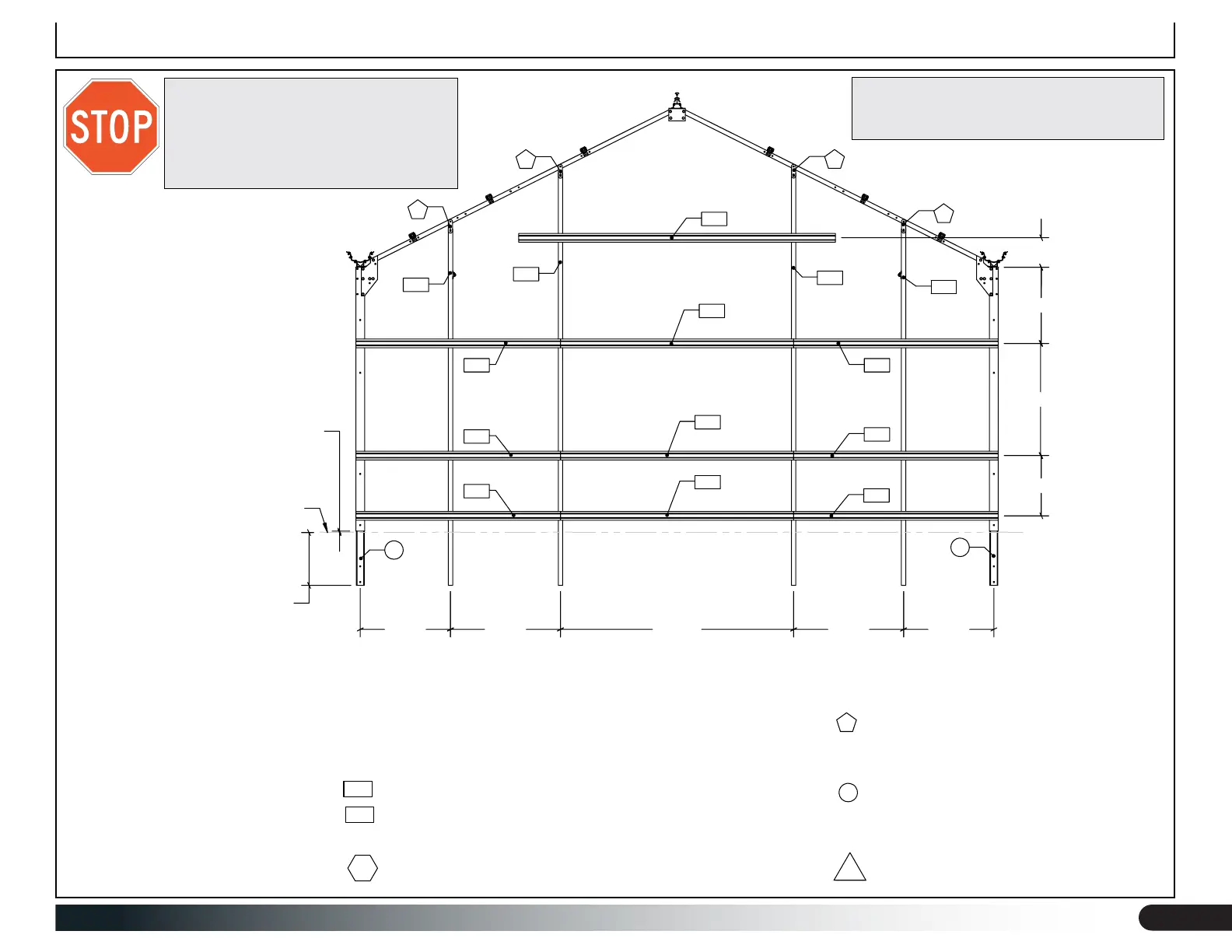

Vent End Frame Diagram (G)
ATTENTION: See End Frame Connections
Details 1-4 showing how to anchor vertical
end wall columns in concrete.
4'-2" 8'-10" 4'-2"
2'-3 3/8"
4'-3"
2'-10 5/8"
1'-1 3/8"
3'-5"
3'-5"
5/8"
2'-0"
EMBEDMENT
B
T
T
C1
TOP OF POST
GROUND LEVEL
GT
GT
T
GT
C2
C1
C2
GT
GT
GT
GT
GT
GT
T
GT
B
QH1070
(PIPE STRAP)
LB
LATERAL BRACING BRACKET:
C2
PG2X2EC14L18750
(2" x 2" 14 GA 1-PLY SQUARE TUBE)
COLUMN BOTTOM GROUND POST INSERT:
B 112357
(GROUND POST INSERT)
COLUMN TOP CONNECTION PLATE:
PGBRKAAS01
(CONNECTION PLATE)
T
111635
(14 GA PROFILE)
GT
GIRT/DOOR FRAME
PG2X2EC14L16200
(2" x 2" 14 GA 1-PLY SQUARE TUBE)
C1
ENDWALL COLUMNS:
NOTES:
ALL DIMENSIONS ARE FROM CENTER TO CENTER UNLESS
OTHERWISE NOTED.
GIRTS/FRAMING CHANNEL MAY REQUIRE FIELD CUTTING TO FIT.
GRT2X2G16L144 (16 GA PROFILE)
IMPORTANT: IF A GUILLOTINE VENT WAS
PURCHASED TO INSTALL IN THE END
WALL, CONSULT THE INSTRUCTIONS
INCLUDED WITH THAT KIT FOR
REQUIRED VENT DIMENSIONS AS THEY
MAY DIFFER FROM THOSE SHOWN.
