GrowSpan 2000 Series - End Frame Connections Details 1-4 (B & G); View 1: Column to Base Plate;Girt; View 1 A: Column to Girt; View 2: Column to Top Chord

13
Revision date: 12.06.19 GK2EW24120B_G
111817)
(BASE PLATE OPTION)

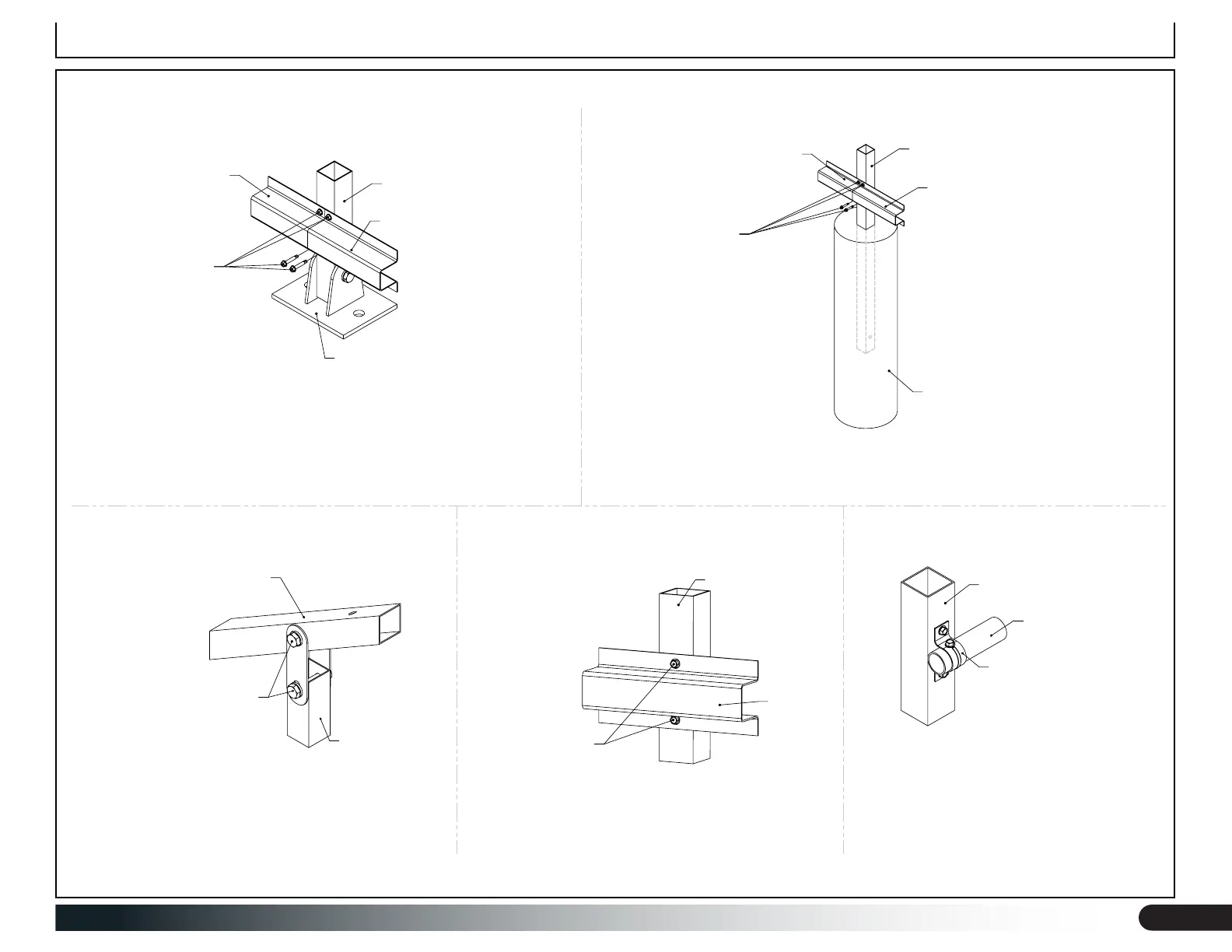

COLUMN TO BASE PLATE/GIRT
VIEW 1
ENDWALL COLUMN
ENDWALL GIRT
ENDWALL GIRT
-(1X) 1/2" X 3-1/2" HEX BOLT (A325)
-(2X) 1/2" WASHER (STRUCTURAL)
-(1X) BASE PLATE (
-(1X) 1/2" NUT (STRUCTURAL)
-(4X) #14 X 1" TEK SCREW
ENDWALL GIRT
ENDWALL GIRT
ENDWALL COLUMN
-(4X) #14 X 1" TEK SCREW
CONCRETE PIER
VIEW 1A
COLUMN TO GIRT
(GROUND POST OPTION)
ENDWALL COLUMN
TOP CHORD
-(2X) CONNECTION PLATE (PGBRKAAS01)
-(2X) 1/2" X 3" HEX BOLT (A325)
-(4X) 1/2" WASHER (STRUCTURAL)
-(2X) 1/2" NUT (STRUCTURAL)
VIEW 2
COLUMN TO TOP CHORD
ENDWALL COLUMN
-(3X) #14 X 1" TEK SCREW
-(1X) BRACKET (QH1070)
LATERAL BRACE
VIEW 4
LATERAL BRACE TO COLUMN
ENDWALL GIRT
ENDWALL COLUMN
-(2X) #14 X 1" TEK SCREW
VIEW 3
COLUMN TO GIRT (NON-SPLICE)
End Frame Connections Details 1-4 (B & G)
