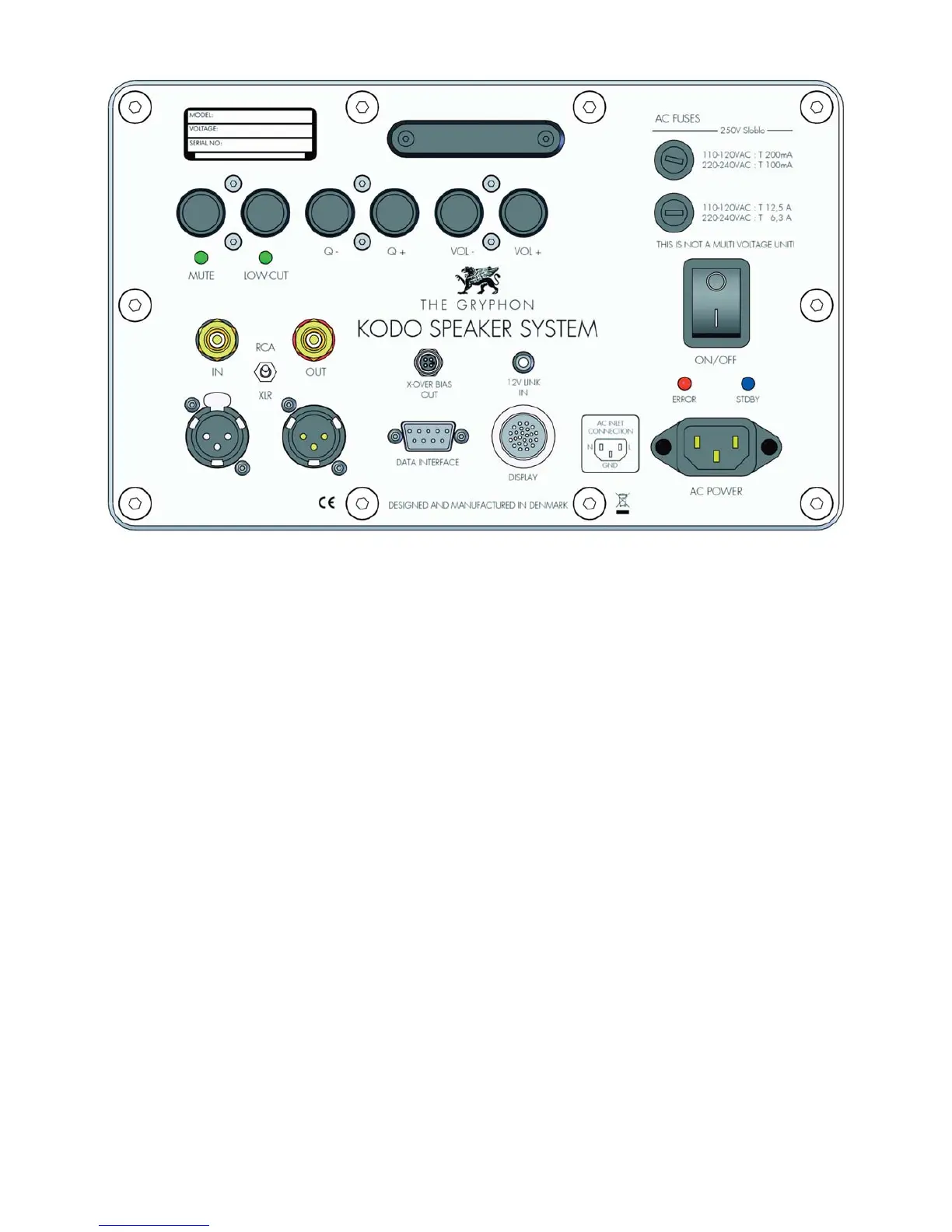

Master tower control.
Adjustments applies to both towers automatically.
Warning:
Be aware that there is 1000 watt amplifier in each tower that
can deliver a huge output in very low frequencies if instruc-
tions are not observed. Please be very careful when handling
this system
Vol+/Vol-
Bass level up or down.
Q+/Q-
Optimizing bass performance to the specific room.
LOW CUT
Use this with turntable use to prevent overloading the system
with low level noise from turntable ( rumble) or to prevent di-
sasters with a dropped tone arm
MUTE
In & out puts
XLR in
Connect to balanced output from balanced preamplifier XLR -
AES standard- ( pin 2 positive, Pin 3 negative, Pin 1 shield )
Always if you change cables –
or turn the towers off.
18
