Gryphon XT User Manual

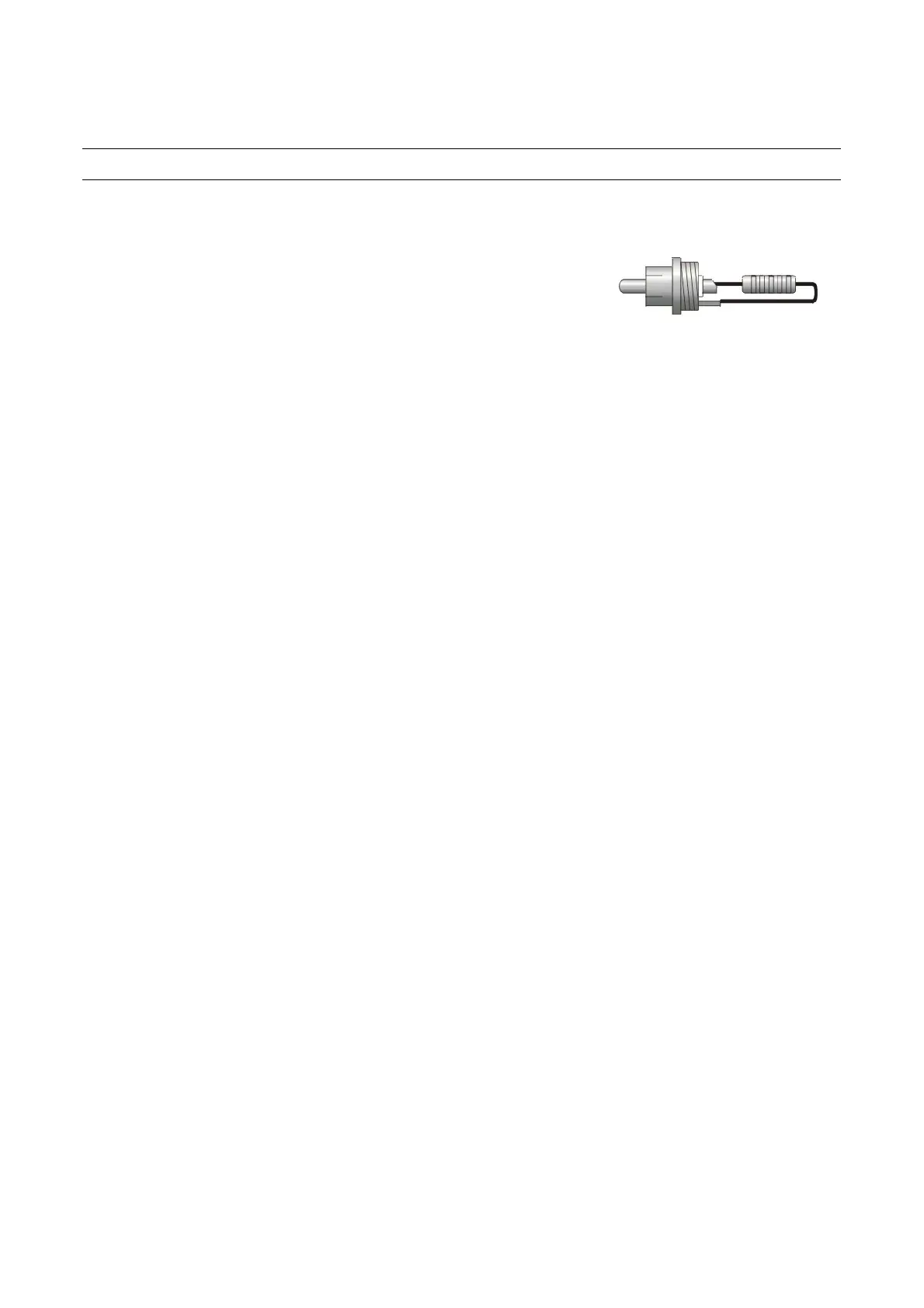

IMPEDANCE INTERFACE LOAD CHART
LOAD E96 RESISTOR ADAPTOR
2,50 2,55
2,73 2,74
2,97 3,01
3,24 3,32
3,54 3,57
3,86 3,92
4,20 4,32
4,59 4,64
5,00 5,11
5,45 5,62
5,95 6,19 BLUE
6,48 6,65
7,07 7,32
7,71 8,06
8,41 8,87
9,17 9,53
10,00 10,50 GREEN
10,91 11,50
11,89 12,70
12,97 14,00
14,14 15,40
15,42 16,50
16,82 18,20
18,34 20,00
20,00 22,10
21,81 24,30
23,78 26,70
25,94 30,10
28,28 33,20
30,84 36,50
33,64 40,20
36,68 45,30
40,00 49,90 RED
43,62 56,20
47,57 61,90
51,87 69,80
56,57 78,70
61,69 88,70
67,27 102,00
73,36 115,00
80,00 133,00
87,24 154,00
95,14 182,00 YELLOW
103,75 215,00
113,14 261,00
123,38 324,00
134,54 412,00
146,72 549,00
160,00 806,00
174,48 1370,00
190,27 3920,00
200,00 infinite use no adaptor
Spare adaptor for optional load: GREY.
All values in Ohms. Use 1% E96 or E192 row metal film resistor.
