Hexylon High-performance portable meter
16

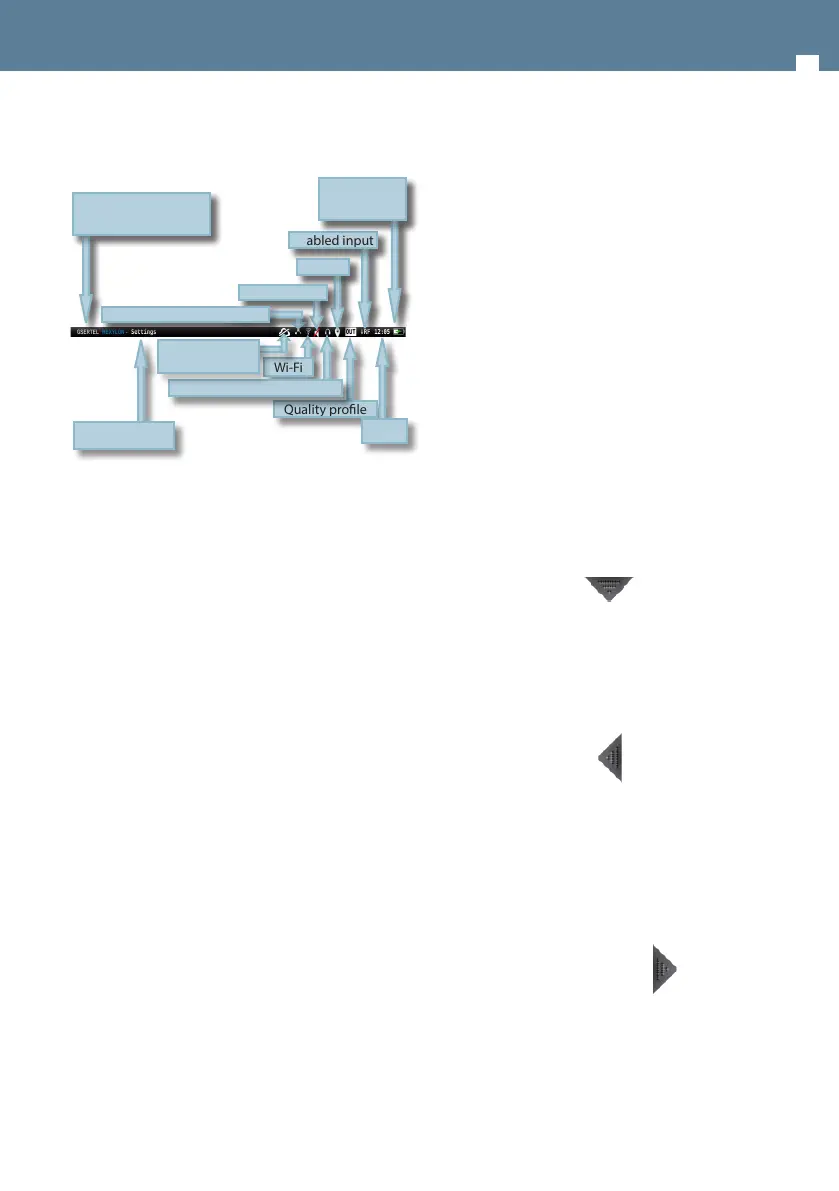

Top bar:
• Conection to the network: indicates that the
meter is connected to the network by Ethernet.
See section Settings-Network in Top Muenu
-No icon->No cable connected
-White icon->Cable connected
-Green icon->Connected to the internet
• Wi-Fi: indicates that the meter is connected to a
Wi-Fi network. See section Settings-Wi-Fi in Top
Menu
- No icon->Wi-Fi disabled
- White blinking icon->Wi-Fi stablishing connection
-White icon->Wi-Fi connected
-Grey icon->Wi-Fi error
-Green icon->Connected to the internet
• GPS: indicates that the GPS is active. While the
satellite data is not received, the icon blinks. See
section Settings-GPS in Top menu. To perform
a Drive-Test the GPS must be active, and then
schedule a MacroLOG (see icons in the Bottom
bar). The results of the Drive Test are shown in the
web application. See section 1.- Measurements in
Web application.
• LNB and DiSEqC information: shows information
about the LNB band (only if real frequency is
selected -see section 1.2.- Measurements of the
menu 1.- Settings-), as well as about DiSEqC if it is
active. See section 2.- User proles
• Quality prole: indicates the selected quality
prole. To select other quality prole, access the
options context menu of the feature. See section
Options context menu in Menus. To add new quality
proles see section 5.- Quality proles in Web
application.
Current feature
Wi-Fi
Quality prole
Time
Headphones output enabled
Equipment model
Enabled input
Battery state
GPS
Mute
Ethernet connected
• Enabled input: See section Inputs/Outputs in Top
menu.
• Time: see section Regional in the feature 1.-
Settings
• Connection to the cloud: See section Before
Starting to register you and your Hexylon, so you
will access to the cloud.
- Crossed out icon->No internet connection or cloud
connection
- White icon->There is connection to the cloud, but
the Hexylon is not registered
-Green icon->Connected to the cloud and Hexylon
registered
Menus
The Hexylon has 3 dierent menus. These menus
will be explained in this section briey, as well as
their locations. All their features will be explained
in the sections below.
Top Menu
To access this menu you must do a short swipe at
the top central part of the screen.
The features of this menu allows us to set up
certains aspects of the meter in a fast way and from
any feature.
Main Menu
To access this menu you must do a short swipe on
the right central part of the screen.
The main menu is a wheel with all the features of
the meter.
Doing long swipe on the wheel, the user can access
every features. To select a feature, you must tap on
the corresponding icon.
Options context menu
Most of the features of the main menu have a menu
with some options that pertain exclusively to that
feature. These options are in a context menu that
appears when the user does short swipe on the left
central part of the screen.
Not connected
to the internet
