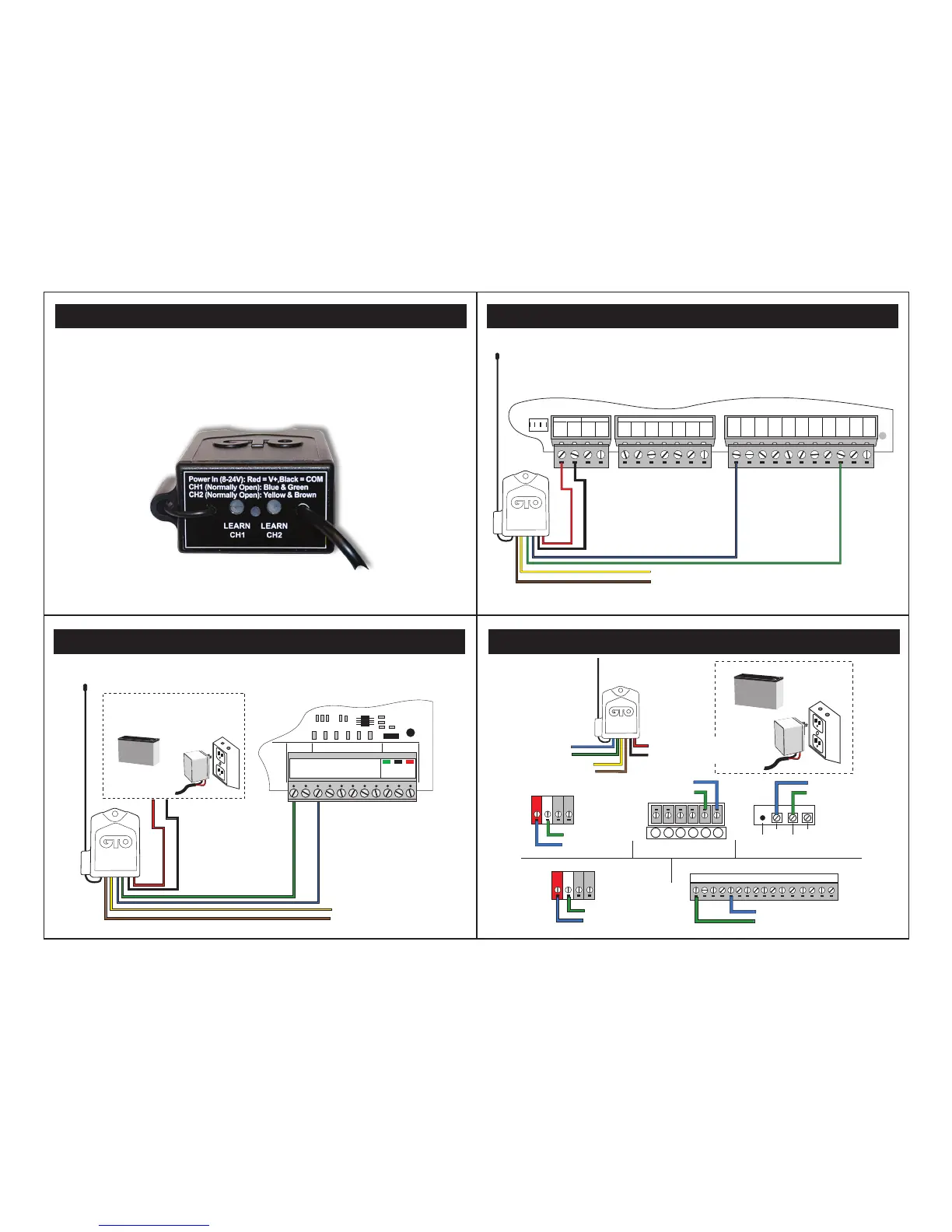

GTO RB709-U - Receiver Programming and Wiring Diagrams; Programming the Receiver; Wiring Receiver to GTO DC Operators; Wiring Receiver to GTO GP-SL100 & GP-SW100

Programming the Receiver
Wiring Receiver to Common Gate and Door Openers Wiring Receiver to GTO DC Operators
Wiring Receiver to GTO GP-SL100 & GP-SW100 Operators
Learningtransmitter(s)withRB-709Ureceiver:
• Pressandholdthetransmitter’sbuttontobelearned.
• Pressthe‘LEARNCH1’(or‘LEARNCH2’)buttonontheRB-709Ureceiverfor
1-2secondsoruntiltheredLEDturnson,thenreleasethebutton.
• Note:Whenthecorrectcodeisreceivedandthecorrespondingrelayoutput
isactivated,theredLEDwillturnon.
Channel 1 (GREEN WIRE to COM)
Channel 1 (BLUE WIRE to RELAY)
BLACK
RED
Channel 2 (BROWN WIRE to COM)
Channel 2 (YELLOW WIRE to RELAY)
ALARM
ACC. POWER DUAL CABLE
+12Vdc
COM
DUAL LINK
LINK COM
RELAY OUTPUTS
LOCK N.C.
LOCK COM
LOCK N.O.
RUN 1 RUN 2
CLOSED 1 CLOSED 2
CYCLE
SAFETY
OPEN EDGE
RUN 2
OPEN
CLOSE
STOP
COM COM COM
SHADOW
LOOP
Checkoperationafterprogramming:
• PressTransmitter#1-REDLEDblinksoncetoconrm.
• PressTransmitter#2-REDLEDblinkstwicetoconrm.
GTO/PROGP-SL100andGP-SW100ContolBoard
TypicalGTODCpoweredgateoperators.
GTO/PRO2000XL,3000XL.4000XL,andMightyMule500
6 5 4 3 2 1
Genie Garage Door Opener
CHANNEL 1 (COM)
CHANNEL 1 (NO)
Linear Garage Door Opener
PUSHBUTTON
COMMON
BEAM
ANTENNA
CHANNEL 1 (COM)
CHANNEL 1 (NO)
Lift Master
Garage Door Opener
CHANNEL 1 (COM)
CHANNEL 1 (NO)
Chamberlin
Garage Door Opener
CHANNEL 1 (COM)
CHANNEL 1 (NO)
Lift Master SL580 Gate Opener
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
CHANNEL 1 (COM)
CHANNEL 1 (NO)
CHANNEL 1 (NO)
CHANNEL 2 (NO)
CHANNEL 1 (COM)
CHANNEL 2 (COM)
RED WIRE to POSITIVE POWER
BLACK WIRE to NEGATIVE POWER
BATTERY or
TRANSFORMER
AC@53>@=B31B=@
(RB570 or R4222)
Channel 1 (GREEN WIRE to COM)
Channel 1 (BLUE WIRE to RELAY)
BLACK
RED
Channel 2 (BROWN WIRE to COM)
Channel 2 (YELLOW WIRE to RELAY)
GRN BLK RED
RECEIVER
COM COM
CYCLE
CLOSE
SAFETY
EXIT
OPEN
SHADOW
LOOP
CLOSE
EDGE
OPEN
EDGE
J11
J8
J12
8 to 24 VOLT AC/DC
POWER SUPPLY or BATTERY
RED WIRE to POSITIVE
BLACK WIRE to NEGATIVE
BATTERY or
TRANSFORMER
AC@53>@=B31B=@
(RB570 or R4222)
