GTO RB709U-NB - Programming the Receiver; Programming Transmitter(s); Check Operation After Programming; Wiring Receiver to GTO GP-SL50 & GP-SW50 Operators

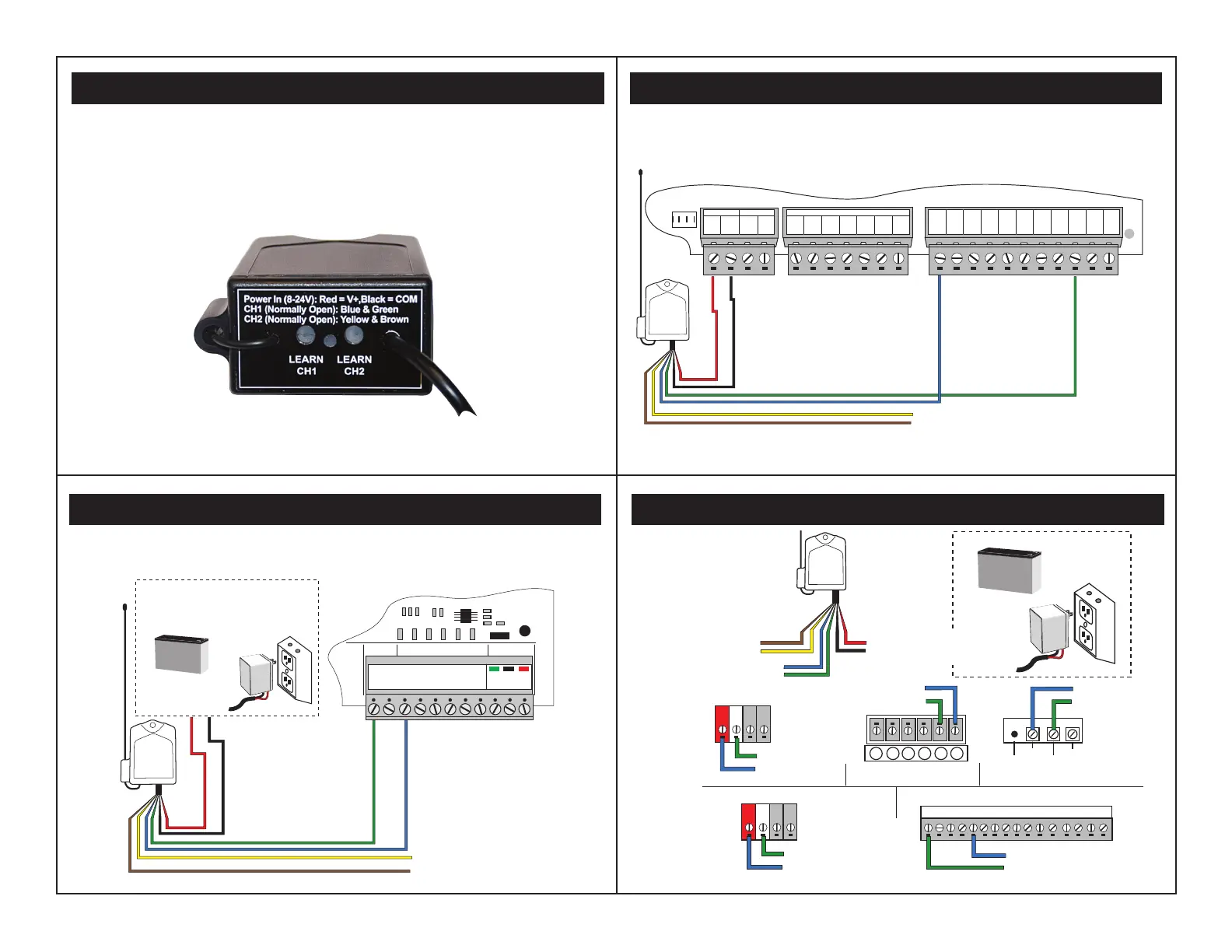

Programming the Receiver
Wiring Receiver to Common Gate and Door Openers Wiring Receiver to GTO DC Operators
Wiring Receiver to GTO GP-SL50 & GP-SW50 Operators
Programming transmitter(s) or other access devices to RB-709U-NB receiver:
• Press and hold the transmitter (device) button to be learned.
• Press the ‘LEARN CH1’ (or ‘LEARN CH2’) button on the RB-709U-NB receiver for 1-2
seconds or until the red LED turns on, then release the button.
• Note: When the correct code is received and the corresponding relay output is
activated, the red LED will turn on.
Channel 1 (GREEN WIRE to COM)
Channel 1 (BLUE WIRE to CYCLE)
BLACK
RED
Channel 2 (BROWN WIRE to COM)
Channel 2 (YELLOW WIRE to N/O Contact)
ALARM
ACC. PO WER DUAL CABLE
+12Vdc
COM
DUAL LINK
LINK COM
RELAY OUTPUTS
LOCK N.C.
LOCK COM
LOCK N.O.
RUN 1 RUN 2
CLOSED 1 CLOSED 2
CYCLE
SAFETY
OPEN EDGE
RUN 2
OPEN
CLOSE
STOP
COM COM COM
SHADOW
LOOP
Check operation after programming:
• Press Transmitter (device) button, #1 - RED LED blinks once to conrm.
• Press Transmitter (device) button, #2 - RED LED blinks twice to conrm.
GP-SL50 and GP-SW50 Contol Board
Typical Linear PRO Access or Mighty Mule DC powered gate operators.
PRO 2000XLS, 3000XLS. 4000XLS, and Mighty Mule 500/560, 502/562
6 5 4 3 2 1
Genie Garage Door Opener
CHANNEL 1 (COM)
CHANNEL 1 (N/O)
Linear Garage Door Opener
PUSHBUTTON
COMMON
BEAM
ANTENNA
CHANNEL 1 (COM)
CHANNEL 1 (N/O)
Lift Master
Garage Door Opener
CHANNEL 1 (COM)
CHANNEL 1 (N/O)
Chamberlin
Garage Door Opener
CHANNEL 1 (COM)
CHANNEL 1 (N/O)
Lift Master SL580 Gate Opener
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
CHANNEL 1 (COM)
CHANNEL 1 (N/O)
CHANNEL 1 (N/O)
CHANNEL 2 (N/O)
CHANNEL 1 (COM)
CHANNEL 2 (COM)
RED WIRE to POSITIVE POWER
BLACK WIRE to NEGATIVE POWER
BATTERY or
TRANSFORMER
SURGE PROTECTOR
(RB570 or R4215)
Channel 1 (GREEN WIRE to COM)
Channel 1 (BLUE WIRE to CYCLE/CLOSE)
BLACK
RED
Channel 2 (YELLOW WIRE to COM)
Channel 2 (BROWN WIRE to N/O Contact)
GRN BLK RED
RECEIVER
COM COM
CYCLE
CLOSE
SAFETY
EXIT
OPEN
SHADOW
LOOP
CLOSE
EDGE
OPEN
EDGE
J11
J8
J12
8 to 24 VOLT AC/DC
POWER SUPPLY or BATTERY
RED WIRE to POSITIVE
BLACK WIRE to NEGATIVE
BATTERY or
TRANSFORMER
SURGE PROTECTOR
(RB570 or R4215)
GTO Access Systems, LLC • 3121 Hartseld Road • Tallahassee, Florida 32303 • Sales 1-800-543-4283 • Technical Support 1-800-543-1236 • www.gtoaccess.com
Connects to most garage
door openers the same as a
remote push button.
