GTV ModernSlide 3D - Page 2

GTV, ul. Przejazdowa 21, 05-800 Pruszków, tel. 22 444 75 00, fax 22 444 75 03, www.gtv.com.pl
- load capacity: 40kg
- available lengths: 250-550mm
- full extension
- quiet shut
- 3d adjustment:
• vertical: 0-2,5mm
• horizontal: ±1,5mm
• depth: 0-3mm

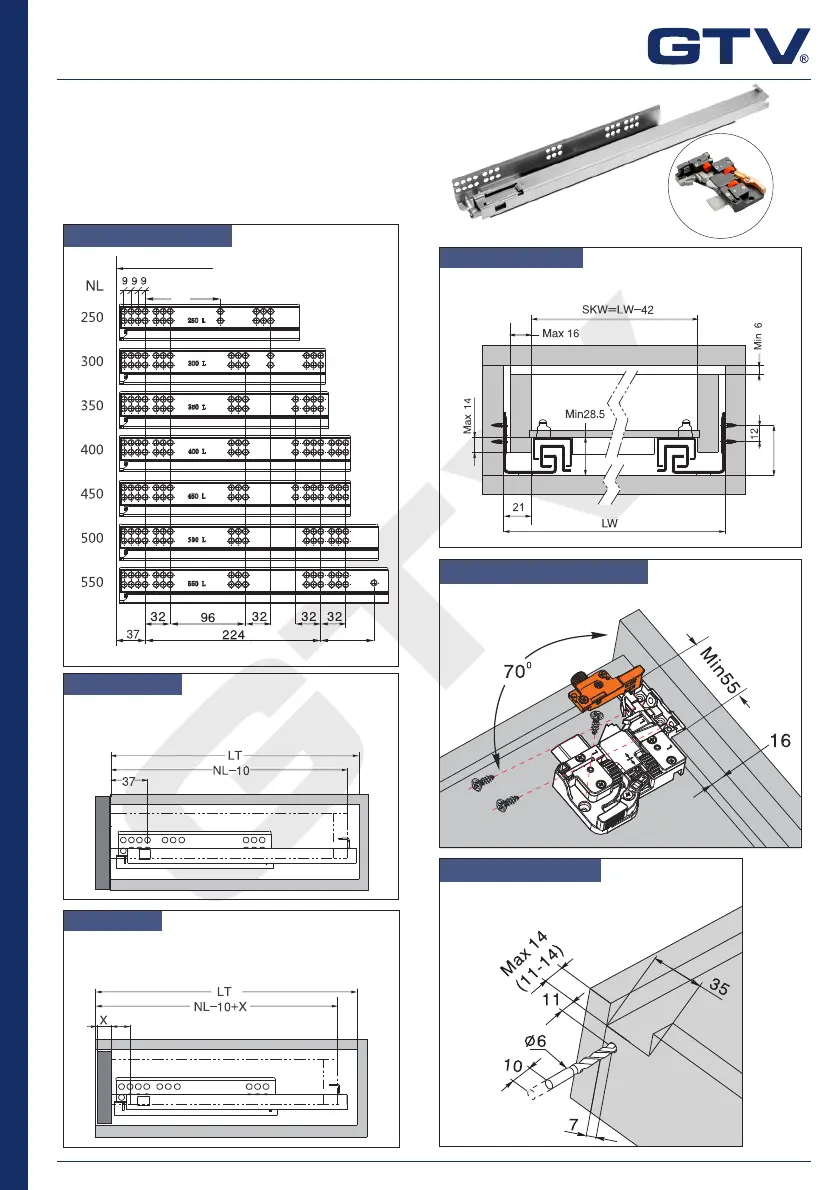

body edge
slides mounting position
installing the 3D locking device
back panel preparation
min 38
SKW Internal drawer width
LW internal cabinet width
mounting dimensions
PB-3DSLIDE-...
96
68
standard drawer
ModernSlide 3D installation instruction
NL slide length
LT internal cabinet depth
LT=NL+5
19
NL slide length
LT=NL+X+5
LT internal cabinet depth
inner drawer
