Guardian VLA User Manual

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 USA phone: (800) 466-6385 fax: (800) 670-7892 www.guardianfall.com
2
For all applications: worker weight capacity range
(including all clothing, tools, and equipment) is 130-310 lbs.
Restraint: VLAs may be used in Restraint applications. Restraint systems prevent workers from
reaching the leading edge of a fall hazard. Always account for fully deployed length of lanyard/VLA.
Structure must withstand loads applied in the directions permitted by the system of at least
1,000 lbs. No vertical free fall is permitted. Restraint systems may only be used on surfaces with
slopes up to 4/12 (vertical/horizontal). Applicable D-rings: Dorsal, Chest, Side, Shoulder.

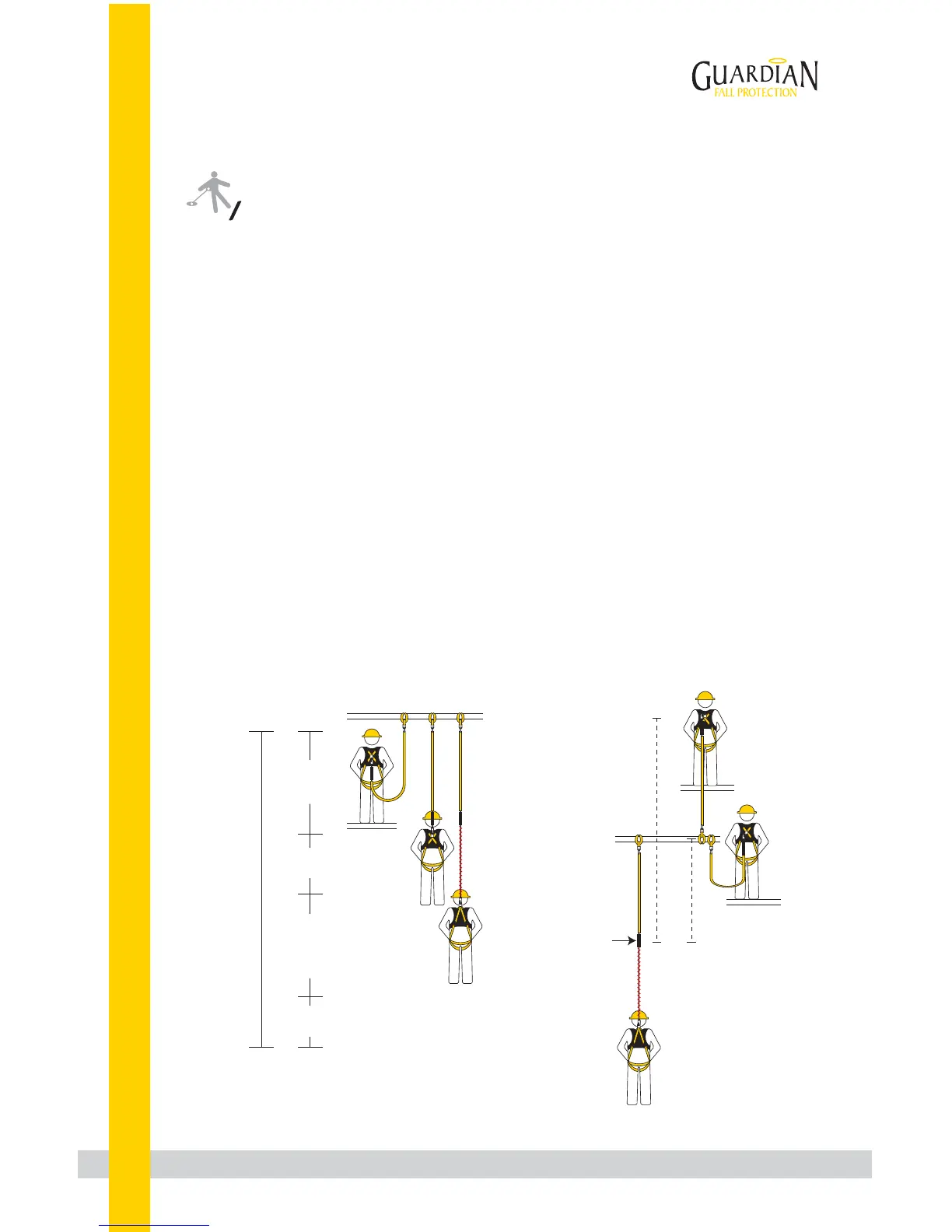

FALL CLEARANCE CALCULATION
Potential
free fall
(6’ total)
Safety factor
(3’ total)
Deceleration
distance (4’ total)
Height of harness
dorsal D-ring from
worker’s feet
(6’ total)
Required
distance
from
anchorage
(16’ total)
Limitations
Fall Clearance: There must be sufficient clearance below the anchorage connector to arrest a fall before the
user strikes the ground or an obstruction. When calculating fall clearance, account for a MINIMUM 3’ safety
factor, deceleration distance, user height, length of lanyard/SRL, and all other applicable factors.
Diagram shown is an example fall clearance calculation ONLY.
Swing Falls: Prior to installation or use, make considerations for eliminating or minimizing all swing fall
hazards. Swing falls occur when the anchor is not directly above the location where a fall occurs. Always work
as close to in line with the anchor point as possible. Swing falls significantly increase the likelihood of serious
injury or death in the event of a fall.
Compatibility: When making connections with VLA, eliminate all possibility of roll-out. Roll-out occurs when
interference between a hook and the attachment point causes the hook gate to unintentionally open and
release. All connections must be selected and deemed compatible with VLA by a Competent Person. All
connector gates must be self-closing and self-locking, and withstand minimum loads of 3,600 lbs. See the
following for examples of compatible/incompatible connections:
Anchor point
Free fall ends/
deceleration
begins
6’
free
fall
12’
free
fall
Max 48”
Deceleration
Standard 6’
lanyard shown
FREE FALL CALCULATION
Dorsal
D-ring
level with
anchor
Dorsal
D-ring
6’ above
anchor
