Technical Data
Connecting thread
¼ ‘‘
Operating pressure
6 bar
Air consumption ca
200 l/min.
Speed
1800 rpm
Torque max.
10 Nm
Maximum screw diameter
6,0 mm
Ordering No. 40079
Required Air Quality, Air Supply:
Cleaned, with oil mist. By means of a maintenance kit with a filter reducer and an oilcan to provide the
oil mist.
Working values set-up:
Set up operating (hydraulic) pressure on the reducer 6 bar.
Scope of Delivery

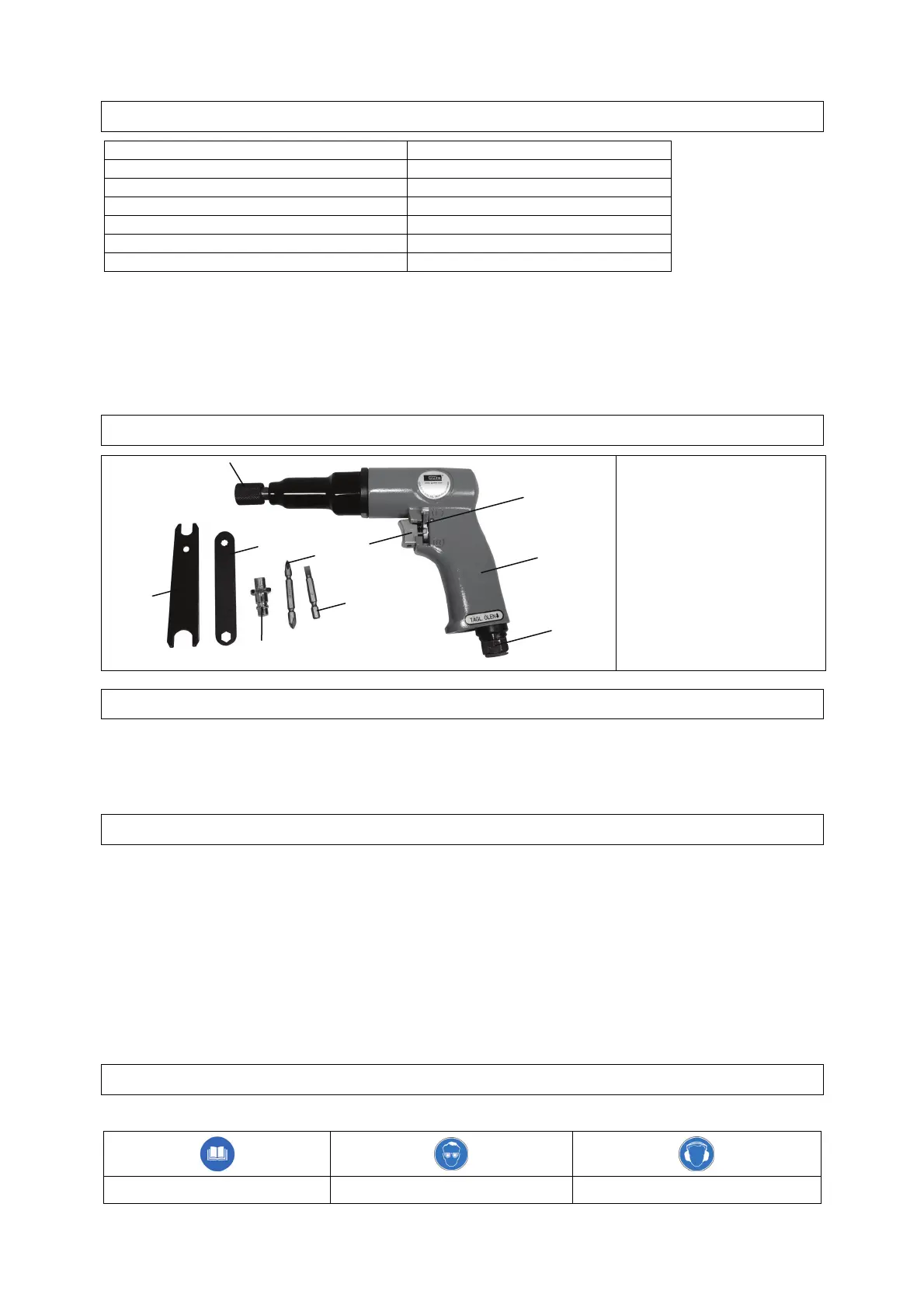

Fig. 1
1. Quick-acting chuck
2. Right/Left run
3. Pneumatic screwdriver
4. Pressure air connection
5. Starting lever
6. Fork wrench
7. Socket wrench
8. Extender
9. Extender
10. Pressure air connection socket
head
Unit
A lightweight easy to control unit with a pressure clutch, a special switching to let/right run. An assembly
with a quick-acting chuck and extenders.
Warning: Wear appropriate protection clothing when working with the impact screwdriver.
Follow the safety provisions.
Safety Provisions
Protect yourself and people around against accidents following respective safety provisions.
- Do not use the pneumatic screwdriver for any purpose other than assigned
- Keep the pneumatic tools away from children!
- Get down to work only when feeling rested and concentrated
- Connect the pressure air connection via the quick-acting connection
- The operating pressure should be set up via the reducer
- Do not use oxygen and flammables gases as the source of energy
- Disconnect the unit from the pressure air source before clearing a fault
- Use genuine spare parts only
- Never let the unit run unloaded at idling run.
- Wear appropriate protection clothing when wearing with impact screwdriver
Warranty
Warranty claims according to the warranty certificate attached. .
