Gude GTB Series User Manual

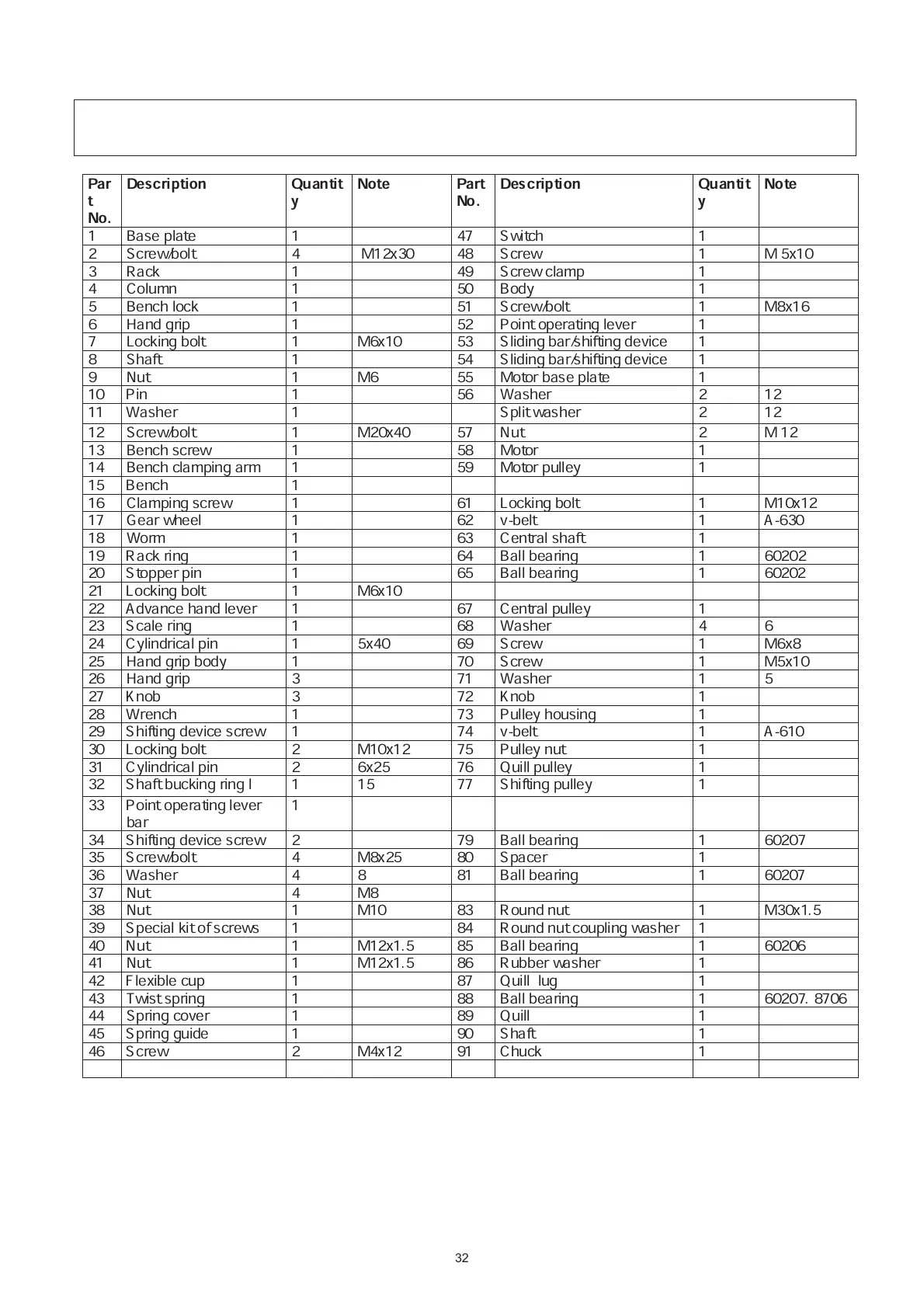

14. List of Spare Parts GTB 16. GTB 20. GSB 20. GSB 25 R+L. GSB 32
R+L
Par
t
No.
Description Quantit
y
Note Part
No.
Description Quantit
y
Note
1 Base plate 1 47 Switch 1
2 Screw/bolt 4 M12x30 48 Screw 1 M 5x10
3 Rack 1 49 Screw clamp 1
4 Column 1 50 Body 1
5 Bench lock 1 51 Screw/bolt 1 M8x16
6 Hand grip 1 52 Point operating lever 1
7 Locking bolt 1 M6x10 53 Sliding bar/shifting device 1
8 Shaft 1 54 Sliding bar/shifting device 1
9 Nut 1 M6 55 Motor base plate 1
10 Pin 1 56 Washer 2 12
11 Washer 1 Split washer 2 12
12 Screw/bolt 1 M20x40 57 Nut 2 M 12
13 Bench screw 1 58 Motor 1
14 Bench clamping arm 1 59 Motor pulley 1
15 Bench 1
16 Clamping screw 1 61 Locking bolt 1 M10x12
17 Gear wheel 1 62 v-belt 1 A-630
18 Worm 1 63 Central shaft 1
19 Rack ring 1 64 Ball bearing 1 60202
20 Stopper pin 1 65 Ball bearing 1 60202
21 Locking bolt 1 M6x10
22 Advance hand lever 1 67 Central pulley 1
23 Scale ring 1 68 Washer 4 6
24 Cylindrical pin 1 5x40 69 Screw 1 M6x8
25 Hand grip body 1 70 Screw 1 M5x10
26 Hand grip 3 71 Washer 1 5
27 Knob 3 72 Knob 1
28 Wrench 1 73 Pulley housing 1
29 Shifting device screw 1 74 v-belt 1 A-610
30 Locking bolt 2 M10x12 75 Pulley nut 1
31 Cylindrical pin 2 6x25 76 Quill pulley 1
32 Shaft bucking ring l 1 15 77 Shifting pulley 1
33 Point operating lever
bar
1
34 Shifting device screw 2 79 Ball bearing 1 60207
35 Screw/bolt 4 M8x25 80 Spacer 1
36 Washer 4 8 81 Ball bearing 1 60207
37 Nut 4 M8
38 Nut 1 M10 83 Round nut 1 M30x1.5
39 Special kit of screws 1 84 Round nut coupling washer 1
40 Nut 1 M12x1.5 85 Ball bearing 1 60206
41 Nut 1 M12x1.5 86 Rubber washer 1
42 Flexible cup 1 87 Quill lug 1
43 Twist spring 1 88 Ball bearing 1 60207. 8706
44 Spring cover 1 89 Quill 1
45 Spring guide 1 90 Shaft 1
46 Screw 2 M4x12 91 Chuck 1
32
