Gude GTB Series User Manual

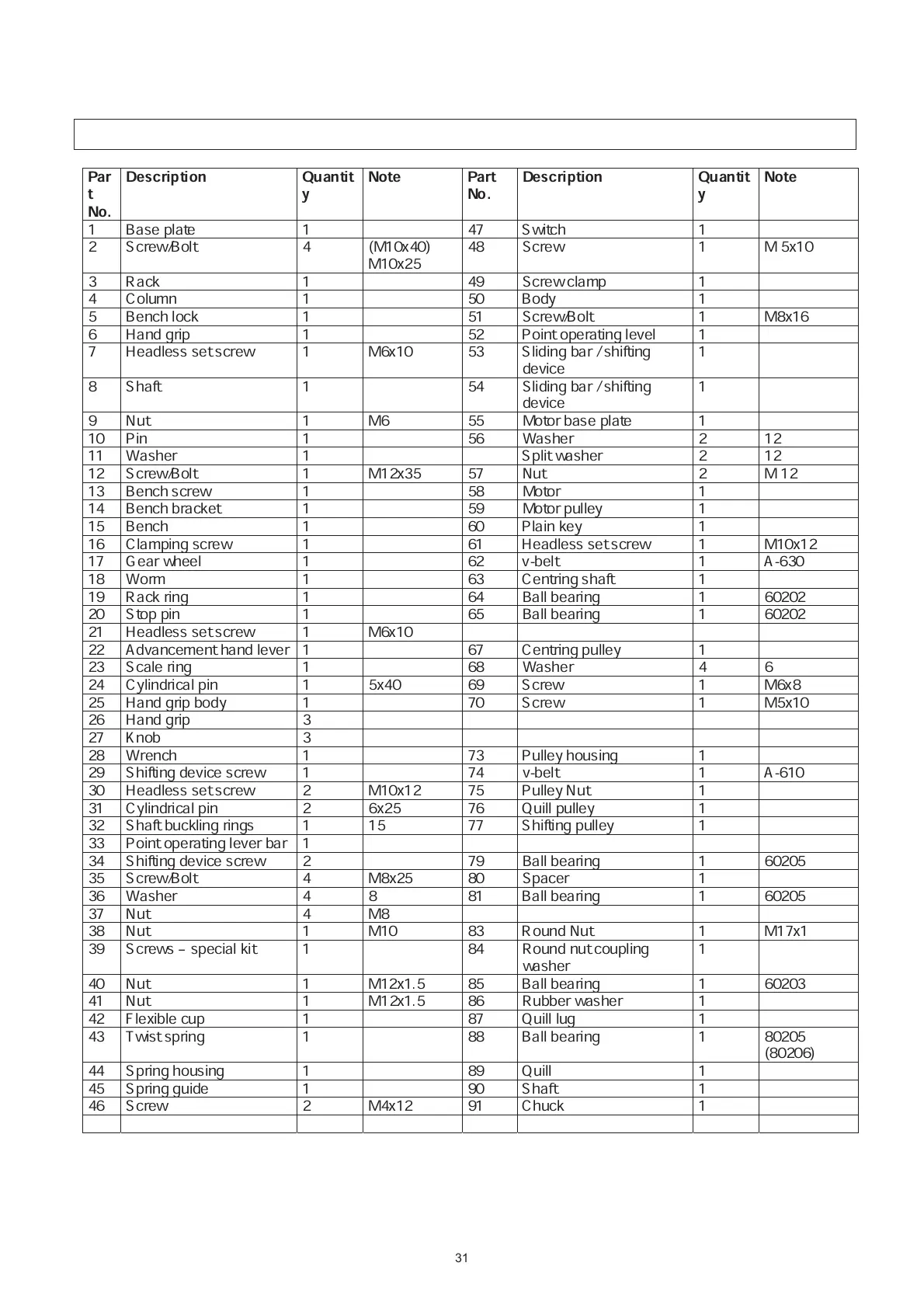

13. List of Spare Parts for GTB 13
Par
t
No.
Description Quantit
y
Note Part
No.
Description Quantit
y
Note
1 Base plate 1 47 Switch 1
2 Screw/Bolt 4 (M10x40)
M10x25
48 Screw 1 M 5x10
3 Rack 1 49 Screw clamp 1
4 Column 1 50 Body 1
5 Bench lock 1 51 Screw/Bolt 1 M8x16
6 Hand grip 1 52 Point operating level 1
7 Headless set screw 1 M6x10 53 Sliding bar / shifting
device
1
8 Shaft 1 54 Sliding bar / shifting
device
1
9 Nut 1 M6 55 Motor base plate 1
10 Pin 1 56 Washer 2 12
11 Washer 1 Split washer 2 12
12 Screw/Bolt 1 M12x35 57 Nut 2 M 12
13 Bench screw 1 58 Motor 1
14 Bench bracket 1 59 Motor pulley 1
15 Bench 1 60 Plain key 1
16 Clamping screw 1 61 Headless set screw 1 M10x12
17 Gear wheel 1 62 v-belt 1 A-630
18 Worm 1 63 Centring shaft 1
19 Rack ring 1 64 Ball bearing 1 60202
20 Stop pin 1 65 Ball bearing 1 60202
21 Headless set screw 1 M6x10
22 Advancement hand lever 1 67 Centring pulley 1
23 Scale ring 1 68 Washer 4 6
24 Cylindrical pin 1 5x40 69 Screw 1 M6x8
25 Hand grip body 1 70 Screw 1 M5x10
26 Hand grip 3
27 Knob 3
28 Wrench 1 73 Pulley housing 1
29 Shifting device screw 1 74 v-belt 1 A-610
30 Headless set screw 2 M10x12 75 Pulley Nut 1
31 Cylindrical pin 2 6x25 76 Quill pulley 1
32 Shaft buckling rings 1 15 77 Shifting pulley 1
33 Point operating lever bar 1
34 Shifting device screw 2 79 Ball bearing 1 60205
35 Screw/Bolt 4 M8x25 80 Spacer 1
36 Washer 4 8 81 Ball bearing 1 60205
37 Nut 4 M8
38 Nut 1 M10 83 Round Nut 1 M17x1
39 Screws – special kit 1 84 Round nut coupling
washer
1
40 Nut 1 M12x1.5 85 Ball bearing 1 60203
41 Nut 1 M12x1.5 86 Rubber washer 1
42 Flexible cup 1 87 Quill lug 1
43 Twist spring 1 88 Ball bearing 1 80205
(80206)
44 Spring housing 1 89 Quill 1
45 Spring guide 1 90 Shaft 1
46 Screw 2 M4x12 91 Chuck 1
31
