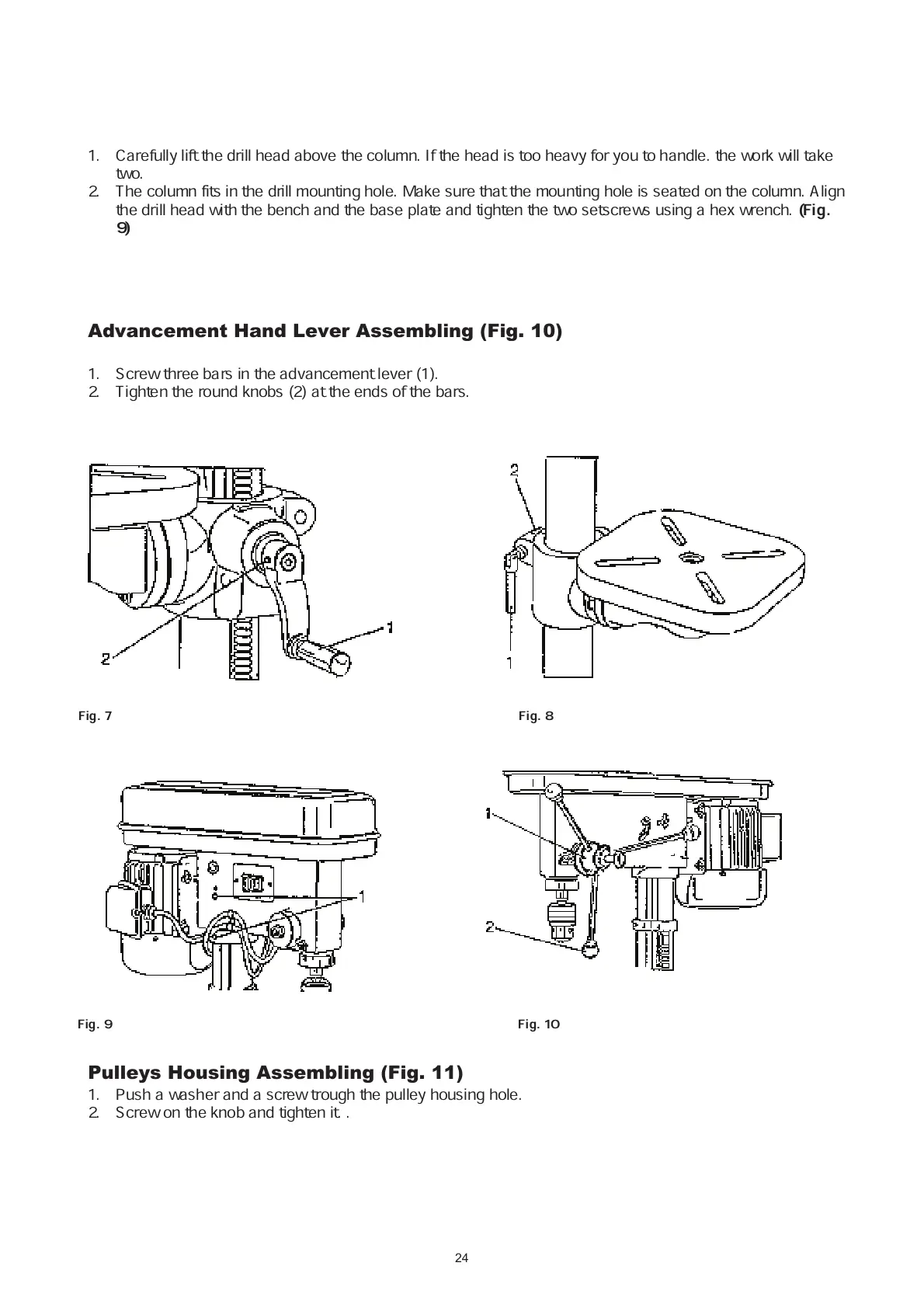

Fixing Drill Head on Column
1. Carefully lift the drill head above the column. If the head is too heavy for you to handle. the work will take
two.
2. The column fits in the drill mounting hole. Make sure that the mounting hole is seated on the column. Align
the drill head with the bench and the base plate and tighten the two setscrews using a hex wrench. (Fig.
9)
Advancement Hand Lever Assembling (Fig. 10)
1. Screw three bars in the advancement lever (1).
2. Tighten the round knobs (2) at the ends of the bars.
Pulleys Housing Assembling (Fig. 11)
1. Push a washer and a screw trough the pulley housing hole.
2. Screw on the knob and tighten it. .
Fig. 9 Fig. 10
Fig. 7 Fig. 8
24
