10.3.1.2 Bumper unit with pins
LOCTITE
7414
LOCTITE
7414
A B C
F E D

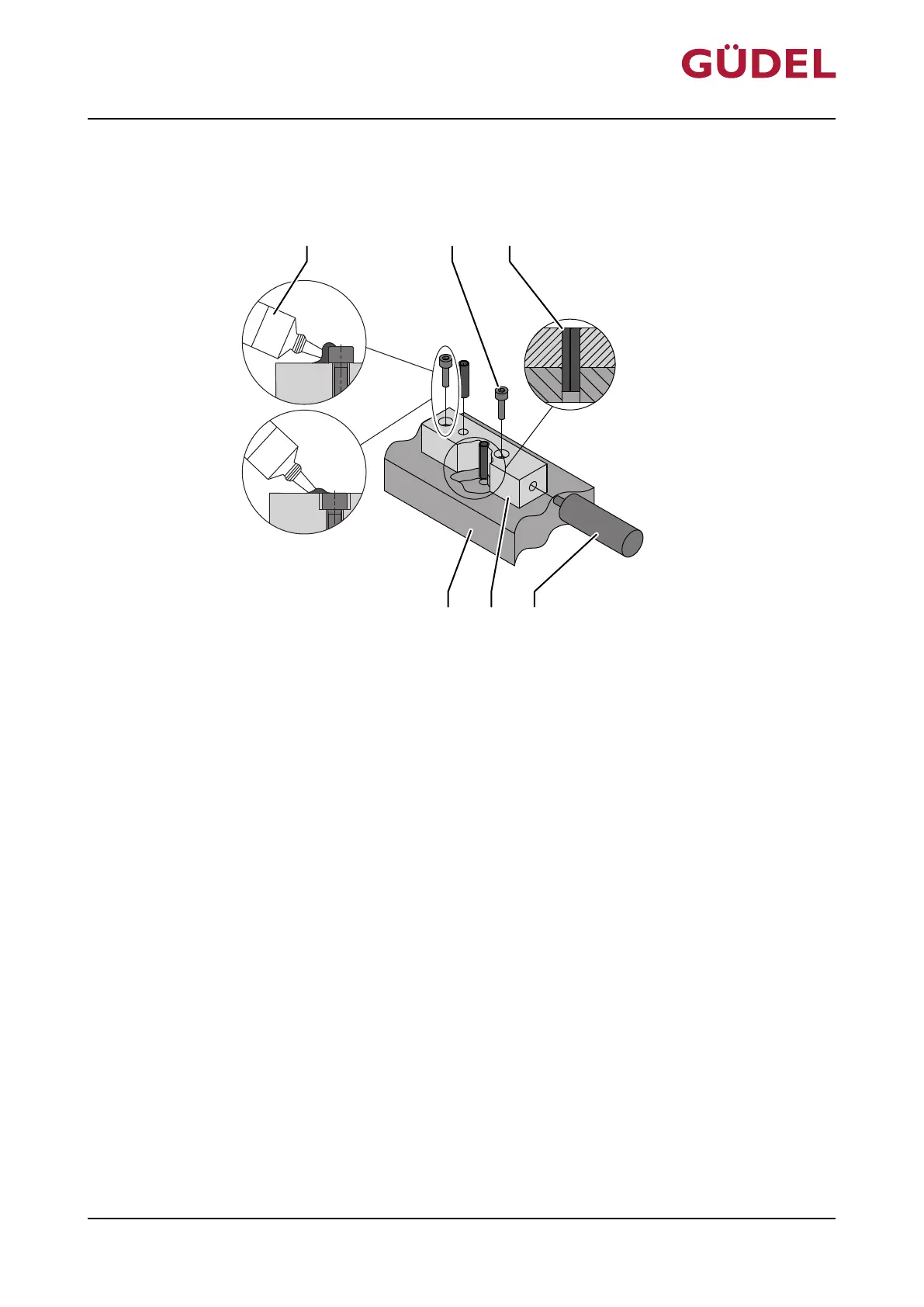

Fig.10-14 Bumper unit with pins
A Loctite Blue Threadlocker 7414 D Bumper
B Screw E Bumper block / bumper bracket
C Pin F Mating part
Assemble the bumper unit with pins as follows:
1 Assemble the bumper on the bumper block / bumper bracket
2 Remove the danger label from the assembly site if necessary
3 Install pre-assembled bumper unit along with the mating part using pins
4 Tighten the screws
5 Check if the pins have been fully and correctly installed
6 Seal all screws with Loctite Blue Threadlocker 7414
The bumper unit with pins has been assembled.
