Assembly – Fastener Torque

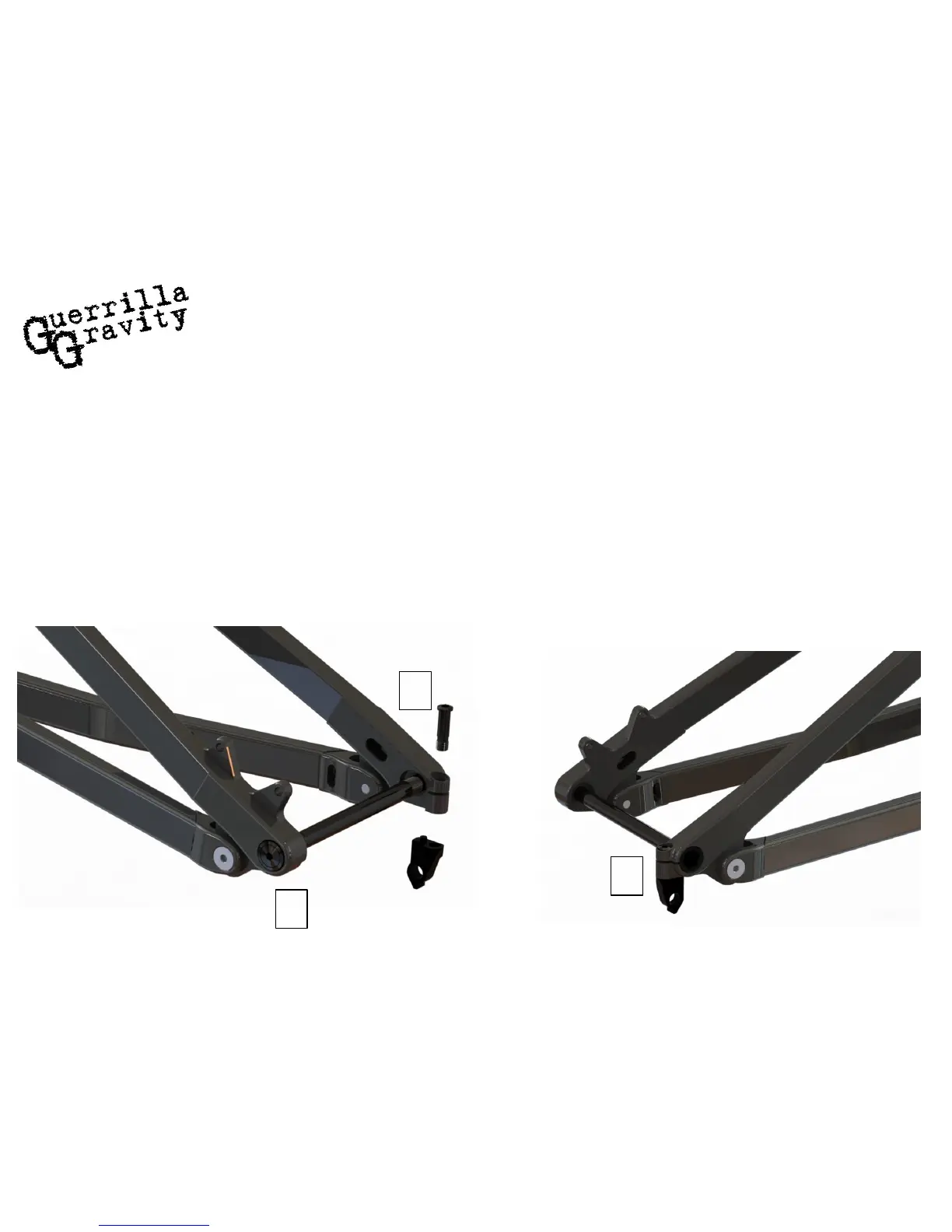

1. Rear Axle
1. Pinch bolt holds axle nut insert and derailleur hanger, to remove rear wheel, only loosen axle head
2. Derailleur Hanger
1. The pinch bolt clamps the nut insert and attaches the derailleur hanger
2. Tighten pinch bolt to 10 Nm (7 lb-ft, 90 in-lb) (5mm hex)
3. Do not loosen pinch bolt to remove rear wheel
1
2
2
