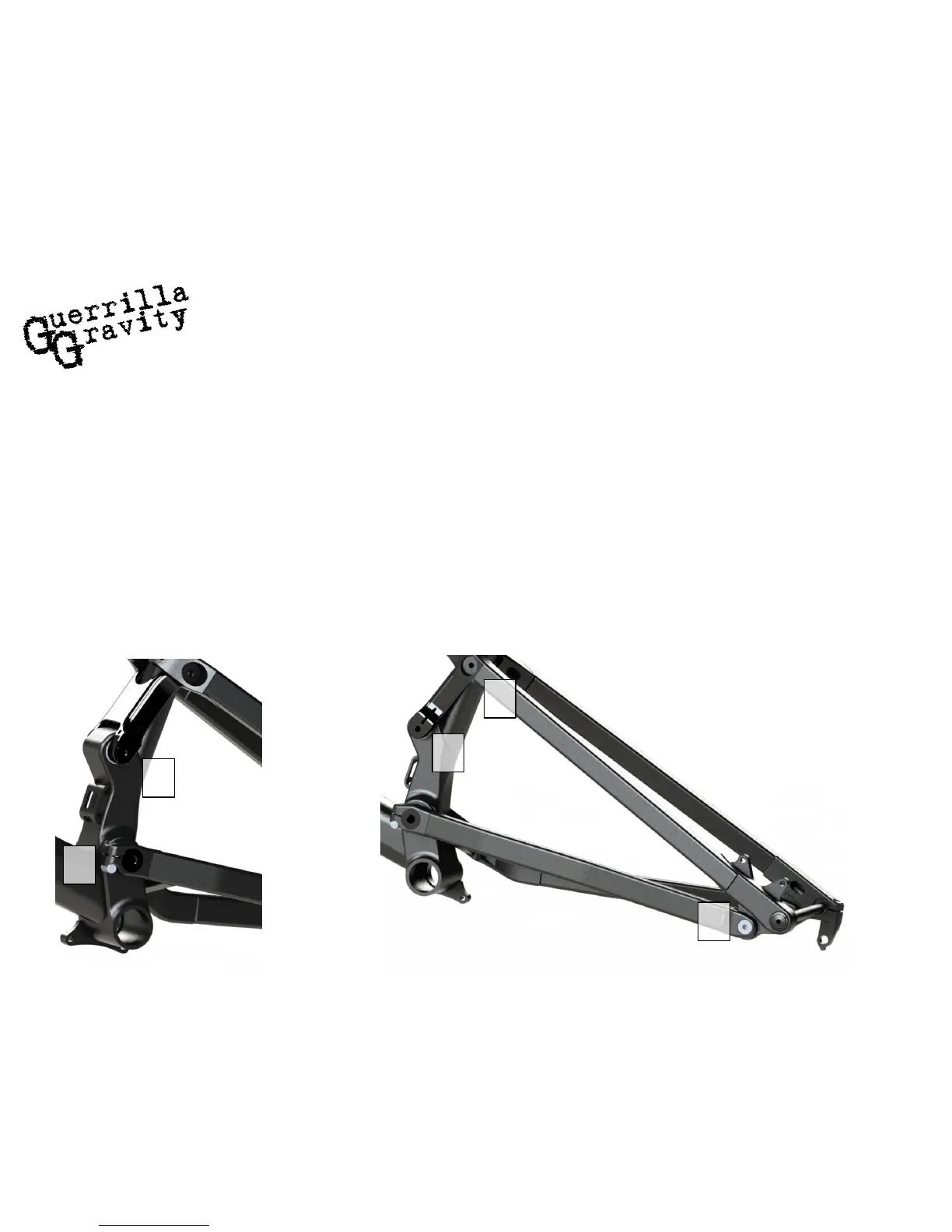

Assembly – Fastener Torque
1. Main Pivot Axle
1. Adjust pre-load on angular contact bearings (8mm hex)
2. Then tighten pinch bolt to 10 Nm (7 lb-ft, 90 in-lb) (5mm hex)
2. Rocker Pivot Axle
1. Adjust pre-load on angular contact bearings (5mm hex)
2. Then tighten pinch bolt to 10 Nm (7 lb-ft, 90 in-lb) (5mm hex)
3. Seatstay/Rocker Bolts: 10 Nm (7 ft-lb, 90in-lb) (5mm hex)
4. Chainstay/Axle Block Bolts: 10 Nm (7 ft-lb, 90in-lb) (5mm hex)
2
2
3
4
1
