Guest ChargePro5/5/5 User Manual

TYPICAL WIRING
15
Installation
Two 12 VDC Batteries Connected with a Series
Jumper for a 24 VDC Trolling Motor
Dedicated 24 VDC Trolling Motor Battery Configuration
with (2) 12 VDC Batteries Connected with a Series Jumper

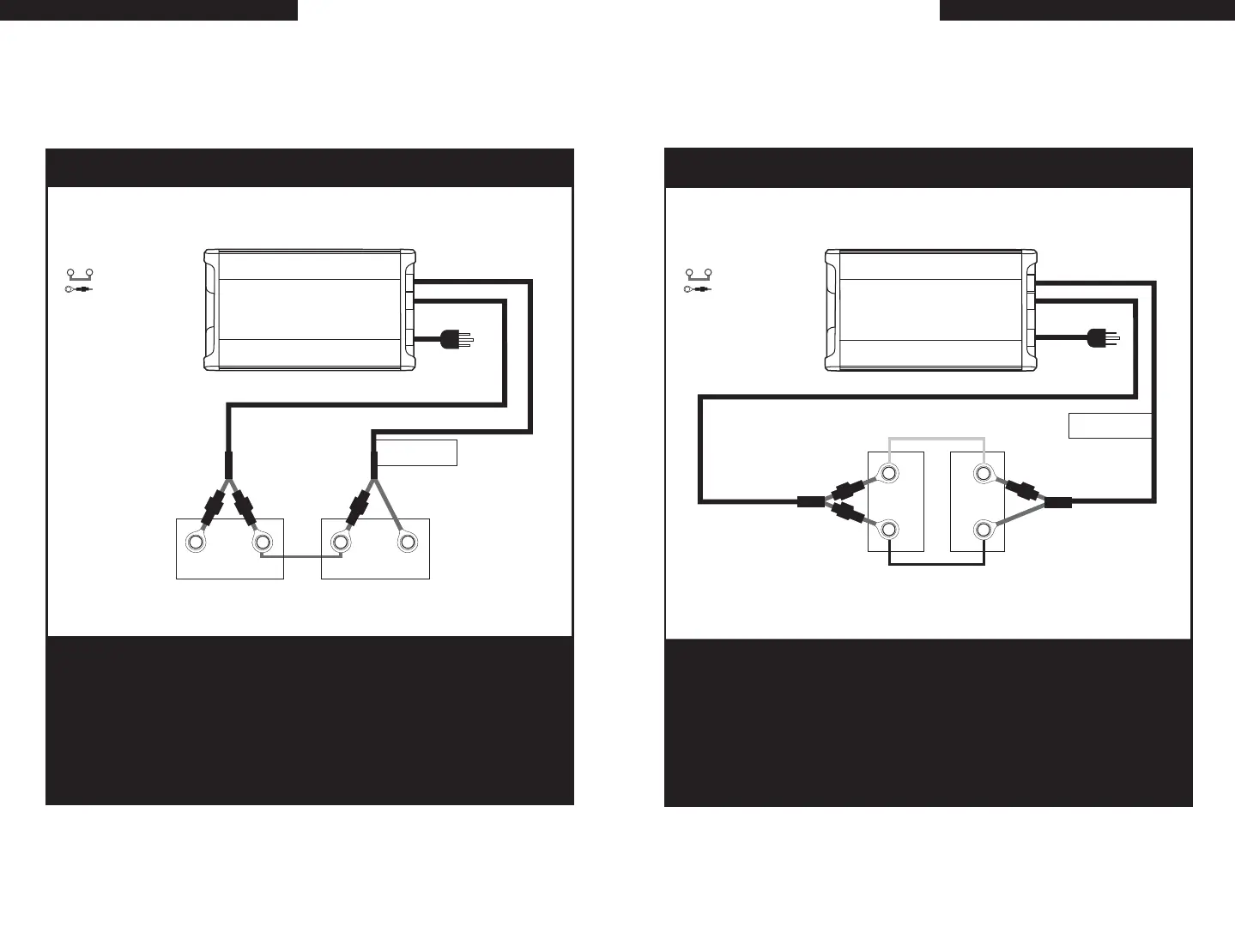

Fig. 2 ChargePro
™
4/4, 5/5 and 10/10 Dual Bank Charger for 2 12V Batteries
Indicates Jumper Series
Note:
Indicates Fuse
Top View
of Battery
red black red black
++
__
Cable 1
Bat 1Bat 2
Cable 2
For Engine Battery
Use Cable 1
Important: The pair of red and black wires in 1 cable jacket MUST GO TO THE SAME 12 VDC battery.
When connecting each jacketed battery charger cable, make sure it is connected
to only one 12 VDC battery and observe the polarity and color of all connections:
Red Wire = + (Positive) Battery connection
Black Wire =
-
(Negative) Battery connection
The black wire can never be connected to a terminal with red wires. Only black.
ChargePro
™
Dual Bank Charger
16
TYPICAL WIRING
Fig. 3 ChargePro
™
4/4, 5/5 and 10/10 Dual Bank Charger for 2 12V Batteries
Dedicated 12 VDC Parallel Trolling Motor or House Configuration
Installation
Important: The pair of red and black wires in 1 cable jacket MUST GO TO THE SAME 12 VDC battery.
When connecting each jacketed battery charger cable, make sure it is connected
to only one 12 VDC battery and observe the polarity and color of all connections:
Red Wire = + (Positive) Battery connection
Black Wire =
-
(Negative) Battery connection
The black wire can never be connected to a terminal with red wires. Only black.
Top View of Battery
+
_
+
_
red
black
red
black
Bat 1 Bat 2
Cable 1
Cable 2
Red Jumper
Black Jumper
For Engine Battery
Use Cable 1
ChargePro
™
Dual Bank Charger
Indicates Jumper Series
Note:
Indicates Fuse
