Guest ChargePro5/5/5 User Manual

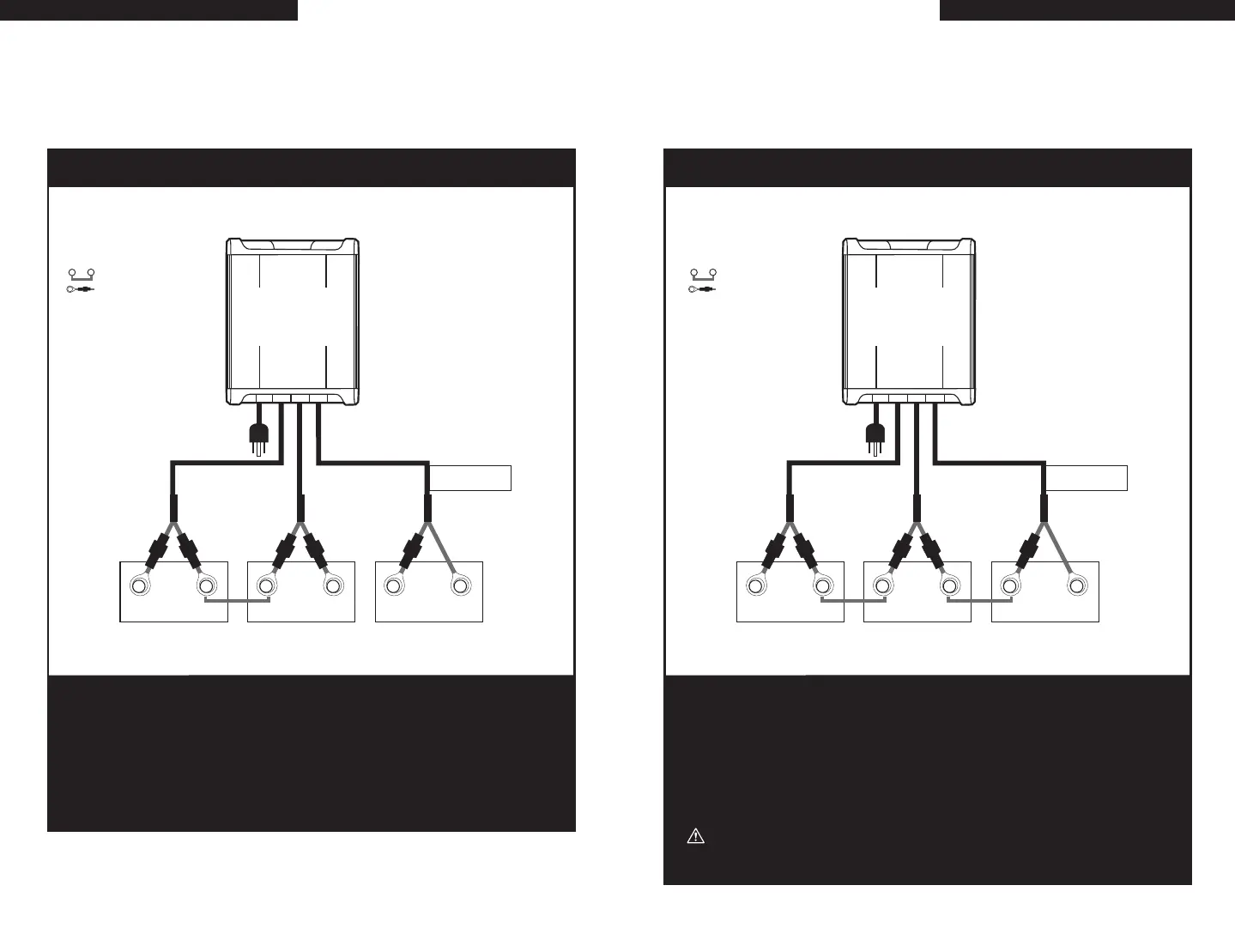

Three 12 VDC Batteries Connected with a (2)
Series Jumper for a 36 VDC Trolling Motor
Dedicated 36 VDC Trolling Motor Battery Configuration with (3) 12 VDC Batteries
Connected with (2) Series Jumpers
Fig. 7 ChargePro
™
5/5/5 and 10/10/10 Triple Bank Charger for 3 12V Batteries
Top View
of Battery
red black
+
_
red black red black
++
__
Cable 1
Bat 1Bat 2Bat 3
Cable 2
Cable
3
20
TYPICAL WIRING
For Engine Battery
Use Cable 1
Indicates Jumper Series
Note:
Indicates Fuse
Installation
Important: The pair of red and black wires in 1 cable jacket MUST GO TO THE SAME 12 VDC battery.
When connecting each jacketed battery charger cable, make sure it is connected
to only one 12 VDC battery and observe the polarity and color of all connections:
Red Wire = + (Positive) Battery connection
Black Wire =
-
(Negative) Battery connection
The black wire can never be connected to a terminal with red wires. Only black.
DANGER: RISK OF ELECTRIC SHOCK.
Do not touch uninsulated portion of output connector or uninsulated battery terminal
if 3 or more batteries are connected in series.
ChargePro
™
Triple Bank
Charger
TYPICAL WIRING
19
Two 12 VDC Batteries Connected with a
Series Jumper for a 24 VDC Trolling Motor
24 VDC Trolling Motor or House Battery Configuration with (2) 12 VDC Batteries
Connected with a Series Jumper Plus Dedicated 12 VDC Engine Start Battery
Fig. 6 ChargePro
™
5/5/5 and 10/10/10 Triple Bank Charger for 3 12V Batteries
Top View
of Battery
red black
+
_
red black red black
++
__
Cable 1
Bat 1Bat 2Bat 3
Cable 2
Cable
3
12 VDC Engine
Crank Battery
For Engine Battery
Use Cable 1
Indicates Jumper Series
Note:
Indicates Fuse
Installation
Important: The pair of red and black wires in 1 cable jacket MUST GO TO THE SAME 12 VDC battery.
When connecting each jacketed battery charger cable, make sure it is connected
to only one 12 VDC battery and observe the polarity and color of all connections:
Red Wire = + (Positive) Battery connection
Black Wire =
-
(Negative) Battery connection
The black wire can never be connected to a terminal with red wires. Only black.
ChargePro
™
Triple Bank
Charger
