2A-27-70: Spoiler System:
1. General Description:
The spoiler system for the Gulfstream V assists the flight crew in maintaining roll
control of the aircraft (as flight spoilers). They also dump lift and help slow the
aircraft in flight (as speed brakes), and reduce lift and increase braking
effectiveness on the ground (as ground spoilers).
The aircraft has three spoilers on the upper trailing edge of each wing (from
inboard to outboard): a ground spoiler, inboard flight spoiler and outboard flight
spoiler. The spoilers are manually and electrically operated, hydraulically
powered, and mechanically actuated. They are bonded composite panels hinged
to open forward when extended and close aft when retracted. Four hydraulic

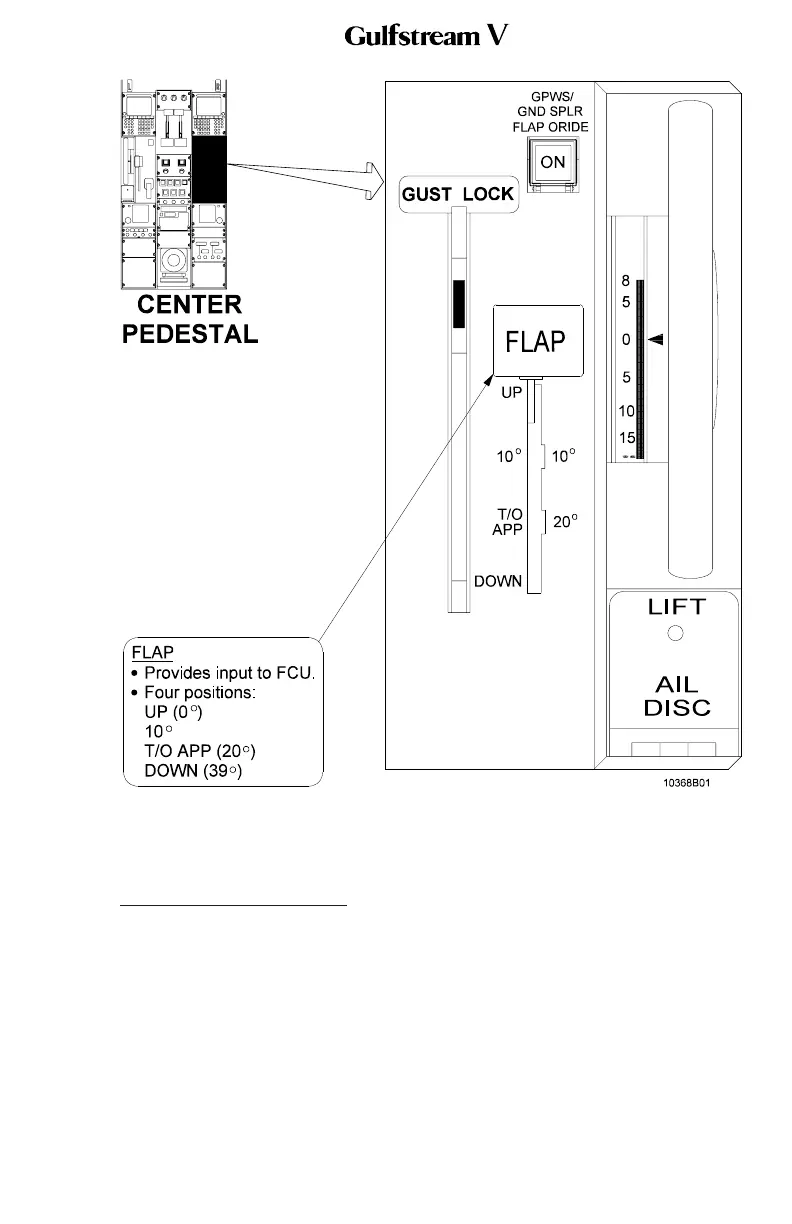

Flaps System Controls and Indications
Figure 12
OPERATING MANUAL
PRODUCTION AIRCRAFT SYSTEMS 2A-27-00
Page 35
May 22/01
