GUTMANN Vertica User Manual

en
Gas Stoves
Load of one cooking area max. 3.0 kW
Load of all cooking areas max. 8.3 kW
Load of the oven max. 3.9 kW
Gas Cooktops
Load of one cooking area max. 3.9 kW
Load of all cooking areas max. 11.3 kW
Subject to technical changes!
Tower Holder
Connection
for Hose
Schlauch
Wall Fastener

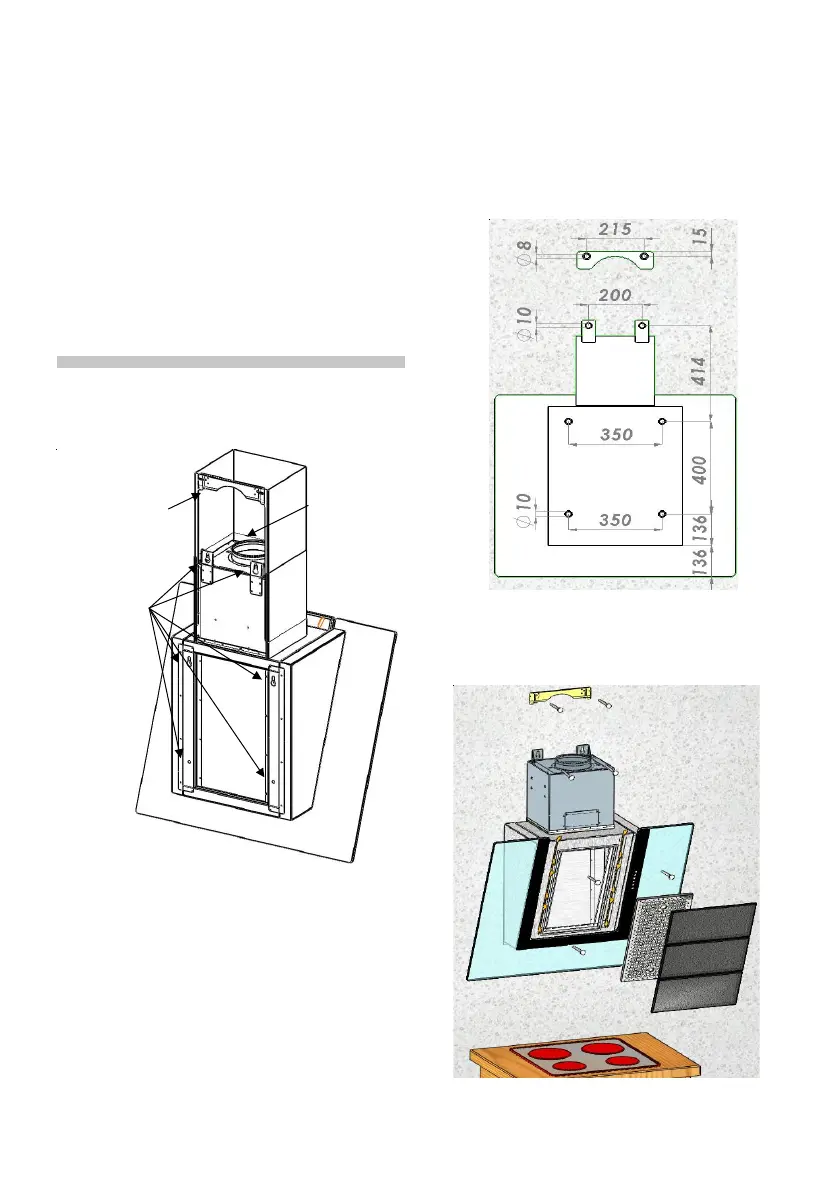

Installation Instructions
Wall Hood
1. (For exhaust operation) Prepare a suitable
exhaust airflow in the wall/ceiling.
2. Determine positions for the following
attachment holes using the dimensions
provided. Missing dimensions are dependent
on the model and must be measured directly
from the hood. Note the minimum distance
between cooking areas and the underside of
the exhaust hood.
Bore 2 holes (Ø6mm) for hanging the upper
tower (tower angle bracket).
Bore 4 holes (Ø10mm) for the attachment of
the exhaust hood.
Please be certain to center the exhaust hood
over the cooking area.
3. After boring the holes, insert suitable screw
anchors.

GUTMANN Vertica Specifications

General

Brand	GUTMANN
Model	Vertica
Category	Ventilation Hood
Language	English
