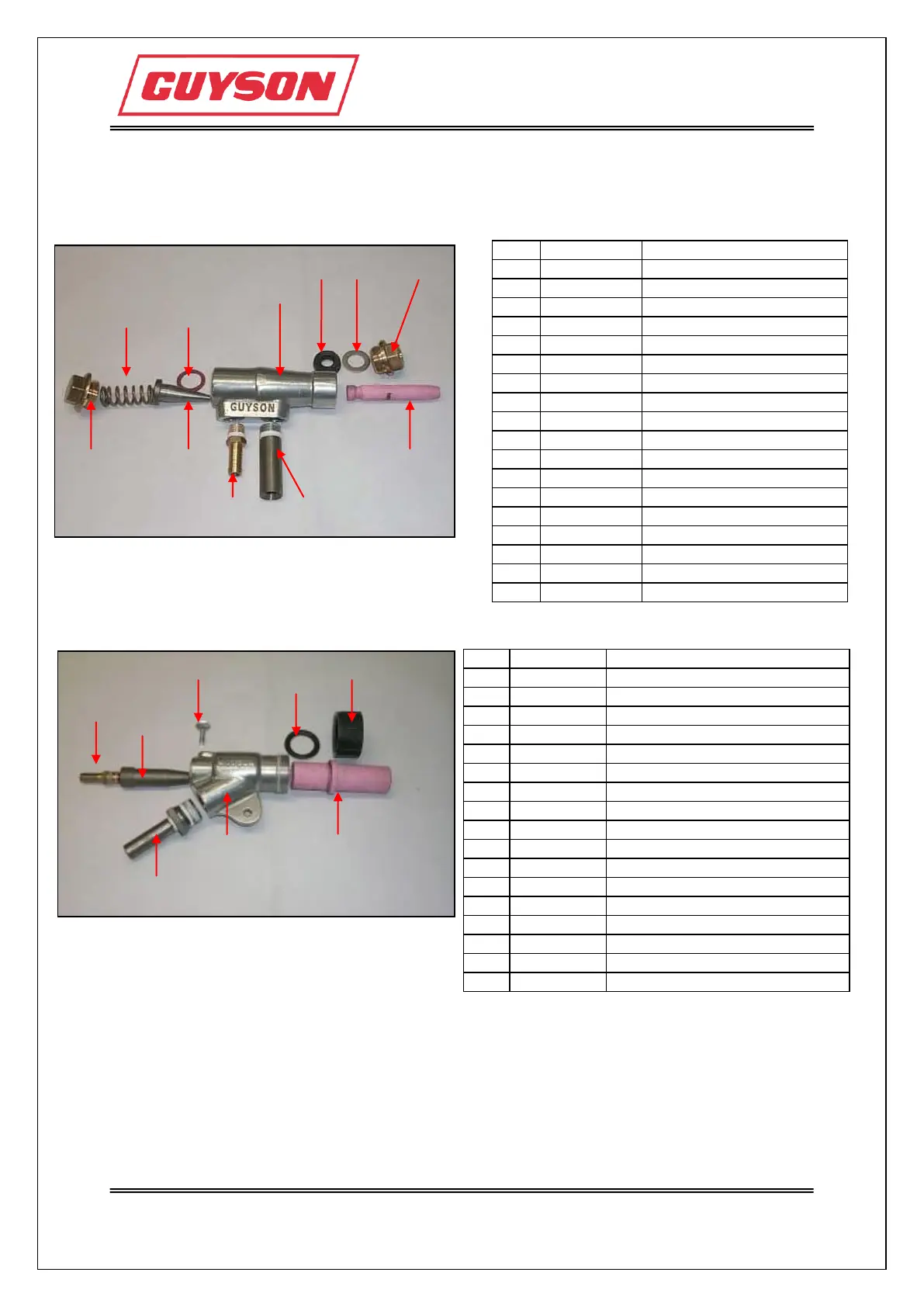

7.1.5 Blast nozzles
400 Blast gun
900 Blast gun
9
8
10
6
11
2
3
4
5
1
7
8
5
6
7
1
2
4
3
Pos
Item code
Description
1
900 Gun body
2
D2BA0006
9.5mm Ceramic nozzle
D2BA0007
12.7mm Ceramic nozzle
D2BA0009
9.5mm Boron nozzle
D2BA0010
12.7mm Boron nozzle
3
P1WS0039
Nozzle washer
4
D2AA0009
Nozzle locknut
D1AA0004
3.2mm Airjet
D1AA0005
4.0mm Airjet
5
D1AA0006
4.8mm Airjet
D1AA0007
6.4mm Airjet
D1AA0012
3.2mm Tungsten sleeved airjet
D1AA0011
4.0mm Tungsten sleeved airjet
D1AA0008
4.8mm Tungsten sleeved airjet
6
P1TH0189
Thumbscrew
7
P4CG0009
Media entry 16mm Hose
8
P4CG0001
¼” BSP Hosetail x 10mm
Pos
Item code
Description
1
400 Gun body
2
D2BA0001
6.4mm Ceramic nozzle
D2BA0002
8.0mm Ceramic nozzle
D2BA0004
6.4mm Tungsten nozzle
D2BA0005
8.0mm Tungsten nozzle
3
D2AA0007
Nozzle locknut
4
P1WS0038
Nozzle washer
5
P2GT0012
Nozzle grommet
D1AA0000
2.0mm Airjet
D1AA0001
2.4mm Airjet
6
D1AA0002
2.8mm Airjet
D1AA0003
3.3mm Airjet
7
P1WS0037
Airjet gasket
8
P2SG0000
Airjet coil spring
9
D2AA0008
Top nut
10
P4CG0001
¼” Hosetail x 10mm
11
P4CG0002
Media entry 3/8” x 16mm
P4CG0006
Media entry 3/8” x 10mm
