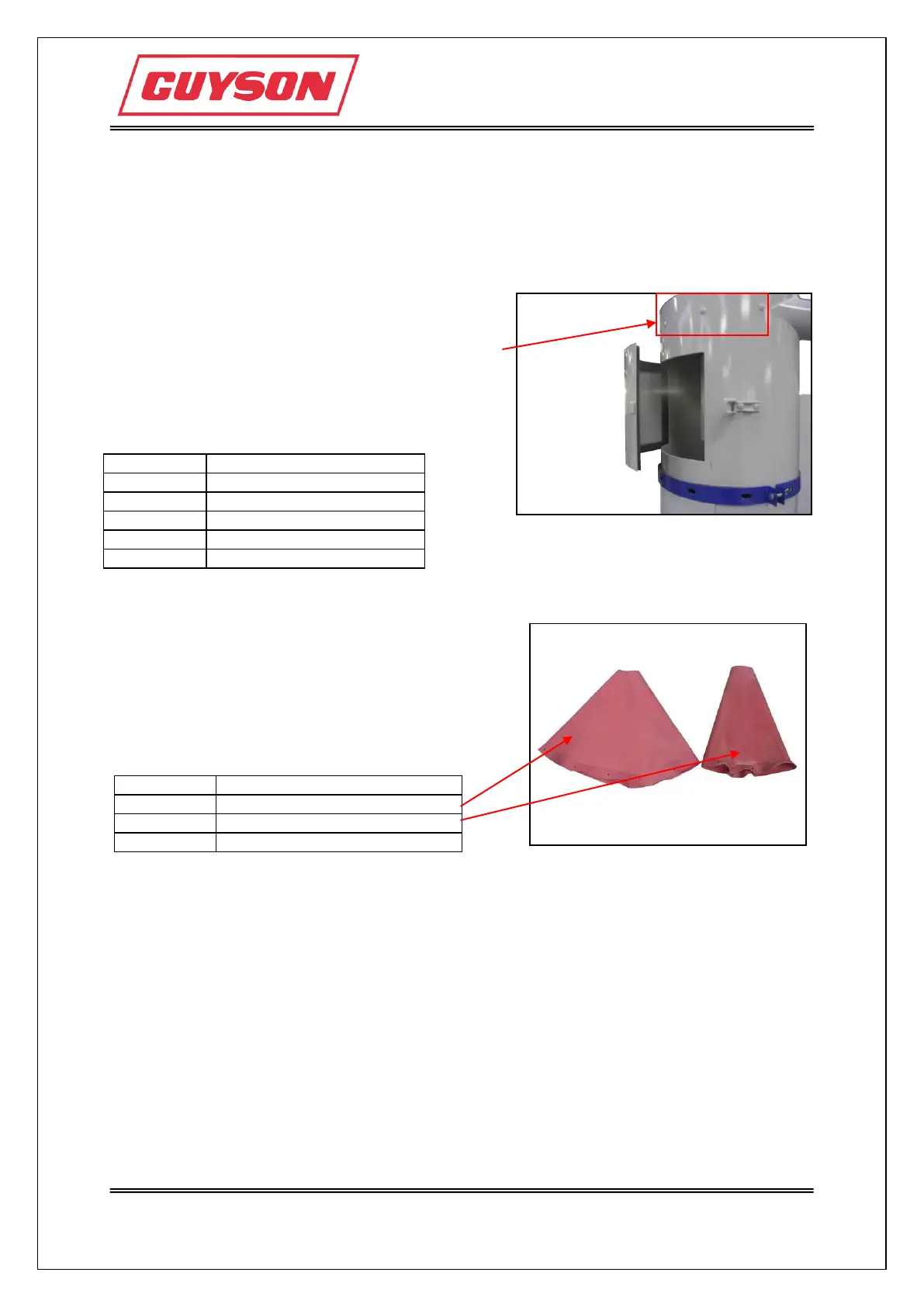

7.2.2 Cyclone
Cyclones will either have a PU lining or a wear plate fitted depending on the specification ordered.
The wear plate should be inspected and replaced when worn thin. The PU lining cannot be relined
and a new cyclone body will be required when it has been worn away.
7.2.2.1 Replacing the wear plate
 Open the top door
 Remove the 3 bolts while holding on to the wear
plate to stop it falling off
 Replace wear plate and secure it in position with
the 3 bolts
Item code
Description
E1AA2454
75/16 Body wear plate
E1AA2711
CY600/12 Body wear plate
E1AA2713
CY600/12 Entry wear plate
E1AA1611
CY600/16 Body wear plate
E1AA1613
CY600/16 Entry wear plate
7.2.3 Sleeves/Gauntlets
If the sleeves or gauntlets have holes in them or have
split then:
 this allows noise to escape the cabinet more
easily
 media may be able to exit the cabinet
Item code
Description
Y1AA0024
Armhole sleeve large
Y1AA0011
Armhole sleeve 3 corner
Y1AA0017
Gauntlets
