This document is a user manual for a 3-piece wicker set, model HW64402, which includes two chairs and a coffee table. The manual provides instructions for assembly, identifies the components and hardware, and offers guidance on care and maintenance.

Function Description:

The 3-piece wicker set is designed for outdoor use, providing seating and a surface for drinks or small items. It consists of two single chairs and one coffee table, offering a complete patio or garden furniture solution. The chairs are designed for individual seating, while the table serves as a central point for convenience.

Important Technical Specifications:

Chair Load Capacity: Each chair has a maximum load capacity of 250 lbs. It is crucial not to exceed this weight to prevent instability and potential injuries.
Coffee Table Load Capacity: The coffee table has a maximum load capacity of 25 lbs. Exceeding this limit can also lead to instability and damage.
Components:
- Chairs: Each chair consists of a left arm (x2), a right arm (x2), a back (x2), a seat (x2), a seat cushion (x2), and a back cushion (x2).
- Coffee Table: The coffee table consists of a table top (x1) and table legs (x2).
Hardware:
- For Chairs:
  - M6 x 15mm Bolts (G): 4 pieces
  - M6 x 25mm Bolts (H): 4 pieces
  - M6 x 35mm Bolts (I): 12 pieces
  - M6 Washers (K): 20 pieces
  - Adjustable Levellers (M): 8 pieces
  - Allen Wrench (L): 1 piece (4 x 4 size)
- For Coffee Table:
  - M6 x 15mm Bolts (G): 4 pieces
  - M6 x 55mm Bolts (J): 4 pieces
  - M6 Washers (K): 8 pieces
  - Allen Wrench (L): 1 piece (4 x 4 size)

Usage Features:

Assembly Process:
- General Advice: Before starting, users are advised to read each step carefully, ensure all parts are included by checking labels or stamps on raw edges, work in a spacious area (preferably on a carpet) close to where the unit will be used, and use hand tools instead of power tools to avoid scratches or damage.
- Chair Assembly:
  - Step 1 (Levellers): Insert adjustable levellers (M) into the bottom of each arm (A and B) by turning clockwise until secure. Adjust height as desired.

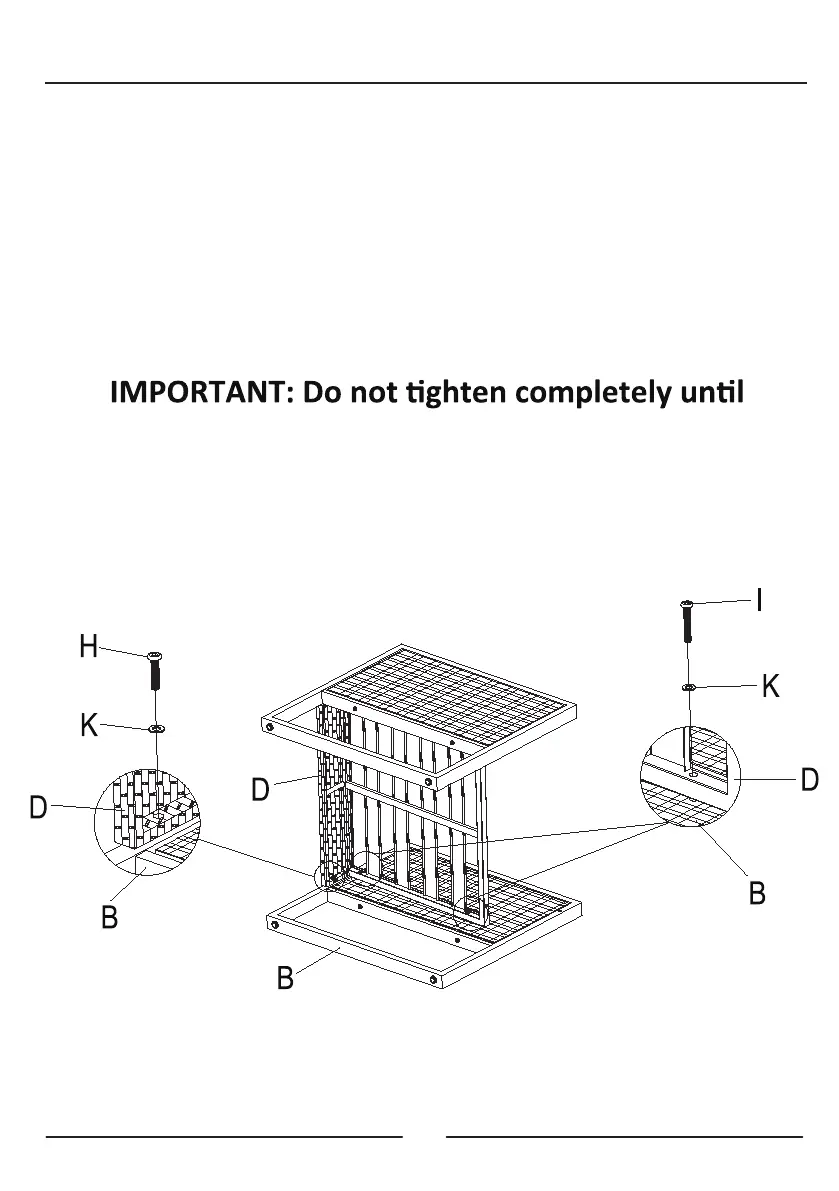

  - Step 2 (Seat to Arm): Attach the seat (D) to the arm (B) by inserting bolts (H & I) with washers (K) through pre-drilled holes on the seat into pre-welded nuts on the arm. This step is repeated for the other side arm (A). It is crucial not to tighten completely until assembly is finished.
  - Step 3 (Back to Seat): Attach the back (C) to the seat (D) by inserting bolts (I) with washers (K).
  - Step 4 (Back to Arm): Attach the back (C) to the arm (A & B) by inserting bolts (G) with washers (K).
  - Step 5 (Final Tightening & Cushions): Tighten all bolts with the provided Allen wrench. Turn the chair to the upright position. Place the seat cushion (O) and back cushion (N) onto the chair seat. The chair is then ready for use.
- Coffee Table Assembly:
  - Step 1 (Legs to Top): Attach the table legs (F) to the table top (E) by inserting bolts (J & G) with washers (K).
  - Step 2 (Final Tightening): Tighten all bolts with the Allen wrench. Turn the table to the upright position. The coffee table is then ready for use.
Safety Warnings:
- Always adhere to the specified maximum load capacities for both chairs (250 lbs) and the coffee table (25 lbs). Exceeding these limits can cause instability and lead to injuries.

Maintenance Features:

Cleaning:
- Use a soft, clean cloth for dusting to avoid scratching the surface.
- Furniture polish is not necessary, but if used, test it first in an inconspicuous area.
- Avoid using solvents of any kind, as they can damage the finish.
- Never use water to clean the furniture, as it may cause damage to the finish.
- Liquid spills should be removed immediately by blotting gently with a soft, clean cloth. Avoid rubbing.
Structural Maintenance:
- Periodically check all bolts and screws and tighten them if necessary to ensure stability and safety.
Outdoor Protection:
- Protect outdoor furniture with a cover when not in use. Long-term sunlight exposure can damage the surface.
- Wood and metal frames can suffer damage when exposed to extreme temperatures and humidity.
Longevity:
- Proper care and cleaning, along with protection from environmental extremes, will extend the life of the furniture.
