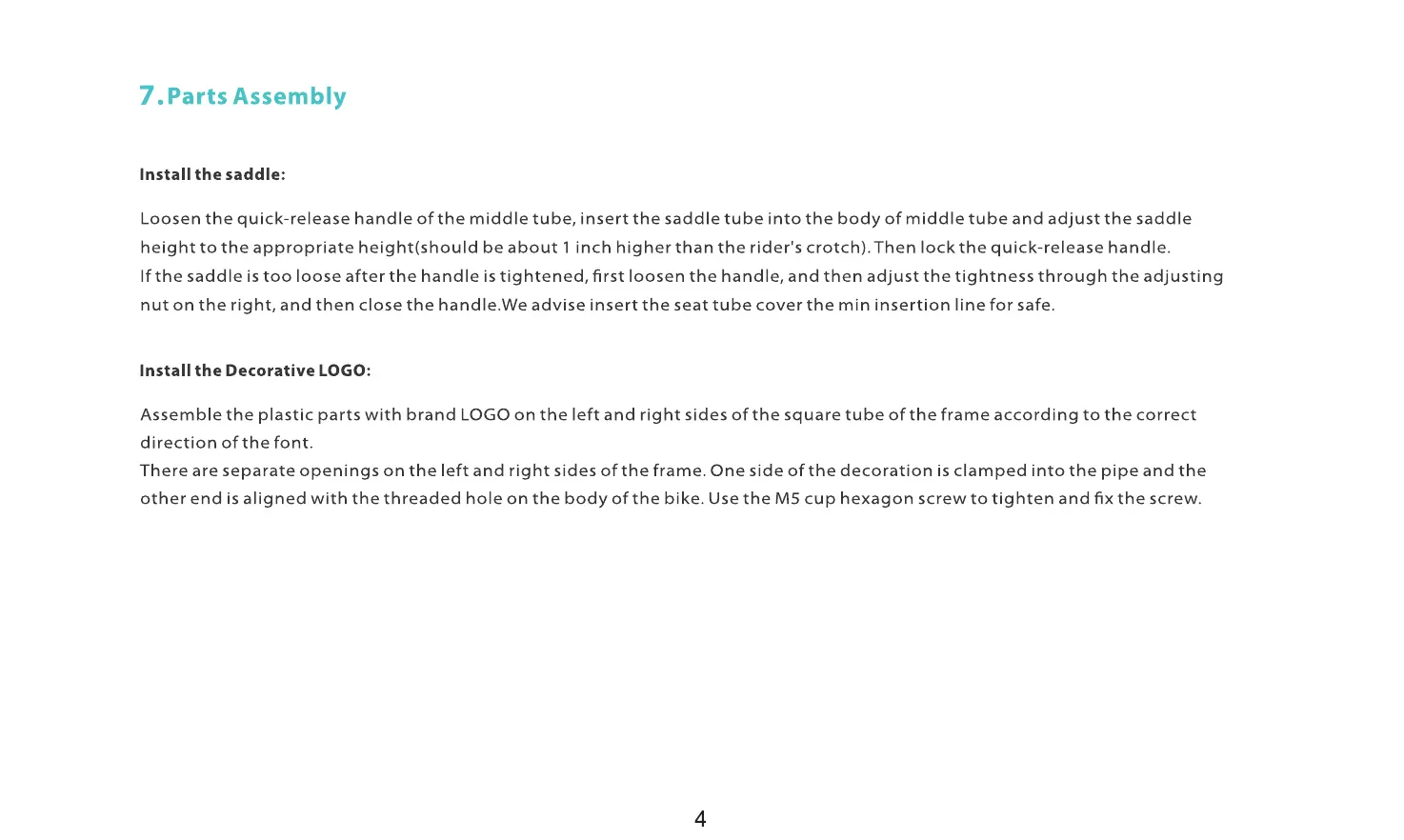

7. Parts Assembly
Install the saddle:
Loosen the quick-release handle of the middle tube, insert the saddle tube into the body of middle tube and adjust the saddle
height to the appropriate height(should be about 1 inch higher than the rider's crotch). Then lock the quick-release handle.
Ifthe saddle is too loose after the handle is tightened, first loosen the handle, and then adjust the tightness through the adjusting
nut on the right, and then close the handle.We advise insert the seat tube cover the min insertion line for safe.
Install the Decorative LOGO:
Assemble the plastic parts with brand LOGO on the left and right sides of the square tube of the frame according to the correct
direction of the font.
There are separate openings on the left and right sides of the frame. One side of the decoration is clamped into the pipe and the
other end is aligned with the threaded hole on the body of the bike. Use the M5 cup hexagon screw to tighten and fix the screw.
4
