H3C S6850-56HF

13

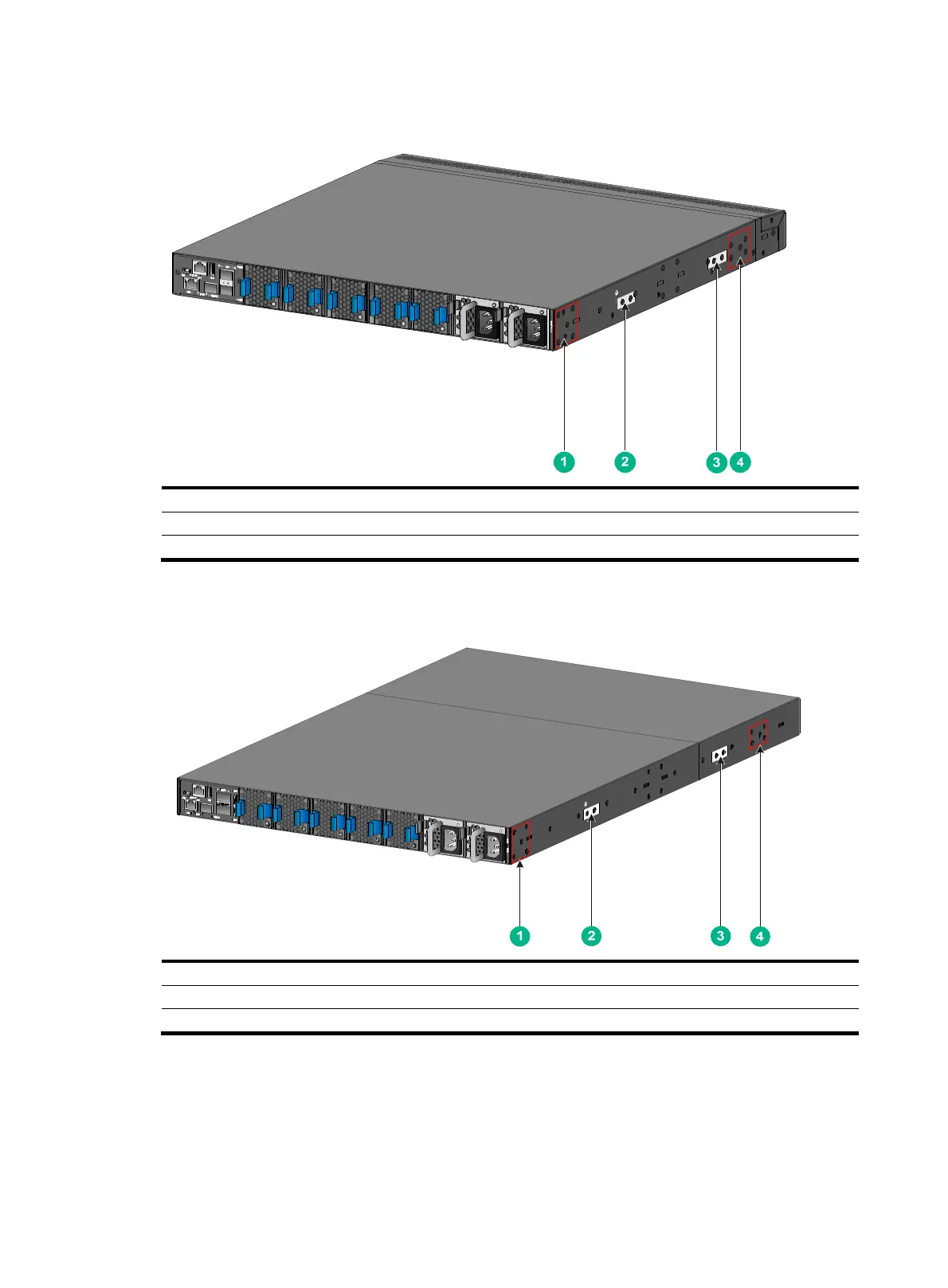

Figure 18 Mounting brackets and grounding cable installation positions on the S6850-56HF
switch
(1) Power module-side installation position for the mounting bracket
(2) Primary grounding point (3) Auxiliary grounding point
(4) Port-side installation position for the mounting bracket
Figure 19 Mounting brackets and grounding cable installation positions on the S6850-2C
switch
(1) Power module-side installation position for the mounting bracket
(2) Primary grounding point (3) Auxiliary grounding point
(4) Port-side installation position for the mounting bracket
