IMPORTANT:
• If you use long slide rails to rack-mount the S6850-56HF, make sure the front ends of the
long slide rails reach out of the chassis rails for a maximum of 20 mm (0.79 in). If you use
super-short slide rails to rack-mount the S6850-56HF, make sure the front ends of the
super-short slide rails reach inside the chassis rails for a minimum of 90 mm (3.54 in) after
installation.
• To rack-mount the S6850-2C and S9850-32H, make sure the front ends of the slide rails
reach out of the chassis rails for a minimum of 20 mm (0.79 in) after installation.
• To rack-mount the S9850-4C, make sure the front ends of the slide rails reach out of the
chassis rails for a minimum of 30 mm (1.18 in) after installation.
6. Another person uses user-supplied M6 screws to attach the mounting brackets to the rack
(recommended torque: 30 kgf-cm).

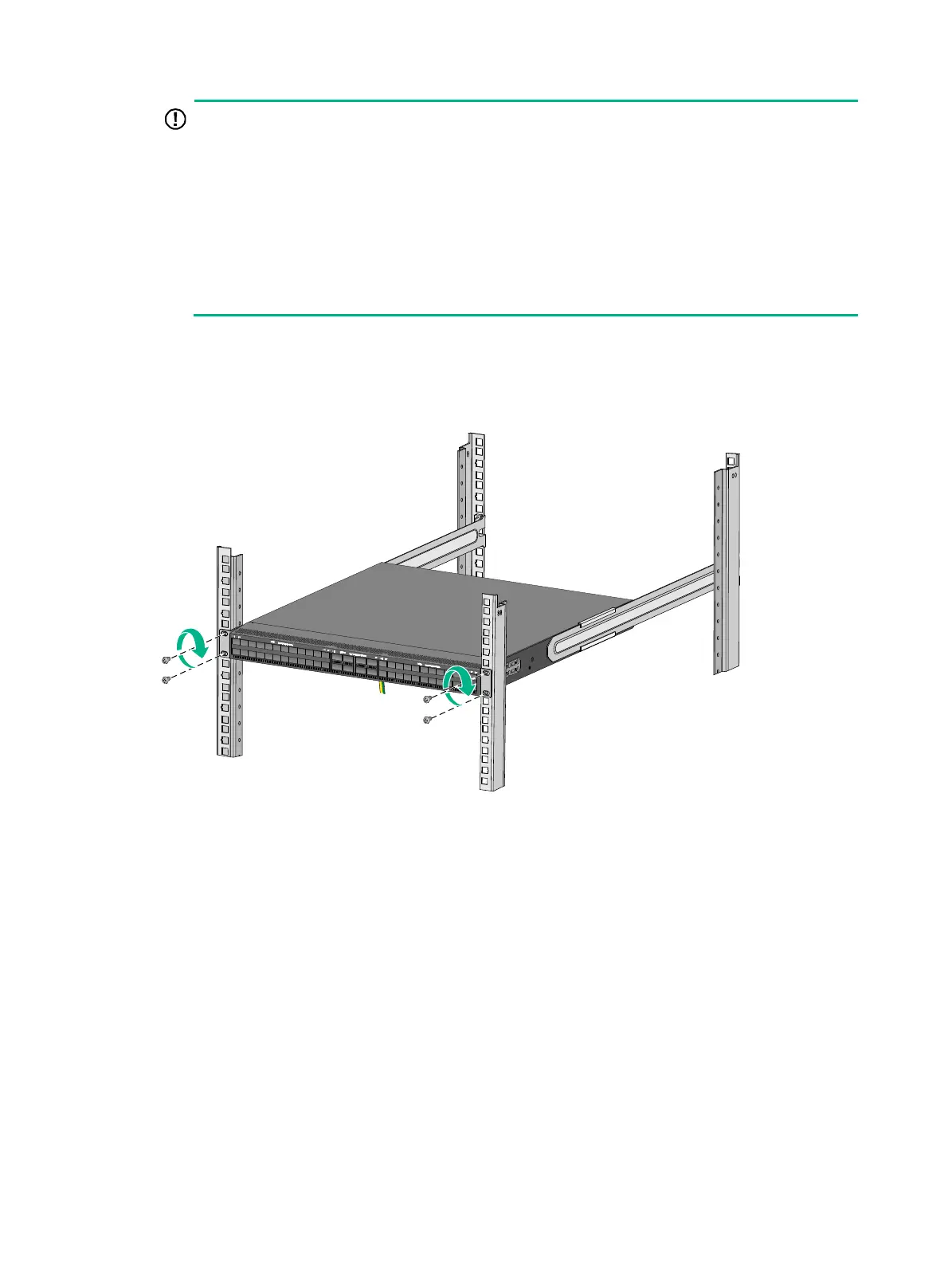

Figure 37 Mounting the S6850-56HF switch in the rack (port-side mounting position for the
mounting brackets)
