75

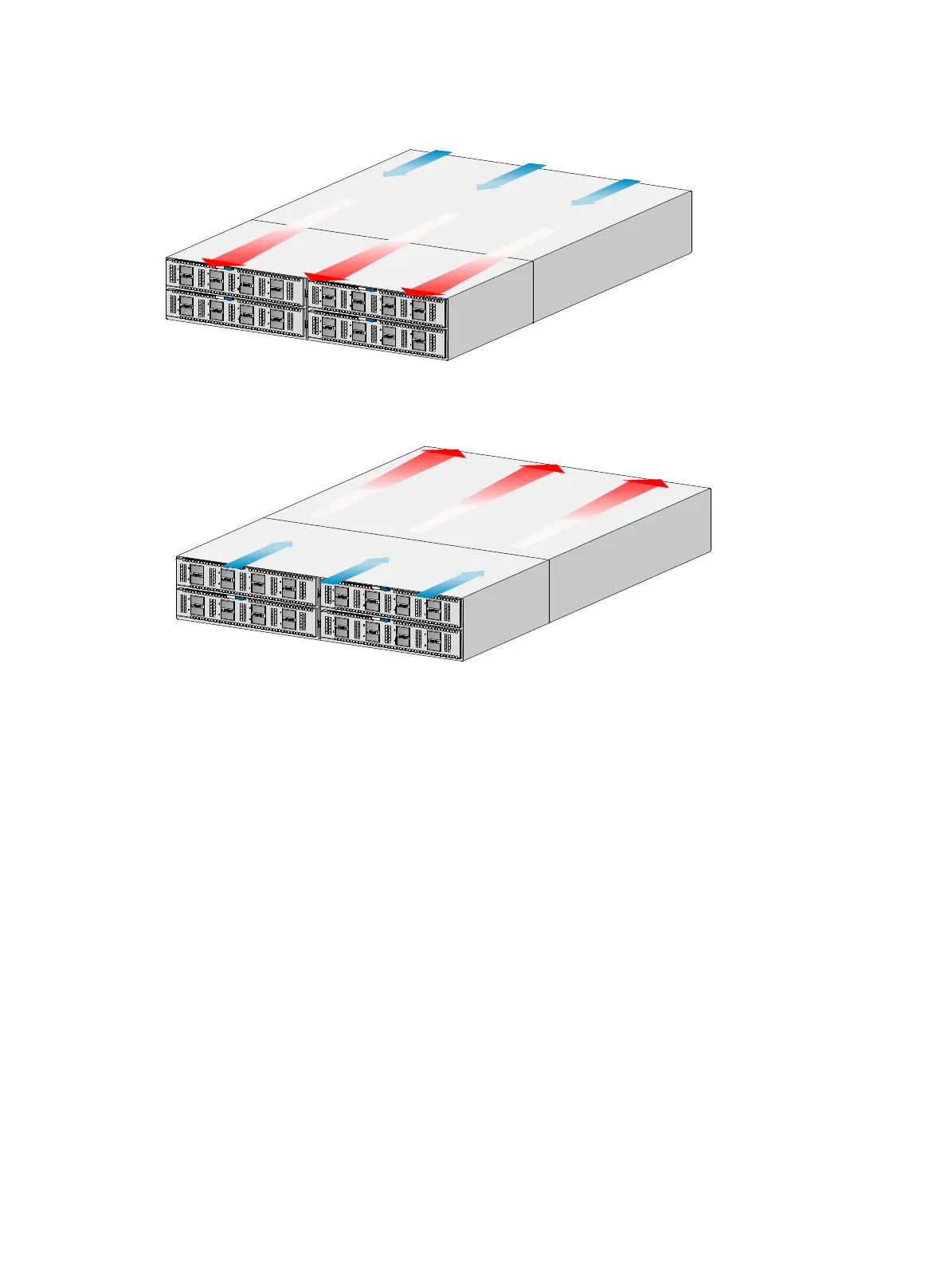

Figure 86 Airflow from the power module side to the port side through the S9850-4C chassis
(with LSWM1BFANSC fan trays)
Figure 87 Airflow from the port side to the power module side through the S9850-4C chassis
(with LSWM1BFANSCB fan trays)
