Appendix A Chassis views and technical
specifications
Chassis views
F1005/F1010
The F1005/F1010 firewall provides the following ports on the front panel:
• Eight 10/100/1000BASE-T autosensing Ethernet ports.
• Two bypass ports.
• Two combo interfaces.
• Two USB ports.
• One console port.
• One hard disk slot.

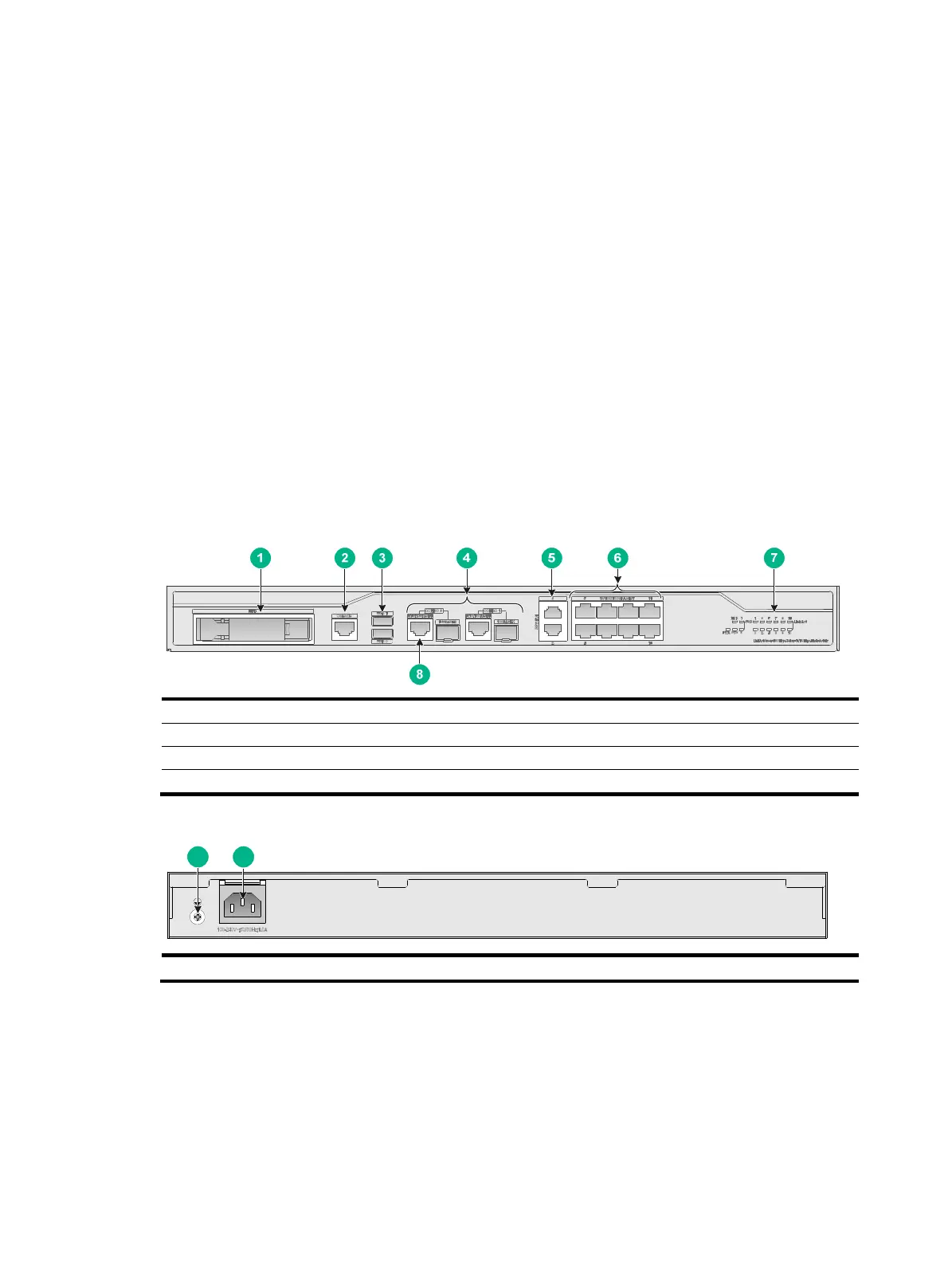

Figure 37 Front panel
(1) Hard disk slot (2) Console port
(3) USB ports (4) Combo interfaces
(5) Bypass ports (6) 10/100/1000BASE-T copper ports
(7) LEDs (8) Management Ethernet port GE1/0/0
Figure 38 Rear panel
(1) Grounding screw (2) Power receptacle
F1020
The F1020 firewall provides the following ports on the front panel:
• Sixteen 10/100/1000BASE-T autosensing Ethernet copper ports.
• Eight 1000BASE-X fiber ports.
• Two USB ports.
• One console port.
1 2
