Distance between the front and rear rack
Rear mounting bracket installation

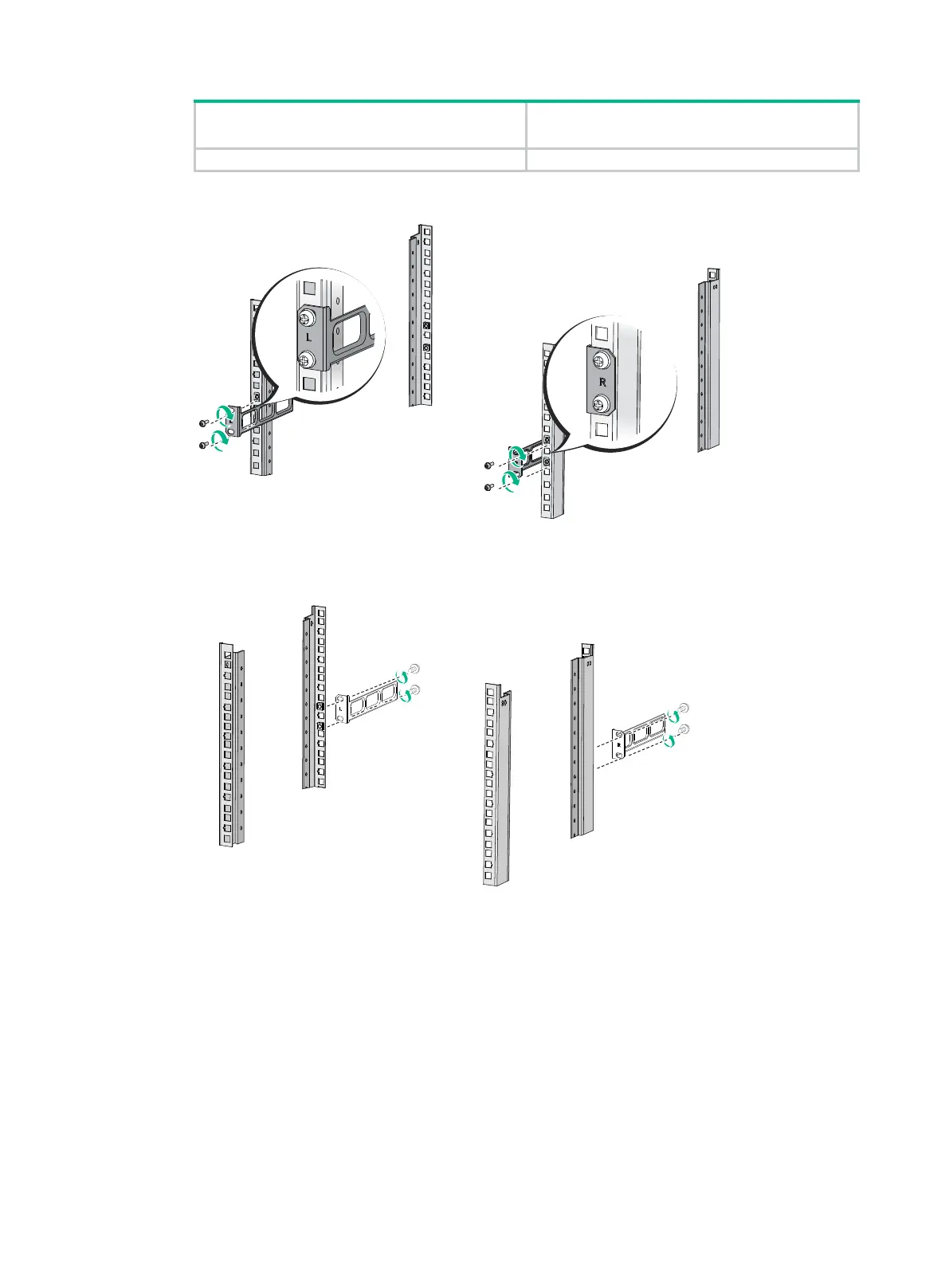

Figure2-4 Attaching the rear mounting brackets (with the wide flange inside the rack)
Figure2-5 Attaching the rear mounting brackets (with the wide flange outside the rack)
7. Mount the firewall in the rack. Use M6 screws to secure the mounting brackets to the front rack
posts and make sure the shoulder screws rest firmly on the upper edge of the rear mounting
brackets.
