10
96-0041 Rev U
July 2010
operaTion

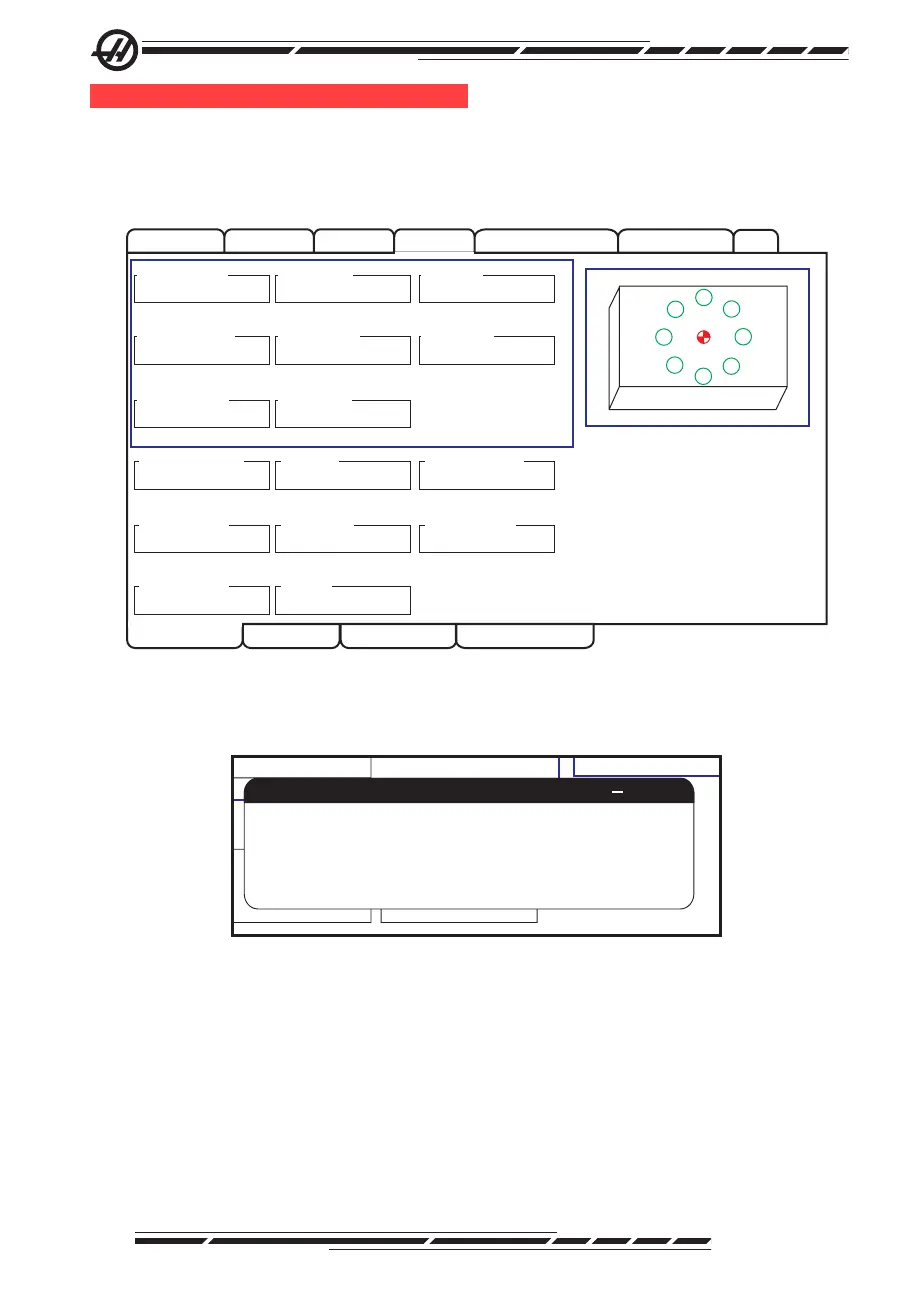

1. To access IPS, press MDI/DNC, then PROGRM/CONVRS.
2. When the recorder is available, a message appears in red in the lower right
corner:
MANUAL
SETUP FACE
DRILL POCKET MILLING ENGRAVING VQC
CENTER DRILL
CENTER DEPTH
CENTER PECK
DRILL TOOL
DRILL DEPTH
DRILL PECK
TAP TOOL
TAP DEPTH
0 00
0.0000 in 0.0000 in 0.0000 in
0.0000 in 0.0000 in
WRK ZERO OFST R PLANE NUM OF HOLES
X CENTER PT
Y CENTER PT
54
DIAMETER
ANGLE
CENTER HOLE
0.0000 in 0.0000 in
0.0000 in
0.000 deg
0.2000 in
00
0
BOLT CIRCLE BOLT LINE SINGLE HOLE
Press <CYCLE START>
to run in MDI or <F4>
to record output to a
program.
MULTIPLE HOLES
3. Press F4 to access the IPS recorder menu. Choose menu option 1 or 2 to
continue, or option 3 to cancel and return to IPS. F4 can also be used to return
to IPS from any point within IPS recorder.
0.0000 in
PLANE NUM OF HOLES
IAMETER
CENTER HOLE
0.0000 in
0.2000 in
00
0
Press <CYCLE
to run in MDI o
to record outpu
program.
IPS RECORDER F4 CANCEL
1. ) Select/Create Program
2. ) Output to current program
3. ) Cancel
IPS Recorder Menu
Menu Option 1: Select / Create Program
Select this menu option to choose an existing program in memory or to create
a new program into which the G-code will be inserted.
1. To create a new program, input the letter ‘O’ followed by the desired program
number and press the WRITE key. The new program is created, selected, and
displayed. Press the WRITE key once more to insert the IPS G-code into the
new program.
