Haban 402-E - Page 18

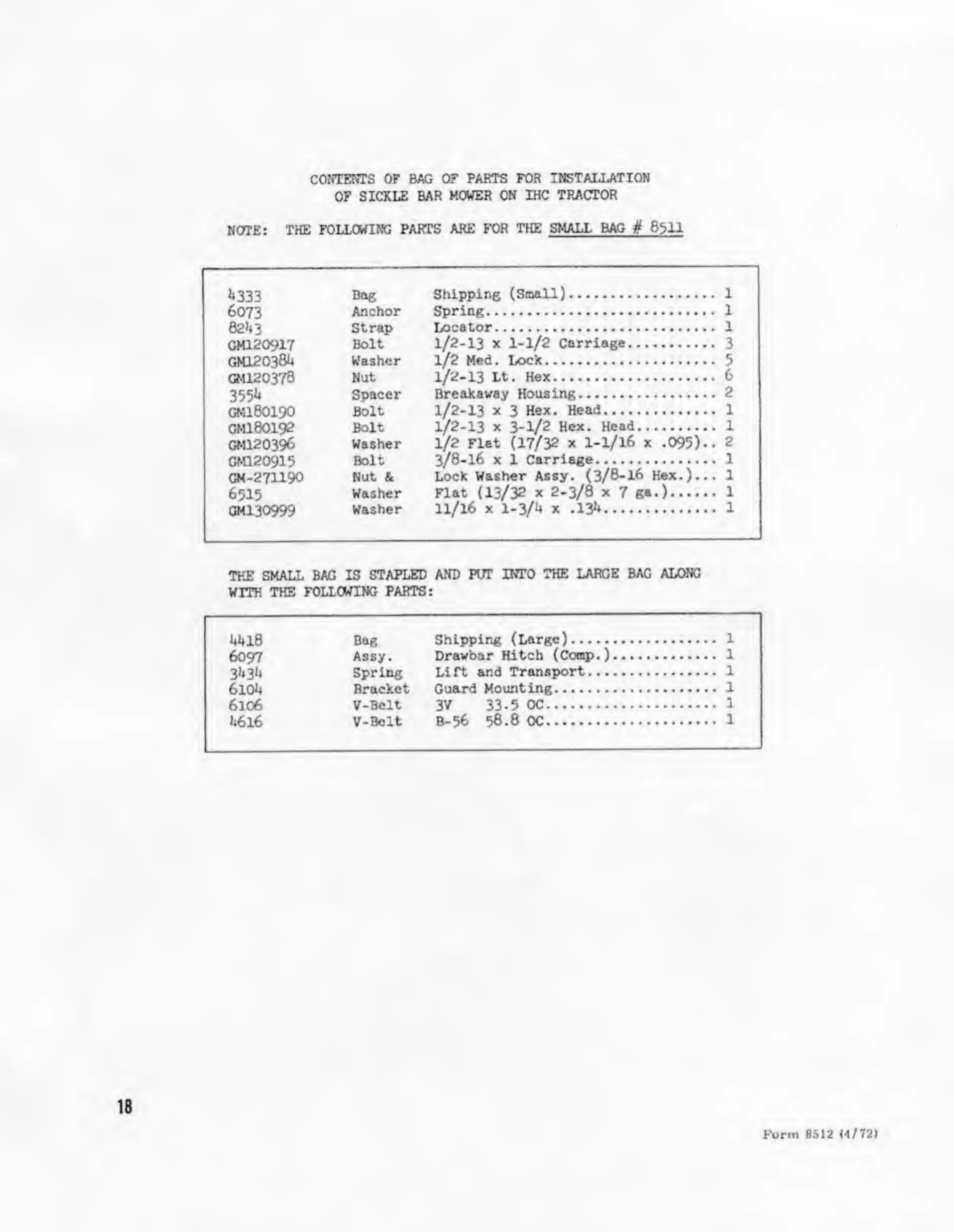

CONTENTS OF BAG OF PARTS FOR INSTALLATION
OF SICKLE BAR MOWER ON IHC TRACTOR
NOTE: THE FOLLOWING PARTS ARE FOR THE SMALL BAG # 6311
1*333 Bag Shipping (Snail). 1
6073 Anchor Spring. 1
82143 Strap Locator. 1
GM120917 Bolt 1/2-13 X 1-1/2 Carriage. 3
(^<1203814 Washer l/2 Med. Lock. 5
04120378 Nut 1/2-13 Lt. Hex. 6
355I1 Spacer Breakaway Housing.2
GMI80190 Bolt 1/2-13 X 3 Hex. Head. 1
0M18O192 Bolt 1/2-13 X 3-1/2 Hex. Head. 1
GMI20396 Washer 1/2 Flat (17/32 x I-I/I6 x .095).. 2
CMI20915 Bolt 3/8-16 X 1 Carriage.1
GM-271190 Nut & Lock Washer Assy. {3/8-16 Hex.)... 1
6515 washer Flat (13/32 x 2-3/8 x 7 ga.). 1
04130999 Washer II/16 x 1-3/1* x .13U. 1
THE SMALL BAG IS STAPLED AND POT INTO THE LARGE BAG ALOW
WITH THE FOLICWING PARTS:
41*18 Bag Shipping (Large). 1
6097 Assy. Drawbar Hitch (Comp.). 1
3434 Spring Lift and Transport.1
6l04 Bracket Guard Mounting.1
6106 V-Belt 3V 33.5 OC. 1
4616 V-Belt B-56 58.8 OC. 1
18
Form 8512 (4/72)
