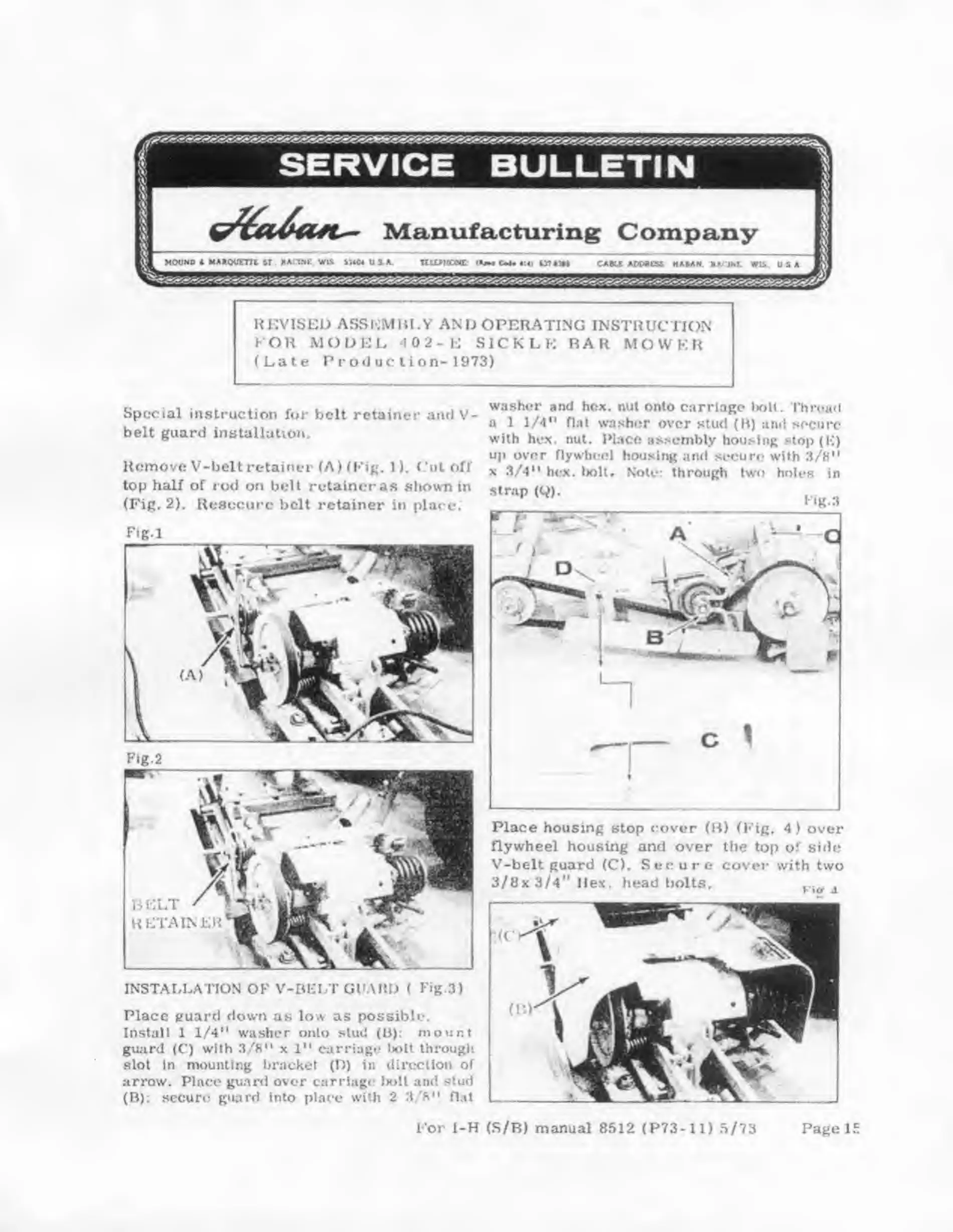

HKVISED ASRi:iVfliI.Y AND OPERATING INSl’RUCTION
KOH MODEL 402-E SICKLE BAR MOWER
(Late Pro<Jucilon-1973)
washer and hex. nut onto carriage ijoli. I'hruad
a 1 flat washor over stu<i (H) ami secure
with hex. nut. l^lace assembly housing stop (K)
up over flywh<'cl housing ami si'curr with 3/8**
X 3/4** hex. l>oU» Note; through two holes in
slrap (<^).
Special Instruction for belt retainer arid V
belt guard installution.
Uemove V-belt retainer (A) (l*’ig. 1). <’ut off
top half of rod on bell retainer as shown in
(Fig. 2). Uesccure belt retainer in plare.
Fig.l
Place housing stop <*ovor (B) (Eig, 4) over
flywheel housing and over the top of side
V-belt guard (C). Secure cover with two
3/8x3/4” Hex. head bolts. ,
IKSTALLA'J'ION OK V-IiKLT GUAKD ( Tig 3)
Place guard down as low as possible.
Install 1 1/4*' W'asher onto stud (B): mount
gu;ird (C) wUh 3/8*' x 1** ciirrlpge Iwll through
slot in mounting bracket (D) in tlirocUou of
arrow. Place guaixl over carriage Jxill ami stud
(B): secure guard Into p!a<*e with 2 3/8" flat
For 1-H (S/B) manual 8512 (P73-U) 5/73 Page 1
