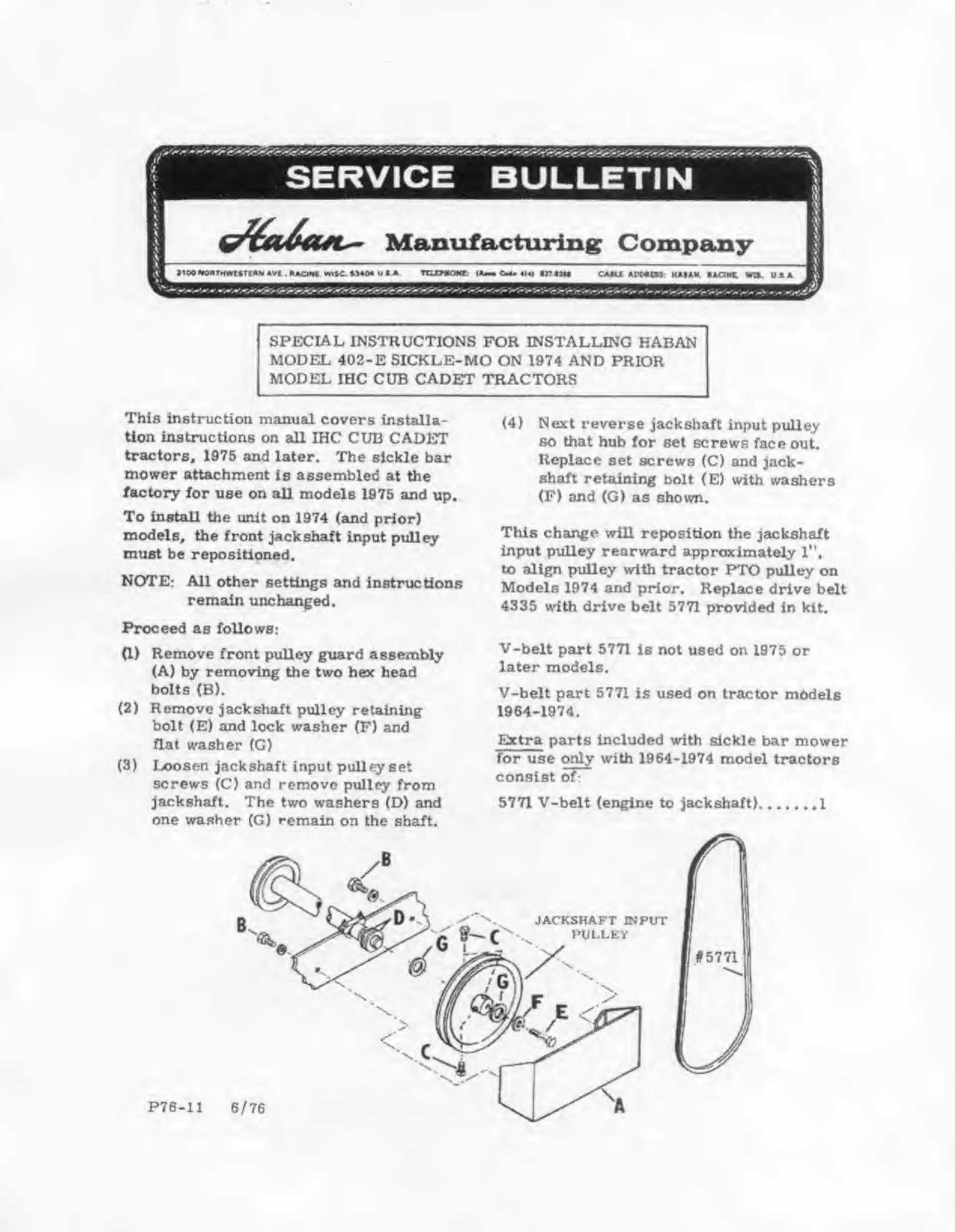

SPECIAL

INSTRUCTIONS

FOR

INSTALLING

HABAN

MODEL

402-E

SICKLE-MO

ON

1974

AND

PRIOR

MODEL

IHC

CUB

CADET

TRACTORS

This

instruction

memusl

covers

installa¬

tion

instructions

on

all

IHC

CUB

CADET

tractors,

1975

and

later*

The

sickle

bar

mower

attachment

Is

assembled

at

the

factoly

for

use

on

all

models

1975

and

up«

(4)

Next

reverse

jackshaft

input

pulley

so

that

hub

for

set

screws

face

out.

Replace

set

screws

(C)

and

jack-

shaft

retaining

bolt

(E)

with

washers

(F)

and

(G)

as

shown.

To

install

the

unit

on

1974

(and

prior)

models,

the

front

jackshaft

input

pulley

must

be

repositioned.

NOTE:

All

other

settings

and

instructioDs

remain

unchanged.

This

change

will

reposition

the

jackshaft

input

pulley

rearward

approximately

1",

to

align

pulley

with

tractor

PTO

pulley

on

Models

1974

and

prior.

Replace

drive

belt

4335

with

drive

belt

5771

provided

In

kit.

Proceed

as

follows:

(1)

Remove

front

pulley

guard

assembly

(A)

by

removing

the

two

hex

head

bolts

(B).

(2)

Remove

jackshaft

pulley

retaining

bolt

(E)

and

lock

washer

(F)

and

flat

washer

(G)

(3)

Loosen

jackshaft

input

pulley

set

screws

(C)

and

remove

pulley

from

jackshaft.

The

two

washers

(D)

and

one

washer

(G)

remain

on

the

shaft.

V-belt

part

5771

is

not

used

on

1975

or

later

models.

V-belt

part

5771

is

used

on

tractor

models

1964-1974.

£^tra

parts

Included

with

sickle

bar

mower

for

use

only

with

1964-1974

model

tractors

consist

of:

5771

V-belt

(engine

to

jackshaft)..

.1
