The air exhaust duct mounting method
1) Fix the square end of the exhaust dust to the exhaust terminal of the unit
2) Put the other end (discharge) to the nearest window. Attention: the length
of the air exhaust is between 500mm-1500mm. We suggest using the min.
length when working.
When mounting, try to keep the air exhaust horizontal. Do not enlarge or
connect the other discharge as it will cause malfunction.

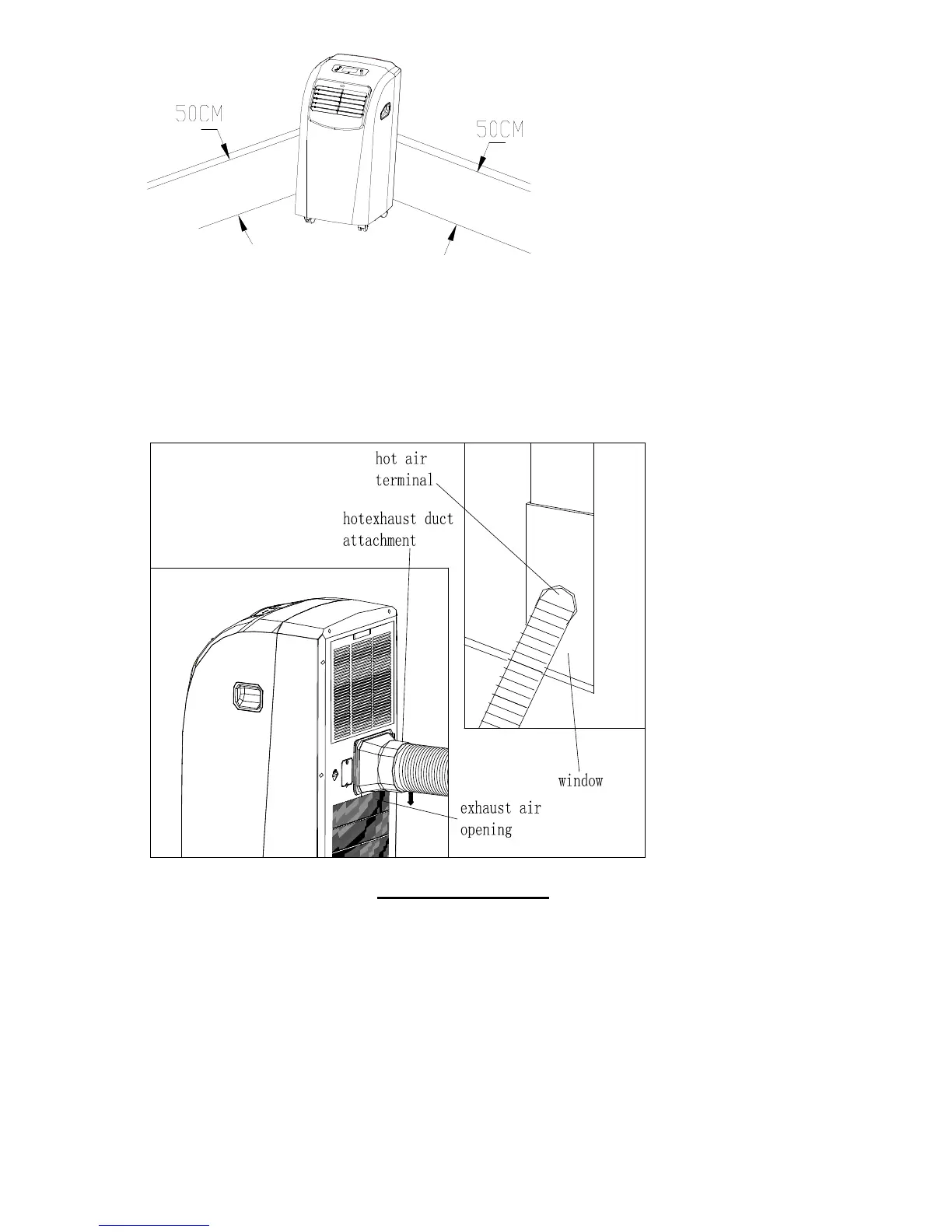

INSTALLATION
Correct mounting shown below (if mounting in the wall, the height of the hole
should be 40cm-130cm(16inch-51inch)
